Fig. 23 Calib. Code 3-14C-R0 Federal
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

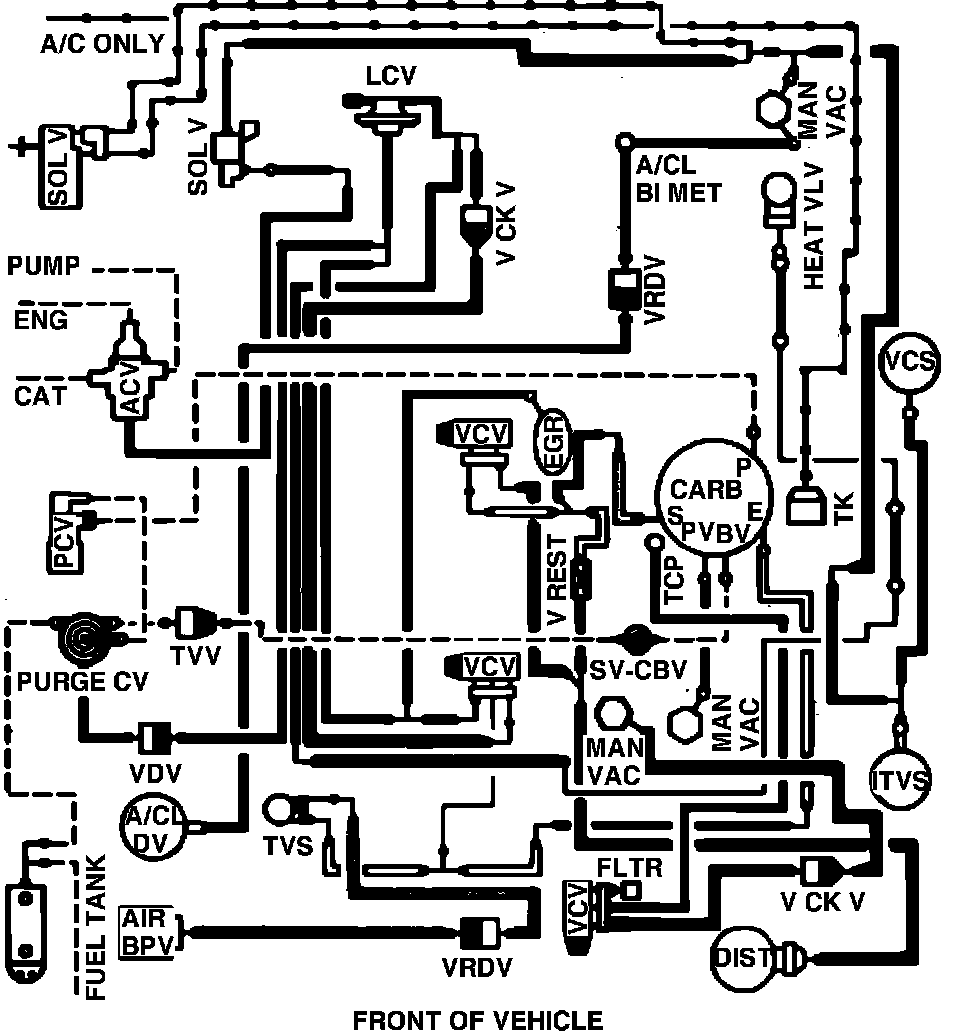

Fig. 23 Calib. Code 3-14C-R0 Federal
Vacuum hose routing:
