Compression Check

AllData Editors Note - Ford does not provide a cranking pressure specification, only an acceptable range.

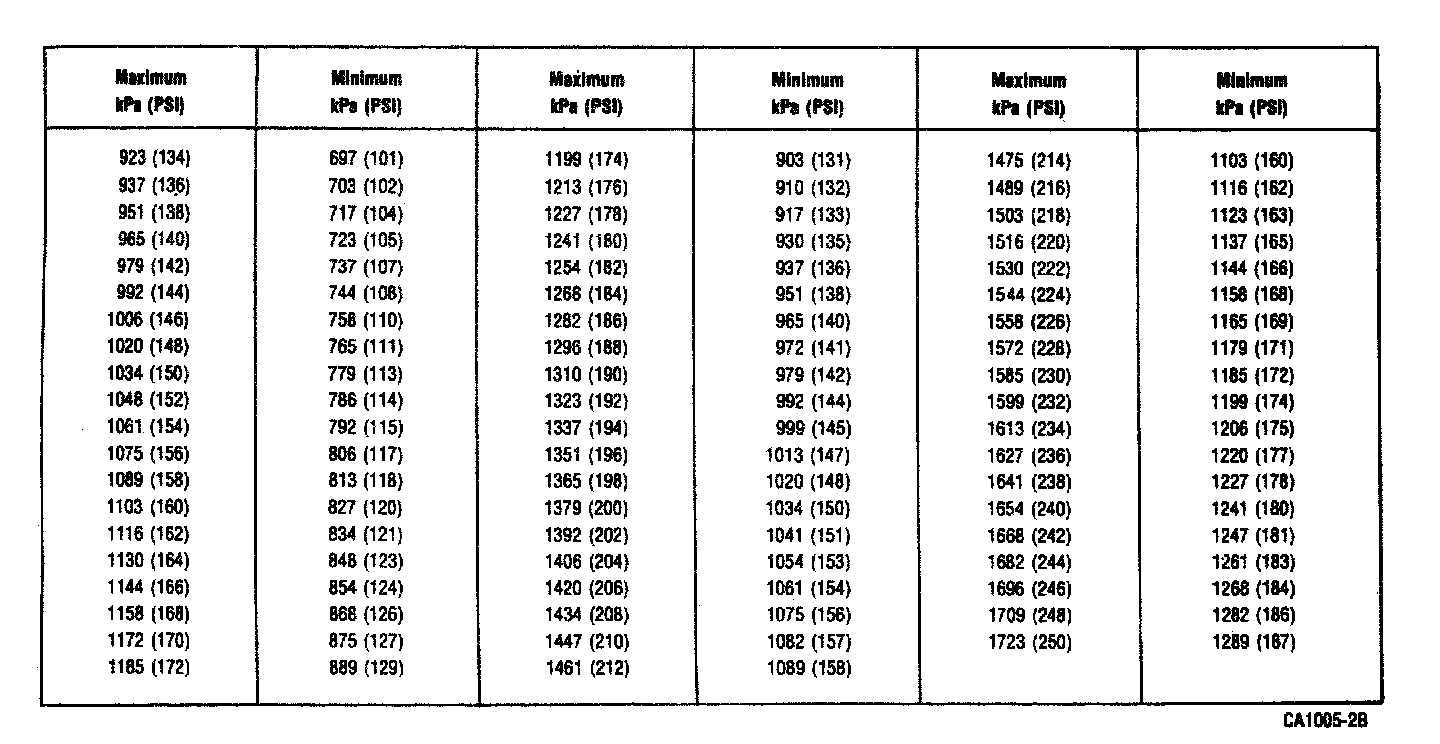

Compression Test Pressure Limit Chart:
