Air Flow Meter/Sensor: Locations

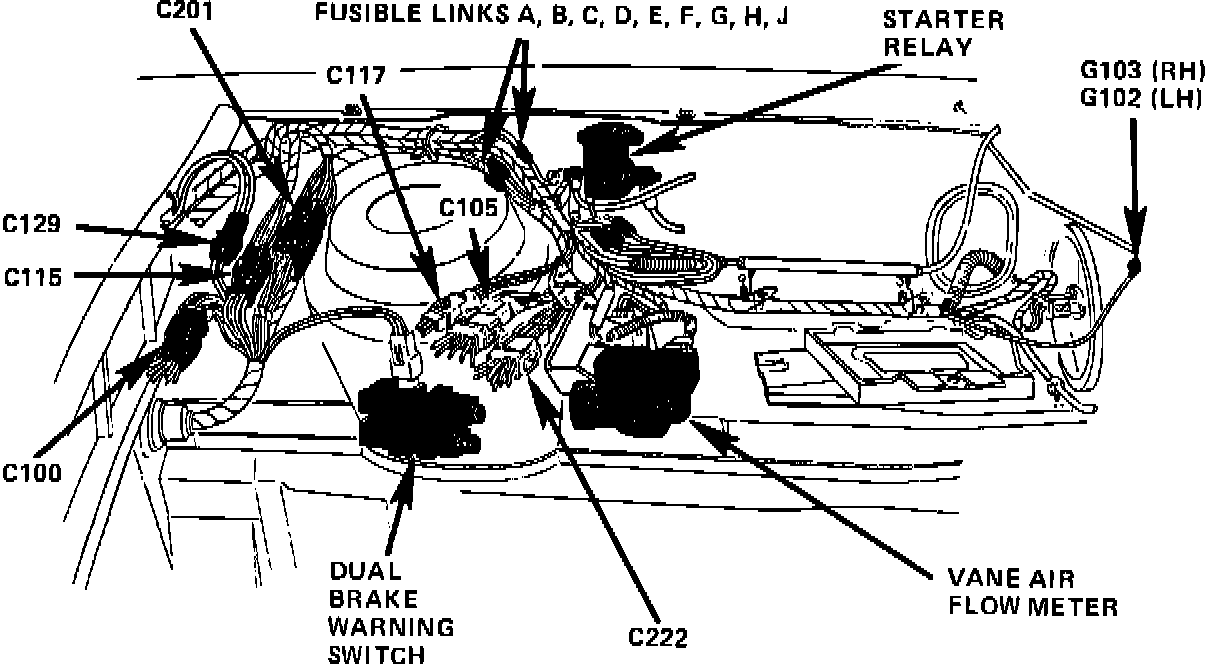

LH Shock Tower.:




LH Fender Apron, Near Starter Relay

Applicable to: 1983 Models

LH Shock Tower Area.:




LH Fender Apron, Near Starter Relay

Applicable to: 1983-85 Models
