Fig. 56 Calib. Codes 2-14N-R0, 2-14N-R01 & 2-14N-R10 Calif.
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

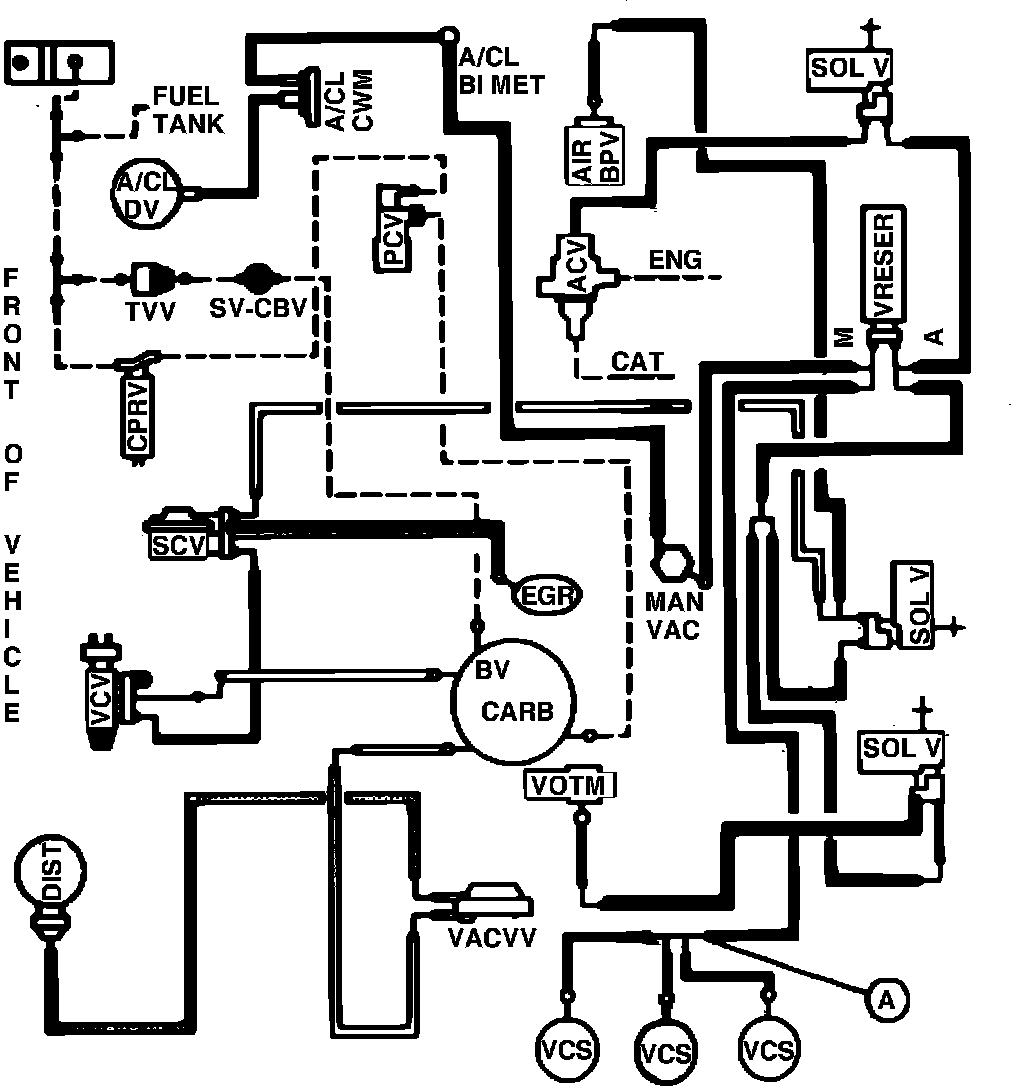

Fig. 56 Calib. Codes 2-14N-R0, 2-14N-R01 & 2-14N-R10 Calif.
Vacuum hose routing:
