A/T Technical Data

C5 3-spd A/T, Gear Ratios:

C5 3-spd A/T, Stall Speeds (Ranger):

C5 3-spd A/T, Control Pressures:

C5 3-spd A/T, Converter/Transmission End Play (All):

C5 3-spd A/T, Thrust Washers:

C5 3-spd A/T, Clutch Plate Usage/Clearance:

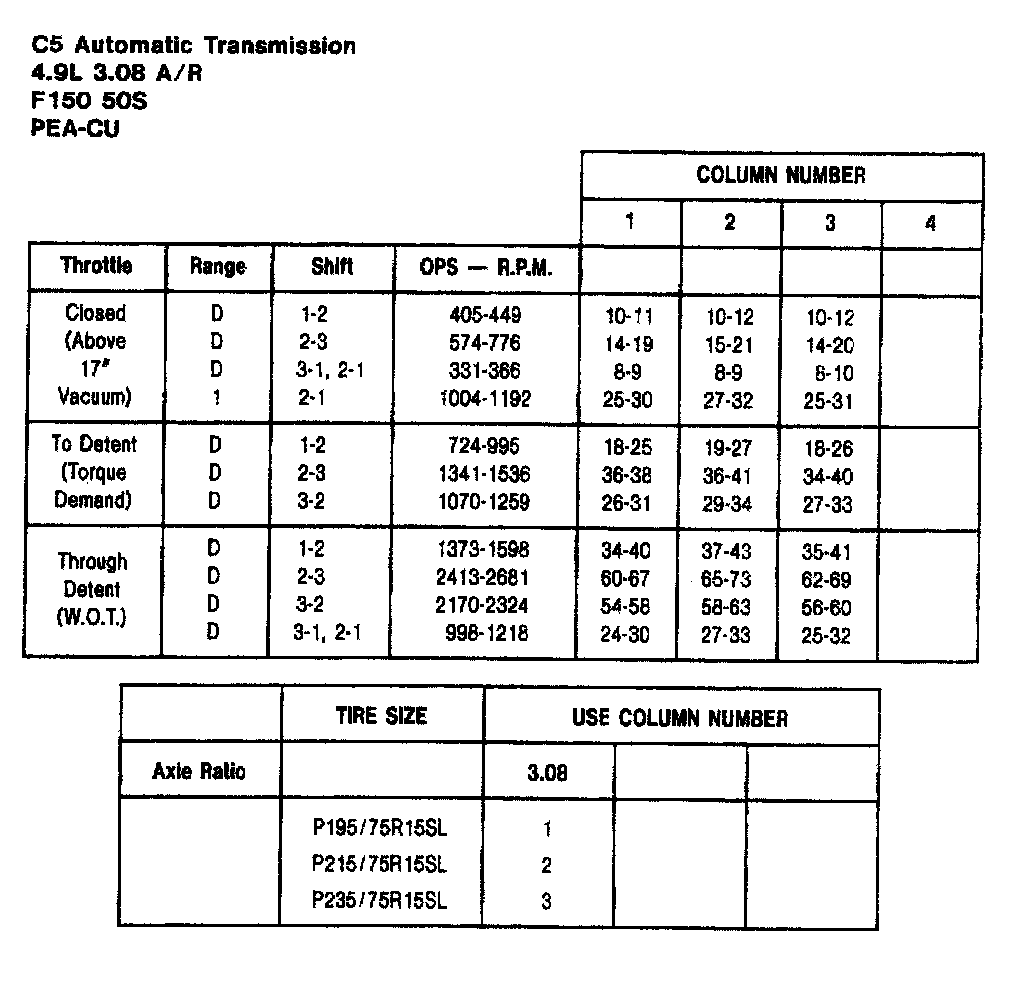

C5 3-spd A/T, Shift Speeds (4.9L F150):

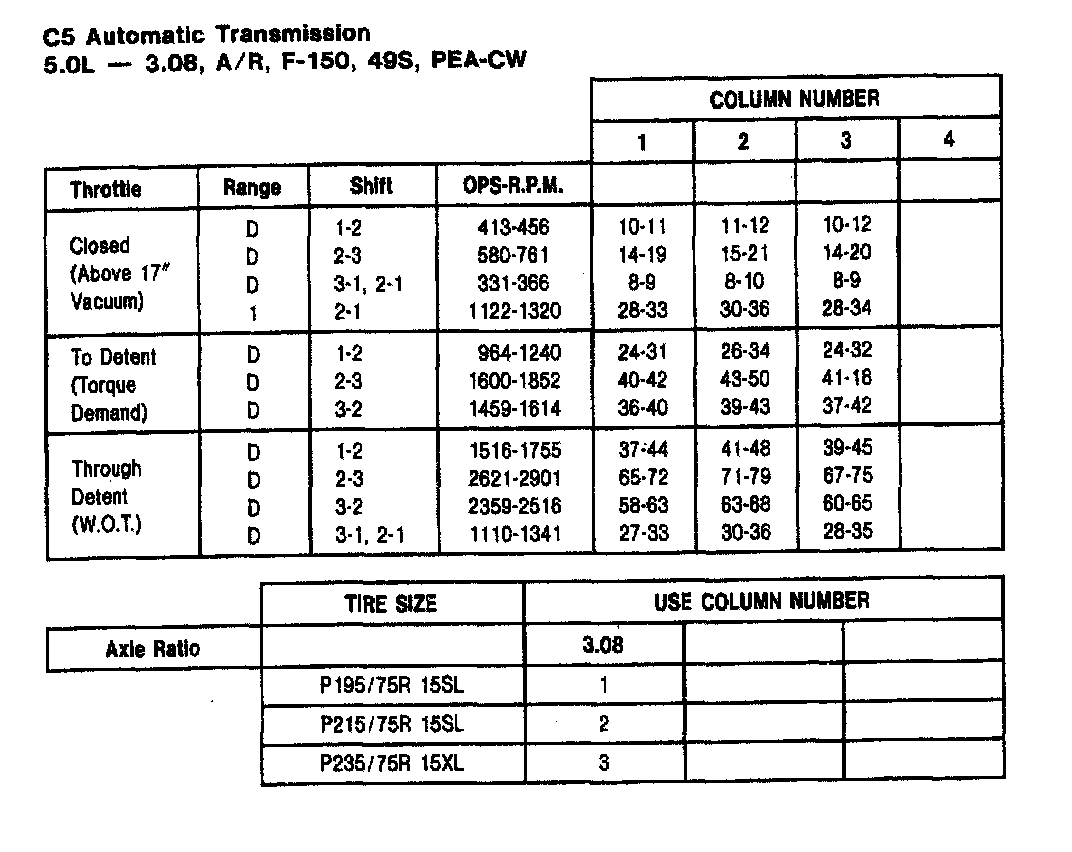

C5 3-spd A/T, Shift Speeds (5.0L F-150):
