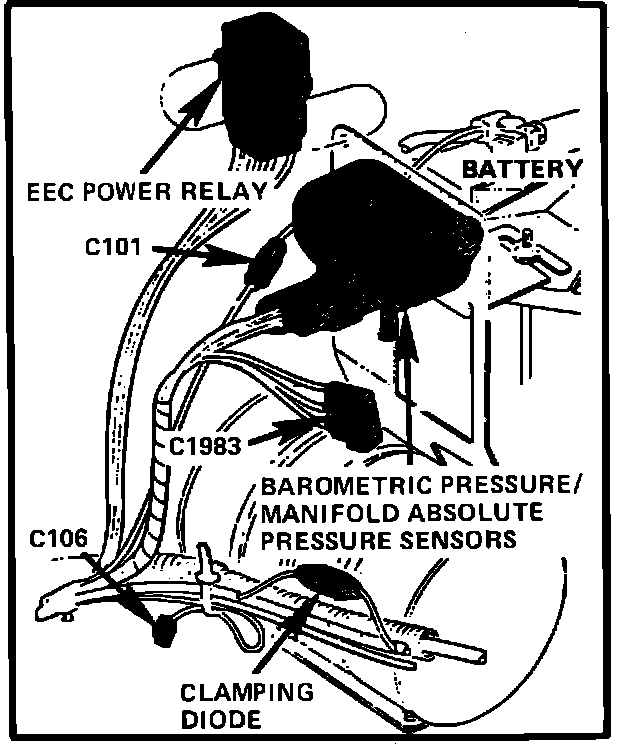

Main Relay (Computer/Fuel System): Locations

Forward Of RH Wheelwell At Battery.:




RH Fender Apron

Applicable to: 1981-83
