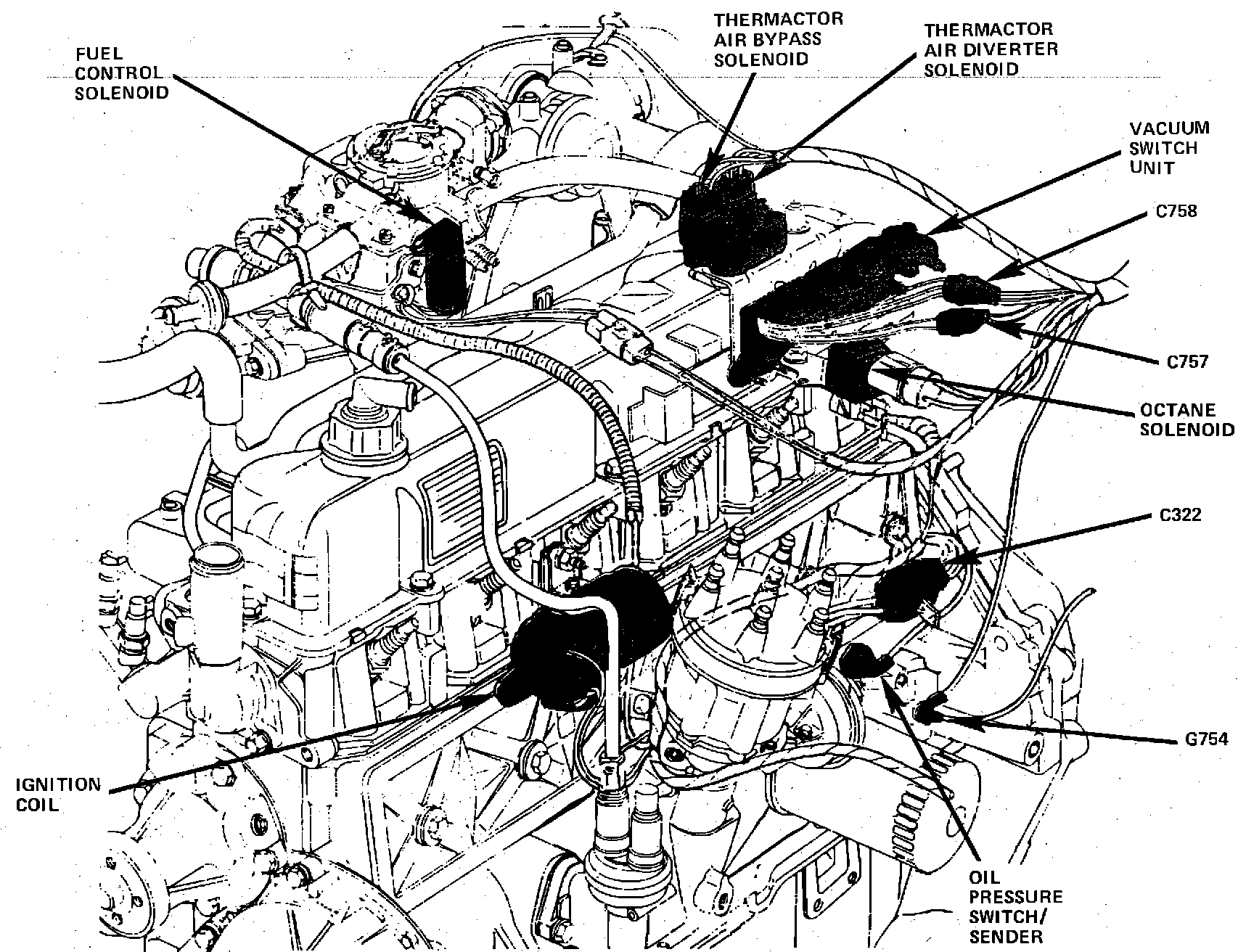

Feedback Control Solenoid: Locations

LH Side Of Engine.:




Beside Carburetor

Applicable to: 1981 6-300/4.9L Engine w/MCU

LH Side Of Engine.:




Beside Carburetor

Applicable to: 1982-83 6-300/4.9L Engine w/MCU
