Escort L4-098 1.6L VIN 2 2-bbl
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Emission Control Systems
>>
Diagrams
>>
Fig. 27 Calib. Code 2-04X-R0 High Alt.
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

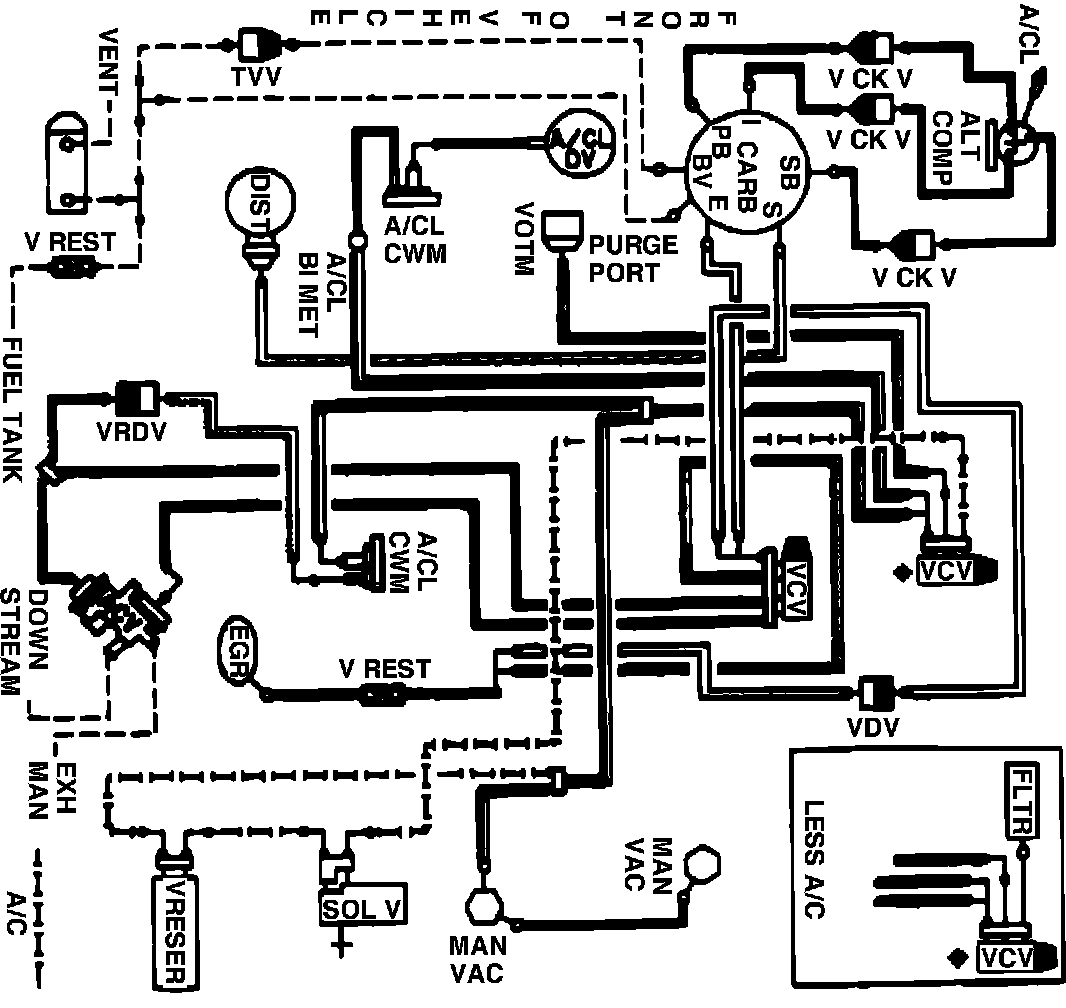

Fig. 27 Calib. Code 2-04X-R0 High Alt.
Vacuum hose routing:
