Fig. 7 Calib. Code 1-04S-R0 CA., W/O A/C
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

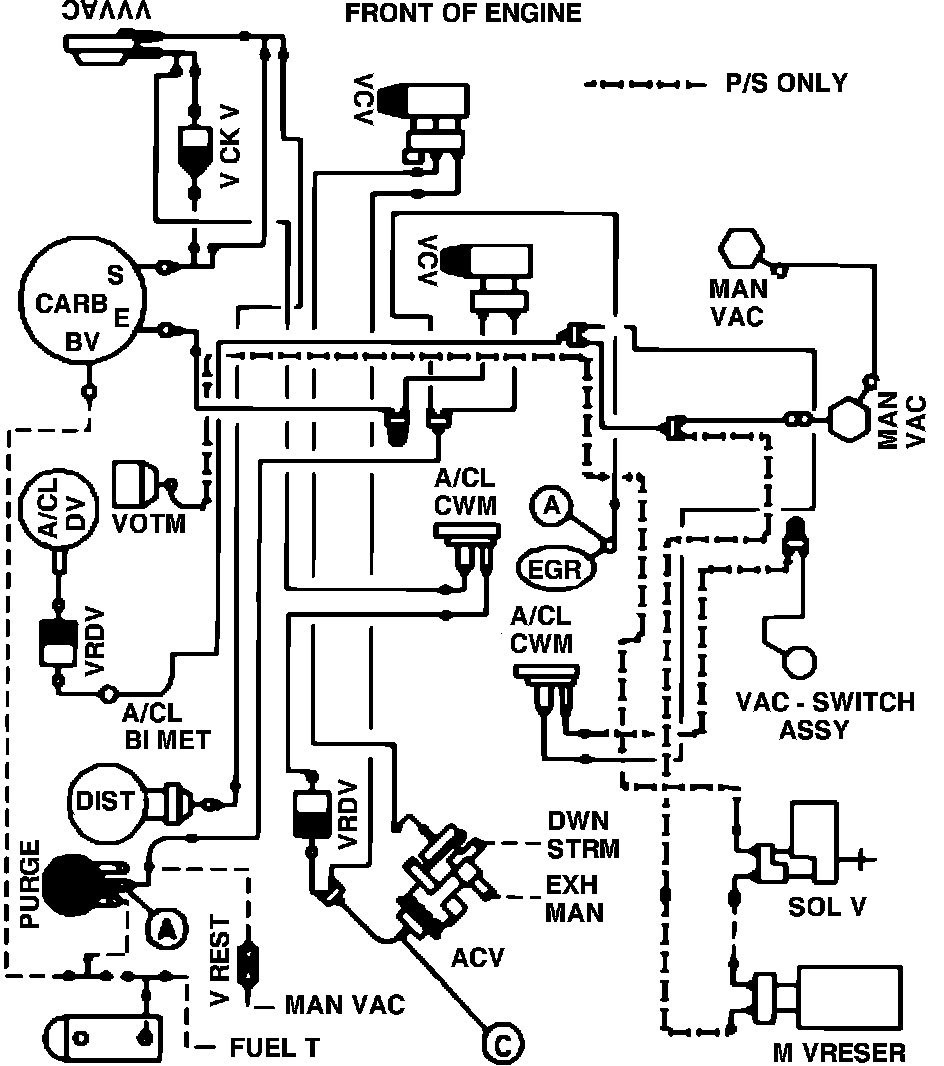

Fig. 7 Calib. Code 1-04S-R0 CA., W/O A/C
Vacuum hose routing:
