Install inner adjusting nut.

NOTE: Make sure pin on nut faces away from bearing.

Tighten adjusting nut to 50 ft. lbs. while rotating rotor. Now back off nut 1/3 turn. Install inner nut lock washer by aligning nearest hole in lock washer with adjusting nut pin. Install outer lock nut and tighten to 50 ft. lbs.

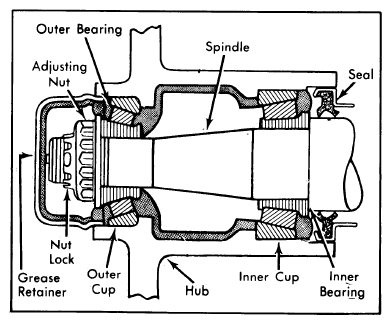

Fig 1: Typical Front Wheel Bearing Assembly

Courtesy of NOT AVAILABLE
