Battery System (Service Information): Battery: Installation

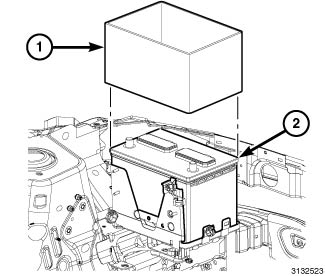

GC0152855Courtesy of CHRYSLER GROUP, LLC
  1. Install the battery (2) into the vehicle.
  2. Install the battery hold down retainer.
  3. Install the battery thermo cover (1).

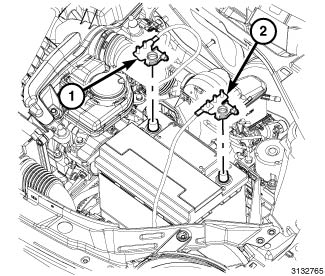

    GC0152856Courtesy of CHRYSLER GROUP, LLC
  4. Connect the positive battery cable (1).
  5. Connect the negative battery cable (2).

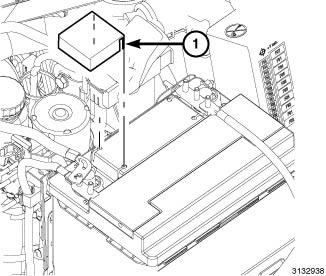

    GC0152857Courtesy of CHRYSLER GROUP, LLC
  6. Install the positive battery terminal cover (1).
