Automatic Temperature Control (ATC)

WARNING: This page is about a different car, the 2017 Fiat 500L. However, it is still accessible from the selected car via links, so may be relevant.
GC0158910Courtesy of CHRYSLER GROUP, LLC

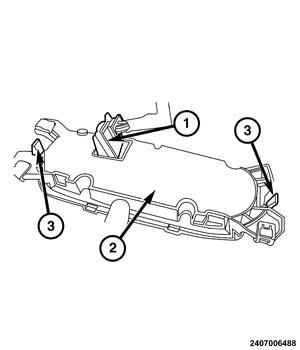

  1. Position the A/C heater control (2) to the instrument panel and connect the HVAC wire harness connector (1).
    GC0159033Courtesy of CHRYSLER GROUP, LLC

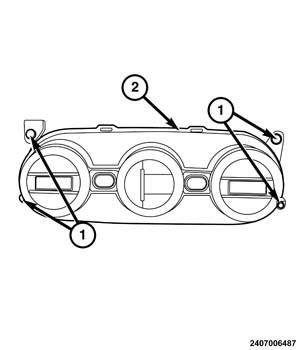

  2. Install the four screws (1) that secure the A/C heater control (2) to the instrument panel. Tighten the screws securely.
    GC0158815Courtesy of CHRYSLER GROUP, LLC

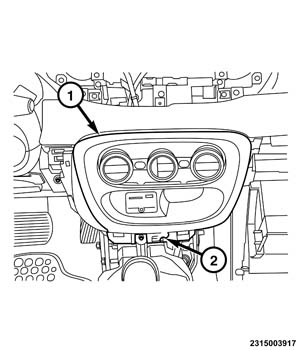

  3. Install the instrument panel Heating and A/C bezel (1). Refer to BEZEL, INSTRUMENT PANEL, HEATING AND A/C, INSTALLATION .
  4. Connect the negative battery cable.
  5. Initiate the Actuator Calibration function using a scan tool. Refer to STANDARD PROCEDURE .
