Pd701-87-Engine Control Module Can Line - Missing Message: Notes

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article .

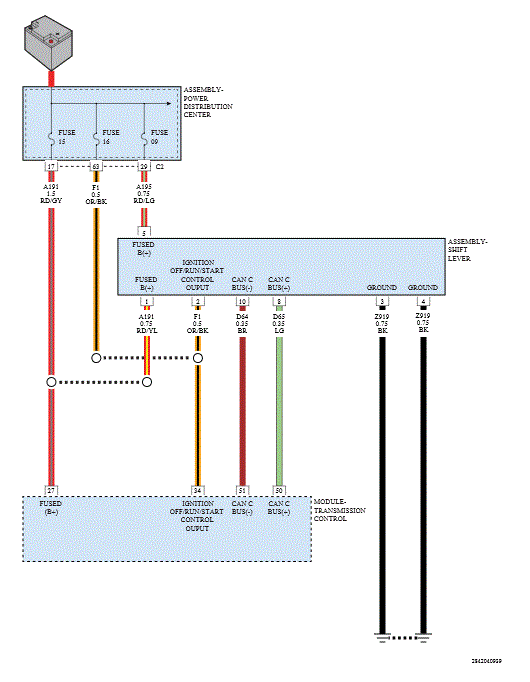

Fig 1: Transmission Control Module & Shift Lever Assembly Circuit Diagram

Courtesy of CHRYSLER GROUP, LLC
