Module-Battery Pack Control

Harness-Family: Motor

Color: BLACK

Gender: FEMALE

Part Number: 10811873

Part Description: 0.635 1.5 2.8 SLD

Connector No: D2441A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 26

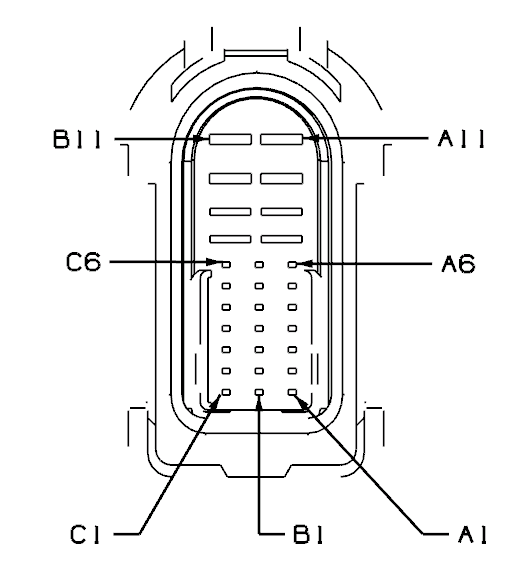

Fig 1: Module-Battery Pack Control Connector End View
GCWD1082363Courtesy of CHRYSLER

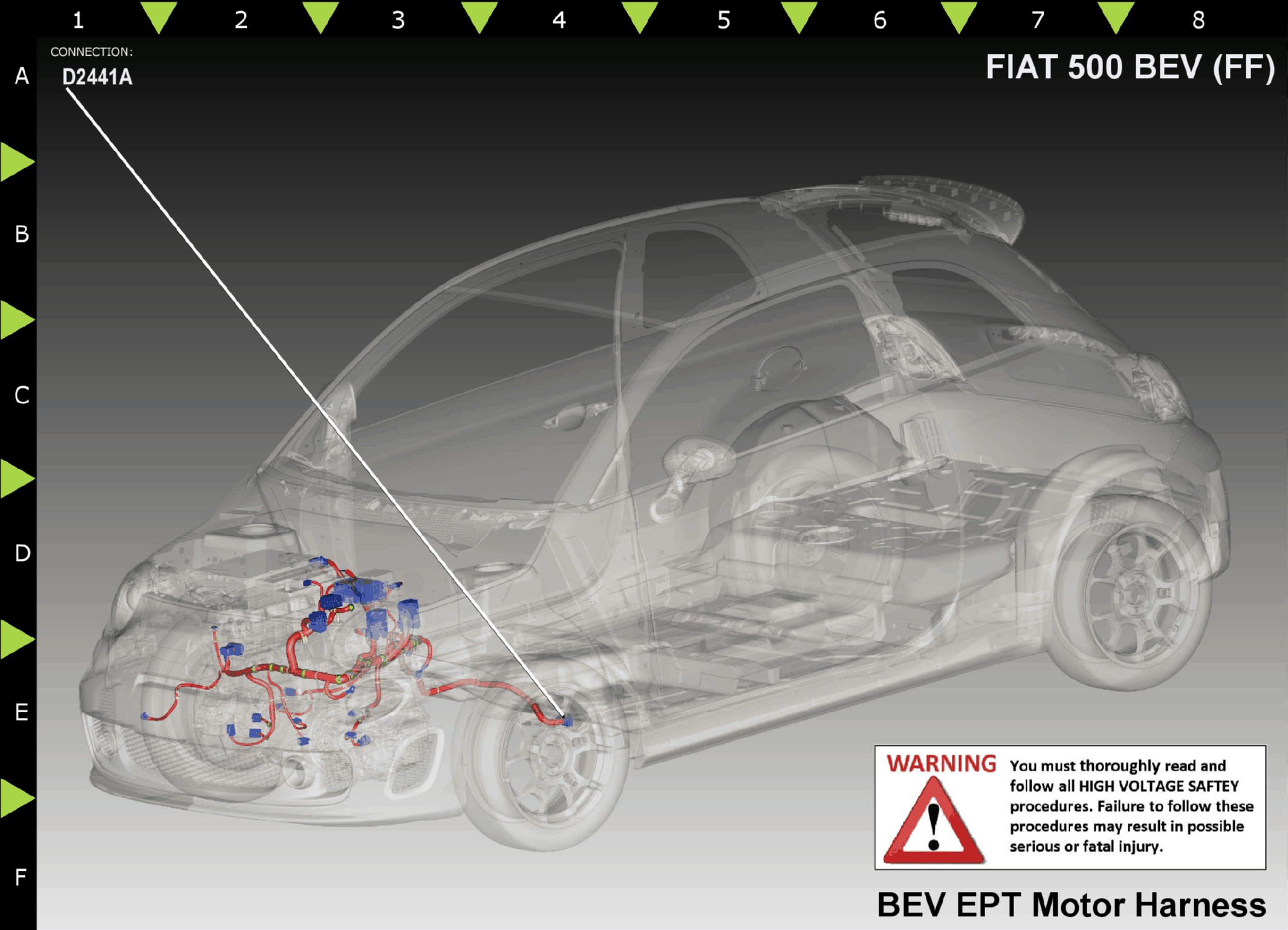

Fig 2: Module-Battery Pack Control Component Location
GCWD1155933Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
A1 D66 WT/LG 20 CAN C (+) N/A
A10 H363 VT/GY 20 COOLANT PUMP RELAY CONTROL N/A
A11 A902 RD/DB 16 FUSED B(+) N/A
A2 H32 VT 20 EVCU WAKE-UP SIGNAL N/A
A3 T345 BR/OR 20 HIGH VOLTAGE INTERLOCK SAFETY LOOP 5 N/A
A4 D67 WT/DB 20 CAN C (-) N/A
A6 T350 BR/OR 20 HIGH VOLTAGE INTERLOCK SAFETY LOOP OUT N/A
A8 H370 DB 20 BATTERY COOLANT VALVE CONTROL N/A
A9 A902 RD/DB 16 FUSED B(+) N/A
B1 H4 GY/YL 20 BPCM WAKE-UP SIGNAL N/A
B10 H374 BR/VT 20 BATTERY COOLANT HEATER RETURN N/A
B11 Z900 BK 16 GROUND N/A
B2 D28 WT/DB 20 CAN C (-) N/A
B3 D27 WT/LG 20 CAN C (+) N/A
B4 H397 DB 20 HIGH VOLTAGE BATTERY CONTACTOR CONTROL N/A
B6 H378 DB/OR 20 BATTERY COOLANT HEATER CONTROL N/A
B8 H372 DB/YL 20 BATTERY HEATER VALVE CONTROL N/A
B9 Z900 BK 16 GROUND N/A
C1 D515 WT/VT 20 LIN BUS N/A
C2 K25 BR/LG 20 RAD COOLANT TEMP SENSOR SIGNAL N/A
C3 K91 BR 20 RAD COOLANT TEMP SENSOR RETURN N/A
(1) Pins not listed are not used for this connector
