Underhood Fuses



Underhood Fuses

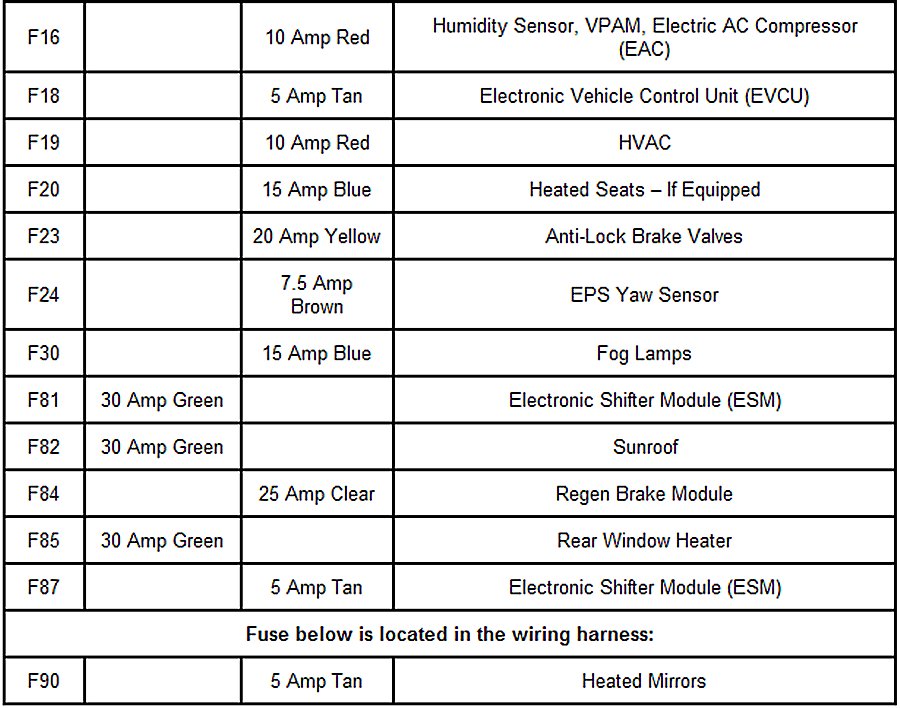

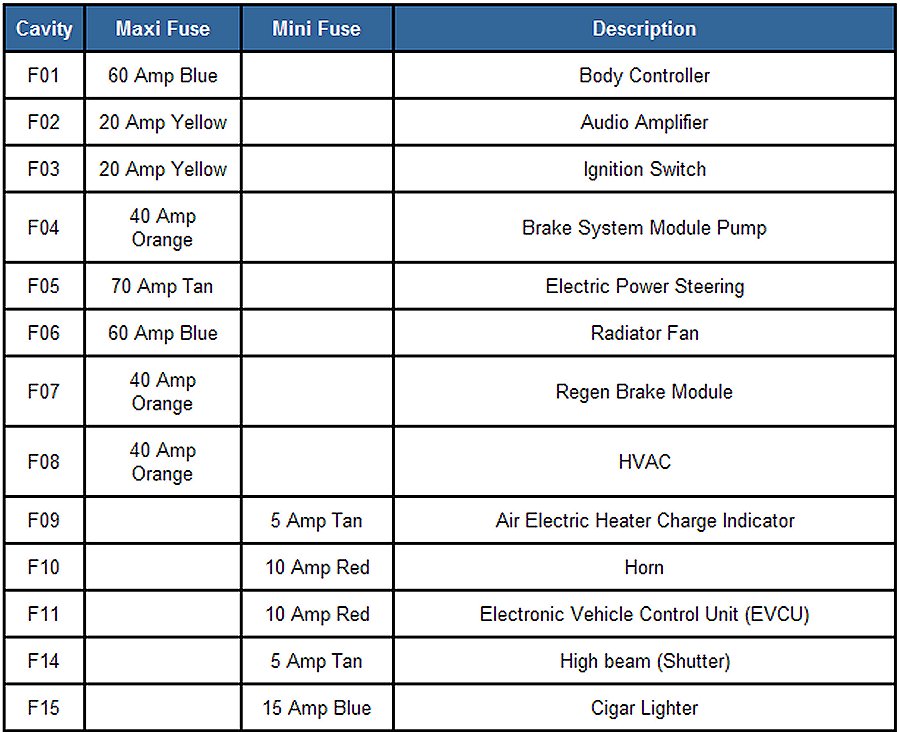

Power Distribution Center (PDC) #1 is located on the right side of the under hood compartment.

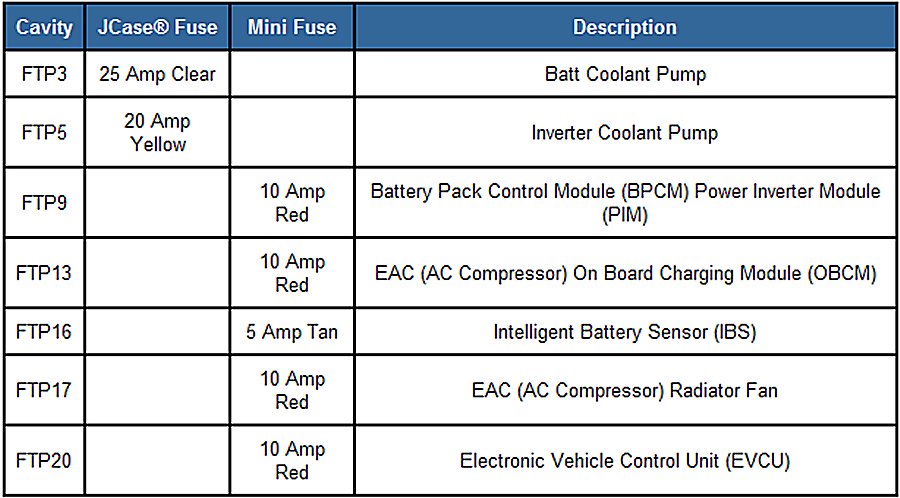

Power Distribution Center (PDC) #2 is located next to the battery in the under hood compartment.
