Module-Body Control C8

Harness-Family: IP

Color: GREEN

Gender: FEMALE

Part Number: 13530015

Part Description: - -

Connector No: D2962H

Option:

Repair Kit Part Number: Not Available

Cavity Count: - -

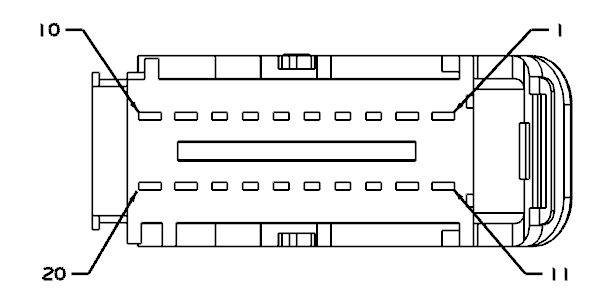

Fig 1: Module-Body Control C8 Connector End View

GCWD1084664

Courtesy of CHRYSLER

Fig 2: Module-Body Control C8 Connector Location View

GCWD1187732

Courtesy of CHRYSLER

Pin

Circuit

Wire Color

Gauge/Size

Function

Option

1

F100

GY

14

FUSED IGNITION RUN CONTROL OUTPUT

N/A

3

F721

DB/YL

20

IGNITION SWITCH OUTPUT (RUN)

N/A

4

X442

DB/BK

20

UCI USB POWER

N/A

5

F981

DB/BK

22

FUSED IGNITION RUN/ACCESSORY CONTROL OUTPUT

N/A

7

F943

DB/RD

22

FUSED IGNITION RUN-START CONTROL OUTPUT

N/A

9

Z921

BK

12

GROUND

N/A

10

Z921

BK

12

GROUND

N/A

11

F20

DB

12

IGNITION RUN/START CONTROL OUTPUT

N/A

12

A118

RD/DG

14

FUSED B(+)

N/A

13

F982

DB/DG

20

FUSED IGNITION SWITCH OUTPUT (RUN-ACC)

N/A

14

F505

RD/WT

22

FUSED IGNITION SWITCH OUTPUT (RUN-START)

N/A

19

A116

RD/DG

20

FUSED B(+)

N/A

20

A922

RD/DG

20

FUSED B(+)

N/A

⁽¹⁾	Pins not listed are not used for this connector
