Module-Power Top Control

Harness-Family: Power_Top

Color: BLACK

Gender: FEMALE

Part Number: 185760-1

Part Description: Not Available

Connector No: D2353

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 16

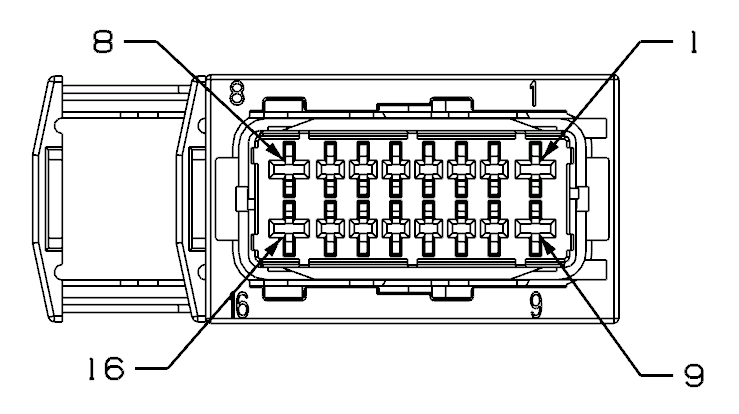

Fig 1: Module-Power Top Control Connector End View

Courtesy of CHRYSLER

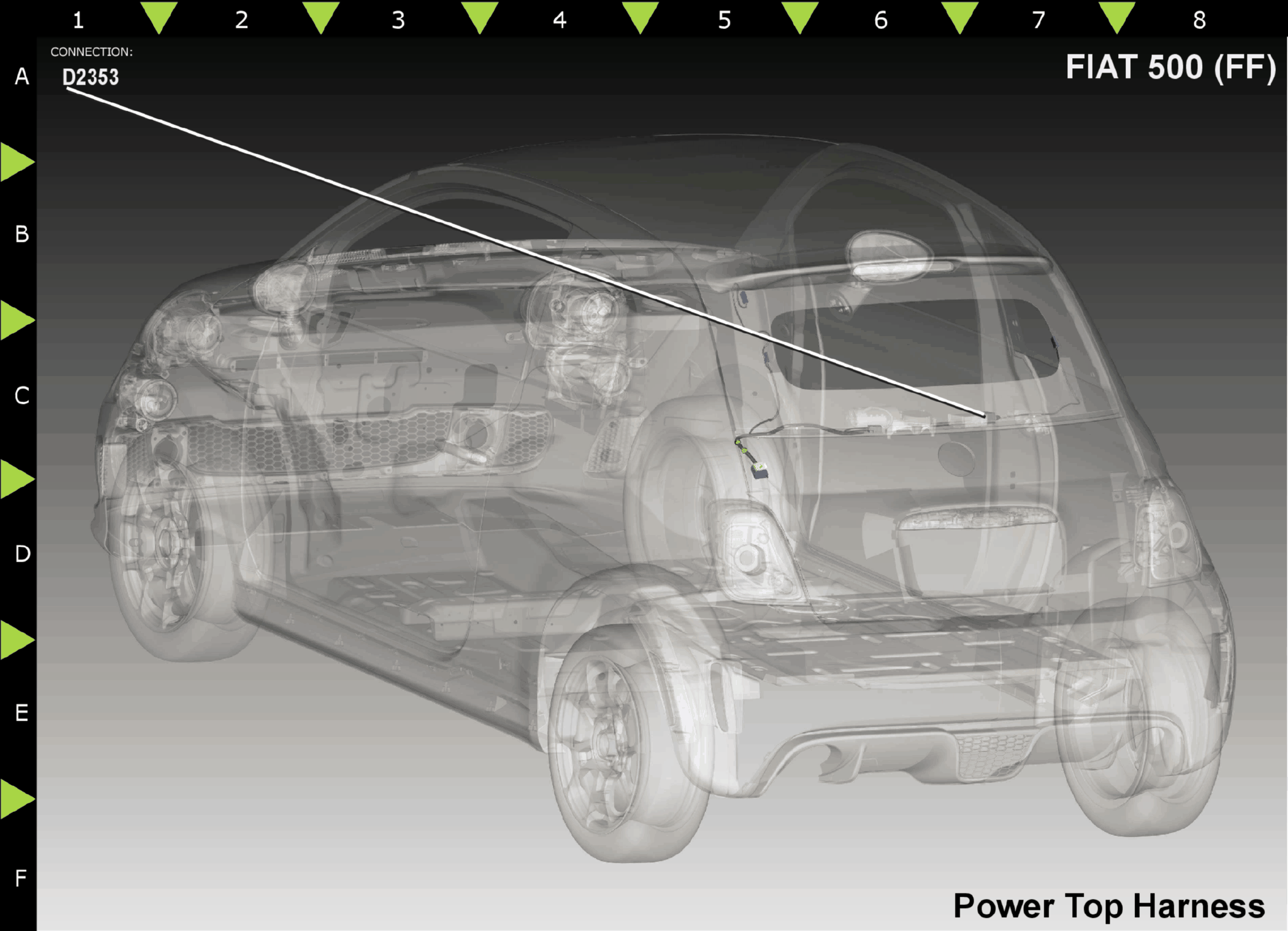

Fig 2: Module-Power Top Control Connector Location View

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	A130	DB	10	FUSED B(+)	N/A
13	Q981	VT	20	TONNEAU RETRACTED LIMIT SWITCH SIGNAL	N/A
14	Q987	VT	20	POWER TOP MOTOR SOLENOID SIGNAL	N/A
15	Q982	DB	20	TONNEAU EXTENDED LIMIT SWITCH SIGNAL	N/A
16	Q985	DB	10	POWER TOP EXTENDED DRIVER	N/A
2	Z916	GY	20	GROUND	N/A
3	D401	VT	20	LIN BUS 1	N/A
4	Q5	YL	20	SUNROOF CLOSE SWITCH SENSE	N/A
5	Q3	YL	20	SUNROOF OPEN SWITCH SENSE	N/A
8	Q986	DG	10	POWER TOP RETRACTED DRIVER	N/A
9	Z941	DG	10	GROUND	N/A
