Fan Module-Radiator Cooling C1

Harness-Family: Body_Front

Color: BLACK

Gender: MALE

Part Number: AHY01227

Part Description: Not Available

Connector No: D3022A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: ~~

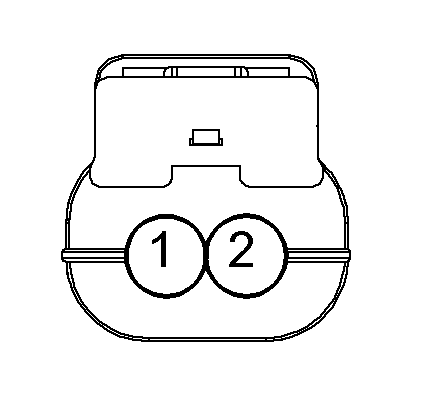

Fig 1: Fan Module-Radiator Cooling C1 Connector End View
GCWD1081745Courtesy of CHRYSLER
Fig 2: Fan Module-Radiator Cooling C1 Connector Location View
GCWD1187590Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 Z920 BK 12 GROUND N/A
2 N23 WT 12 RADIATOR FAN RELAY OUTPUT N/A
