Module-Body Control C3

Harness-Family: Body_Rear

Color: VIOLET

Gender: FEMALE

Part Number: FJR56828

Part Description: - -

Connector No: D2962C

Option:

Repair Kit Part Number: Not Available

Cavity Count: - -

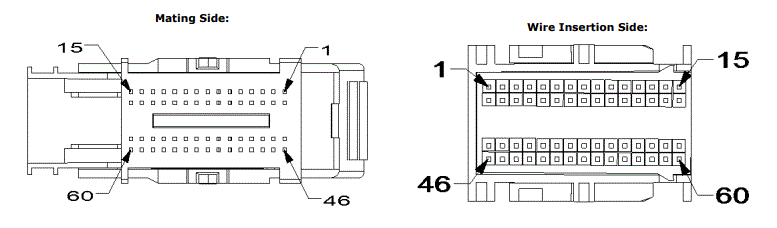

Fig 1: Module-Body Control C3 Connector End View

Courtesy of CHRYSLER

Fig 2: Module-Body Control C3 Connector Location View

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	L63	DB/WT	22	LEFT REAR TURN LAMP DRIVER	N/A
2	L163	DB/WT	22	LEFT SIDE REPEATER LAMP CONTROL OUTPUT	N/A
3	L62	DB/BK	22	RIGHT REAR TURN LAMP DRIVER	N/A
4	N4	VT/WT	22	FUEL LEVEL SENSOR SIGNAL	N/A
5	L72	YL/BK	22	RIGHT REAR PARK LAMP DRIVER	N/A
6	L71	YL/RD	22	LEFT REAR PARK LAMP DRIVER	N/A
7	W17	DG/BR	22	REAR WIPER PARK SWITCH SENSE	N/A
9	M11	GY/LB	22	COURTESY LAMPS DRIVER	CABRIO
9	M11	GY/DB	22	COURTESY LAMPS DRIVER	HATCHBACK
10	L54	DG/YL	20	RIGHT STOP LAMP DRIVER	N/A
12	L914	WT/YL	22	CARGO LAMP SWITCH SIGNAL	CABRIO
12	Z904	WT/YL	22	GROUND	HATCHBACK
13	M27	RD/BK	22	READING LAMPS DRIVER	N/A
14	F987	DB/DG	22	FUSED IGNITION RUN/ACCESSORY CONTROL OUTPUT	EXCEPT MEXICO
14	F987	OR/WT	22	FUSED IGNITION RUN/ACCESSORY CONTROL OUTPUT	MEXICO
15	L3	YL/DG	22	LICENSE PLATE LAMP DRIVER	N/A
16	L17	YL	22	PARK LAMP FEED	N/A
17	G109	BK/GY	22	FUEL LEVEL SENSE RETURN	N/A
18	L162	DB/BK	22	RIGHT SIDE REPEATER LAMP CONTROL OUTPUT	N/A
19	B25	WT/YL	22	PARK BRAKE SWITCH SENSE	N/A
23	F988	DB/DG	22	FUSED IGNITION RUN/ACCESSORY CONTROL OUTPUT	N/A
24	F989	DB/DG	22	FUSED IGNITION RUN/ACCESSORY CONTROL OUTPUT	N/A
26	M25	RD/BK	22	COURTESY LAMP DRIVER	N/A
29	F98	GY/BK	22	FUSED IGNITION SWITCH OUTPUT (RUN-ACC)	CABRIO WITH HEATED SEAT
29	P968	GY/BK	22	HEATED SEAT SENSOR RETURN	HATCHBACK WITH HEATED SEAT
31	D931	BK	22	ANTENNA SHIELD	N/A
33	D401	DG/GY	22	LIN BUS 1	N/A
34	D42	WT	22	CAN B (-)	EXCEPT MEXICO
34	D42	DB/GY	22	CAN B (-)	MEXICO
35	P30	WT/GY	22	LIFTGATE HANDLE SWITCH SENSE	N/A
37	D42	WT	22	CAN B (-)	N/A
39	G78	WT/GY	22	DECKLID/LIFTGATE AJAR SWITCH SENSE	N/A
44	L15	GY/DG	22	LEFT BACKUP LAMP DRIVER	EARLY
44	L15	GY/DG	20	LEFT BACKUP LAMP DRIVER	LATE
45	L16	GY/DG	20	RIGHT BACKUP LAMP DRIVER	N/A
46	D111	WT	22	RKE ANTENNA SIGNAL	N/A
49	D41	DB	22	CAN B (+)	EXCEPT MEXICO
49	D41	BK	20	CAN B (+)	MEXICO
52	D41	DB	22	CAN B (+)	N/A
57	B12	GY/YL	22	VEHICLE SPEED SIGNAL	N/A
60	L52	DG/WT	20	LEFT STOP LAMP DRIVER	N/A
