Second Gear Power Flow

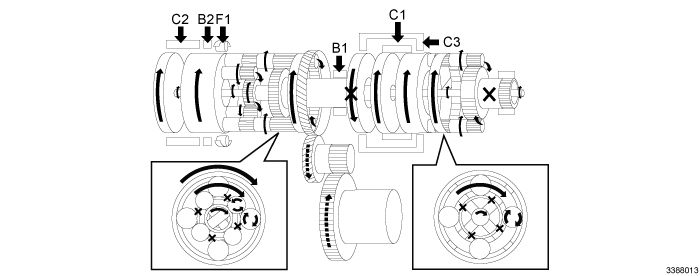

Fig 1: Second Gear Power Flow
GC0153391Courtesy of CHRYSLER GROUP, LLC
SECOND GEAR

SHIFTER POSITION SOLENOID CLUTCH NUMBER BRAKE NUMBER ONE-WAY CLUTCH
SLC1  SLC2  SLC3  SLB1  S1  S2  C1  C2  C3  B1  B2  F1
D  SECOND  X X X X X - X - - X - -
X = in operation
