Power Window Switch - Installation

INSTALLATION

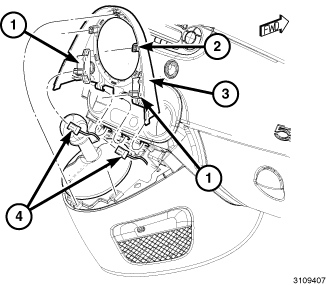

1. Position the switch (1) on the shifter bezel (3).
2. Install, and tighten the fasteners securing the switch.
3. Connect the electrical harness connectors (4) to the switches.
4. Position the bezel assembly; aligning the clips (2) with the console, and press into place.
5. Connect the negative battery cable.
