Fuse Panel

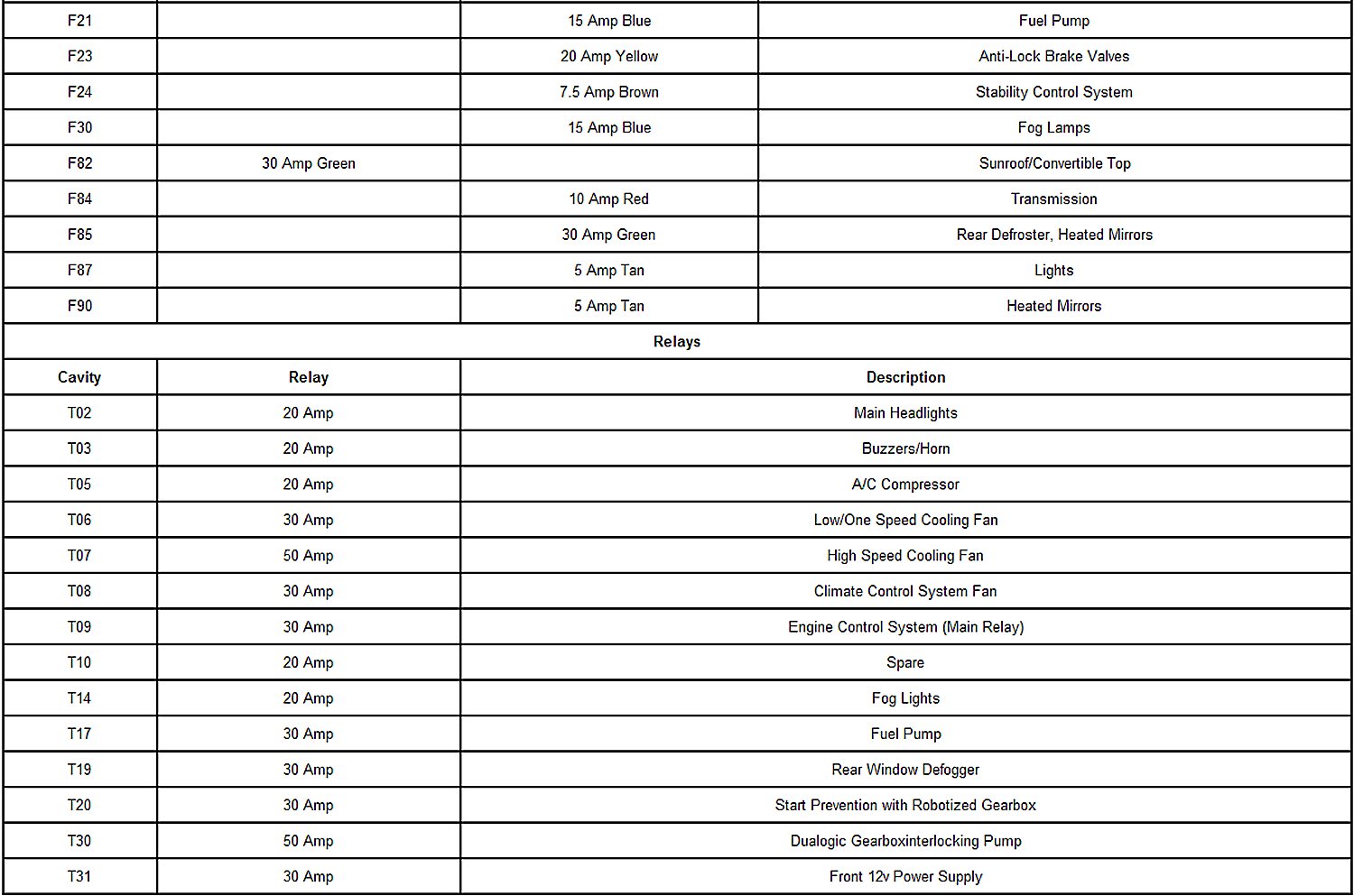

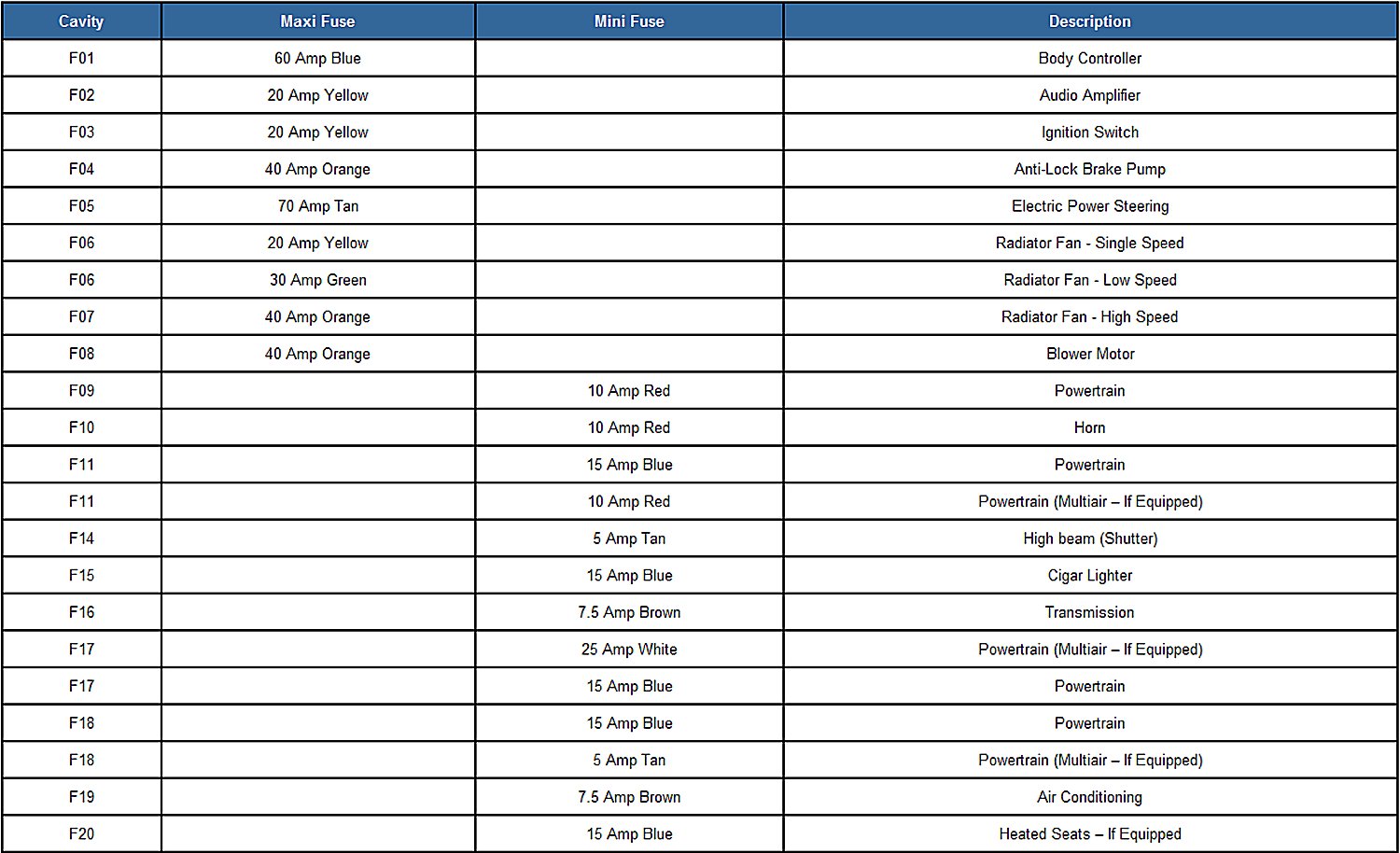

Underhood Fuses

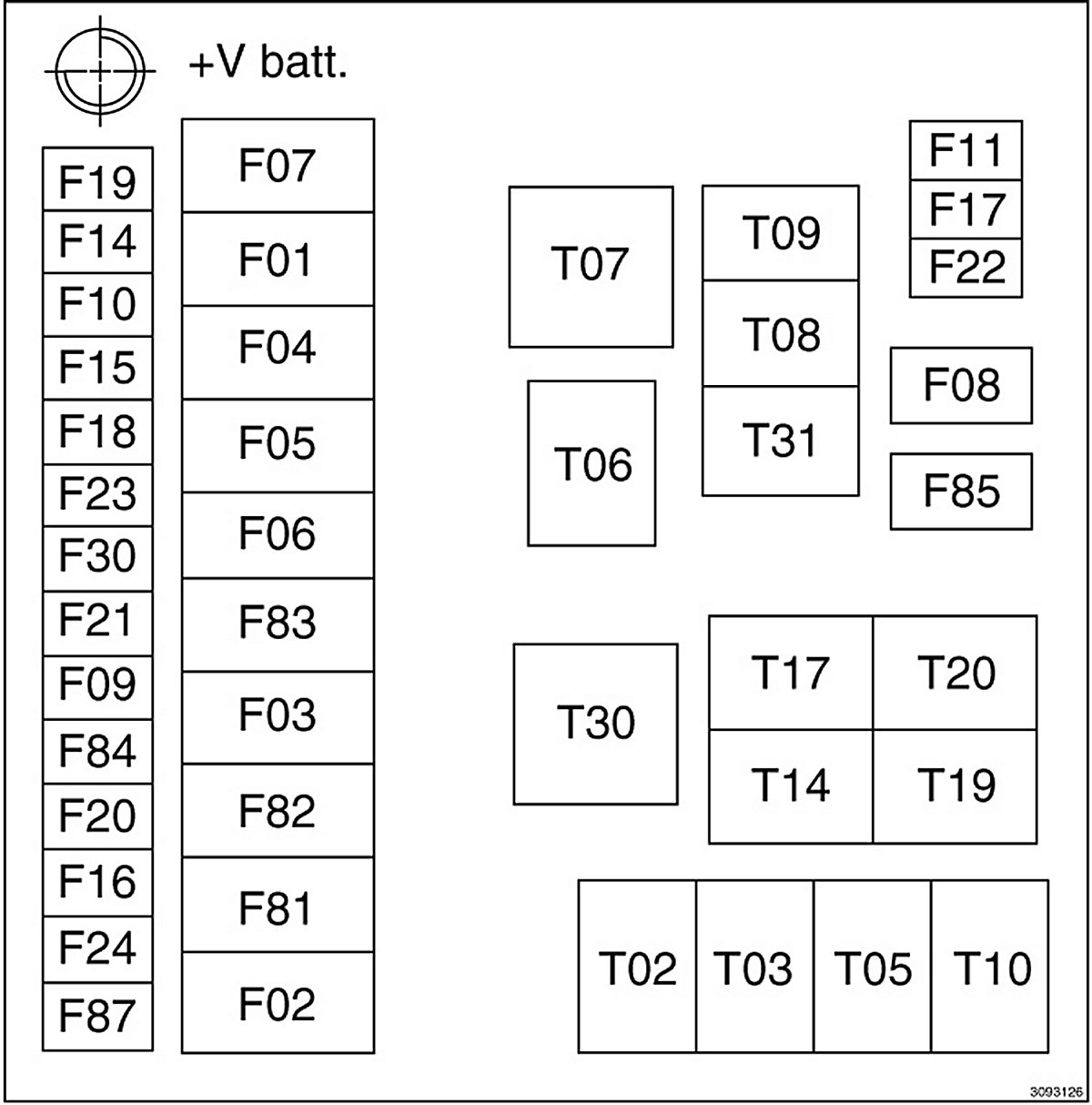

A second fuse panel is located on the right side of the engine compartment, next to the battery.
