Module, Convergence Telematics: Installation: Installation

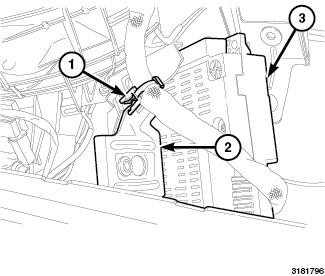

Fig 1: Harness Clip, CTM Bracket & CTM

Courtesy of CHRYSLER GROUP, LLC

Disconnect the harness clip (1) from the CTM bracket (2) and remove the CTM (3).
Position the Telematic Module (CTM) (3) under the instrument.
Connect the harness clip (1) to the CTM support bracket (2).

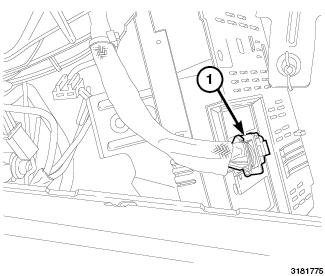

Fig 2: Harness Connector
Courtesy of CHRYSLER GROUP, LLC
Connect the harness connector (1) to the CTM.

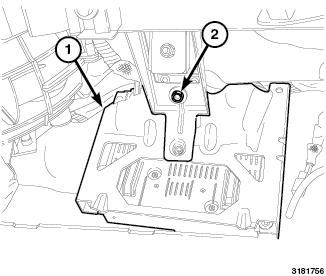

Fig 3: Convergence Telematic Module (CTM) & Bracket Mounting Retainer
Courtesy of CHRYSLER GROUP, LLC
Align the CTM (1) bracket with the instrument panel bracket and install the retainer (2).

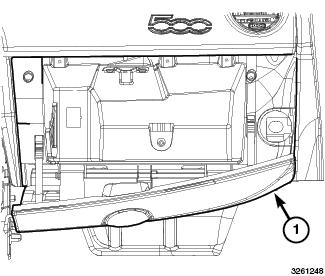

Fig 4: Glove Box
Courtesy of CHRYSLER GROUP, LLC
Install the glove box assembly. Refer to GLOVE BOX, INSTRUMENT PANEL, INSTALLATION .

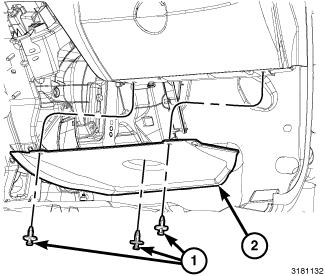

Fig 5: Retainers & Passenger Side Silencer Panel
Courtesy of CHRYSLER GROUP, LLC
Install the passenger side silencer panel (2) and install the retainers (1).

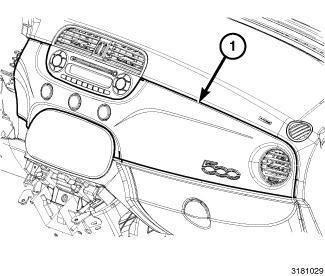

Fig 6: Center Trim Bezel
Courtesy of CHRYSLER GROUP, LLC
Install the bezel (1), align the tabs up and firmly press into place.

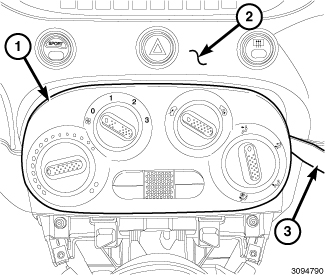

Fig 7: Trim Stick, Instrument Panel & Control Panel
Courtesy of CHRYSLER GROUP, LLC
Install the align the tabs for the A/C heater control and firmly press into place.
Connect the negative battery cable.
