Checking Automatic Stop

  1. Operate wiper motor at low speed. See Fig 1 . Disconnect battery voltage during operation to stop motor.
  2. Using jumper wire, connect terminals as shown. See Fig 1 . Connect 12 volts to indicated terminal, and ground wiper motor bracket. Ensure wiper arm is correctly parked.

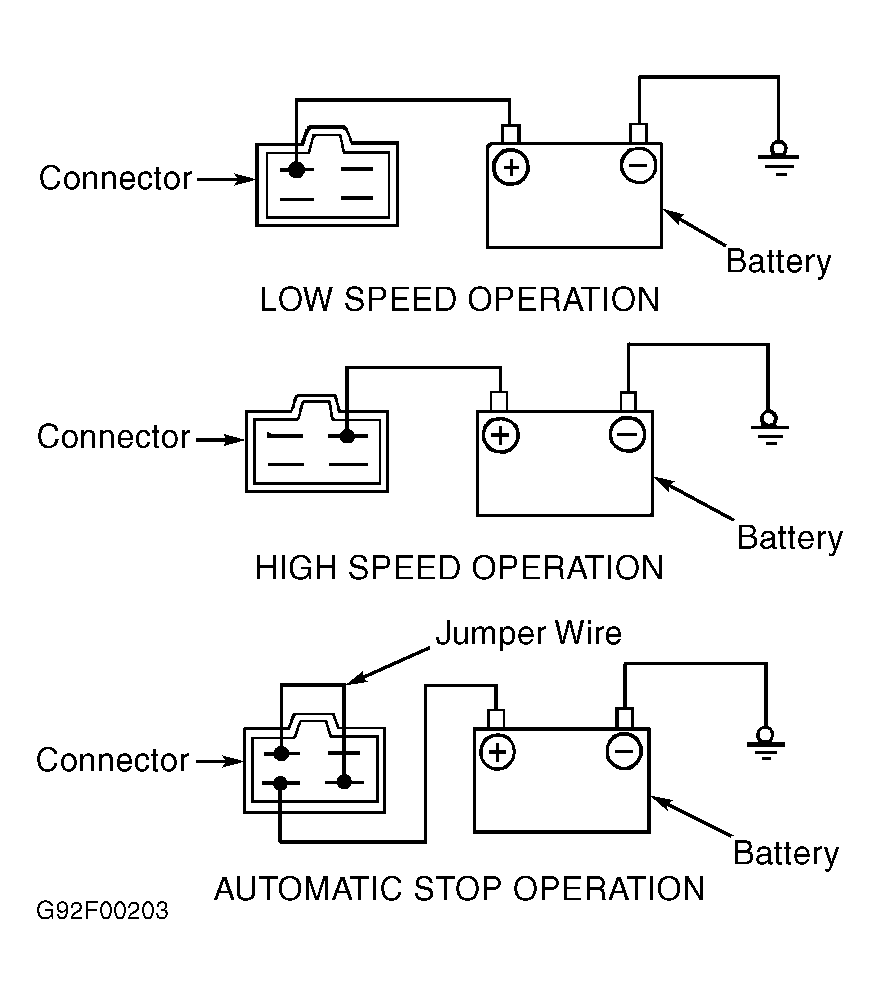

Fig 1: Checking Wiper Motor Operation
G92F00203Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
