Solenoid Control Valve: Installation

  1. Inspect "O" ring seals on control valve to ensure they are not damaged. If damaged, replace with NEW "O" rings. Moisten "O" rings with clean power steering fluid. Install solenoid control valve into steering gear, by hand, until solenoid is fully seated. Using 1 5/16" crow foot wrench, tighten solenoid to 124 INCH lbs. (14 N.m).
  2. Route wiring harness from solenoid control valve under power steering lines and around front of steering gear. Connect wiring harness connector from solenoid control valve onto solenoid control module, ensuring connector seal is in good condition. Road test vehicle or test using DRB scan tool.
Fig 1: Removing Air Intake Plenum
G94J31616Courtesy of CHRYSLER CORP.

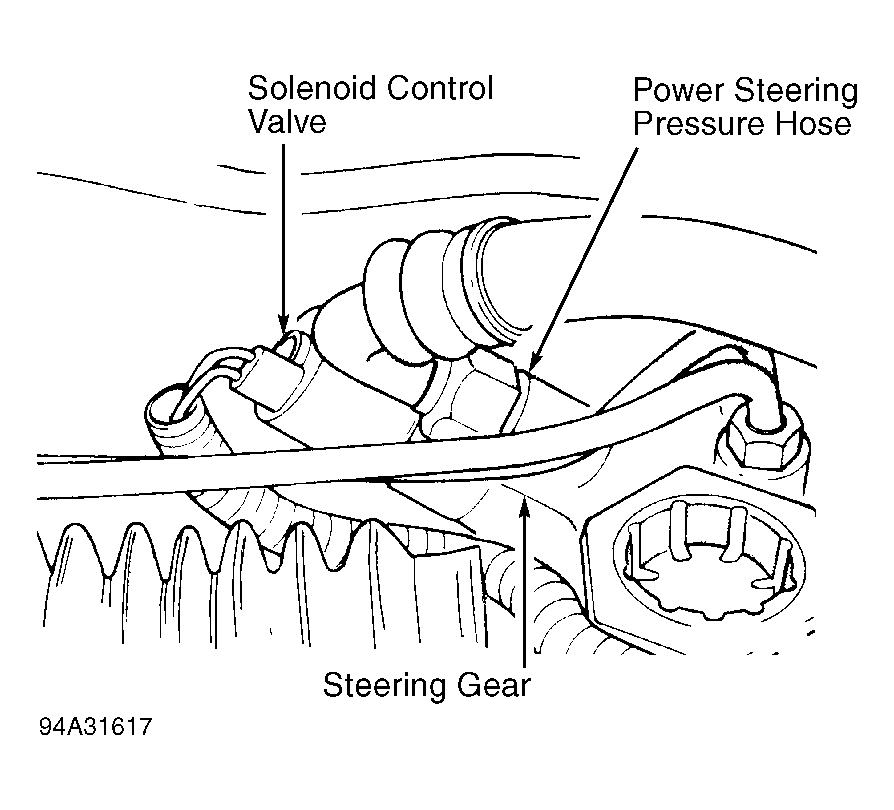

Fig 2: Removing P/S Pressure Hose
G94A31617Courtesy of CHRYSLER CORP.

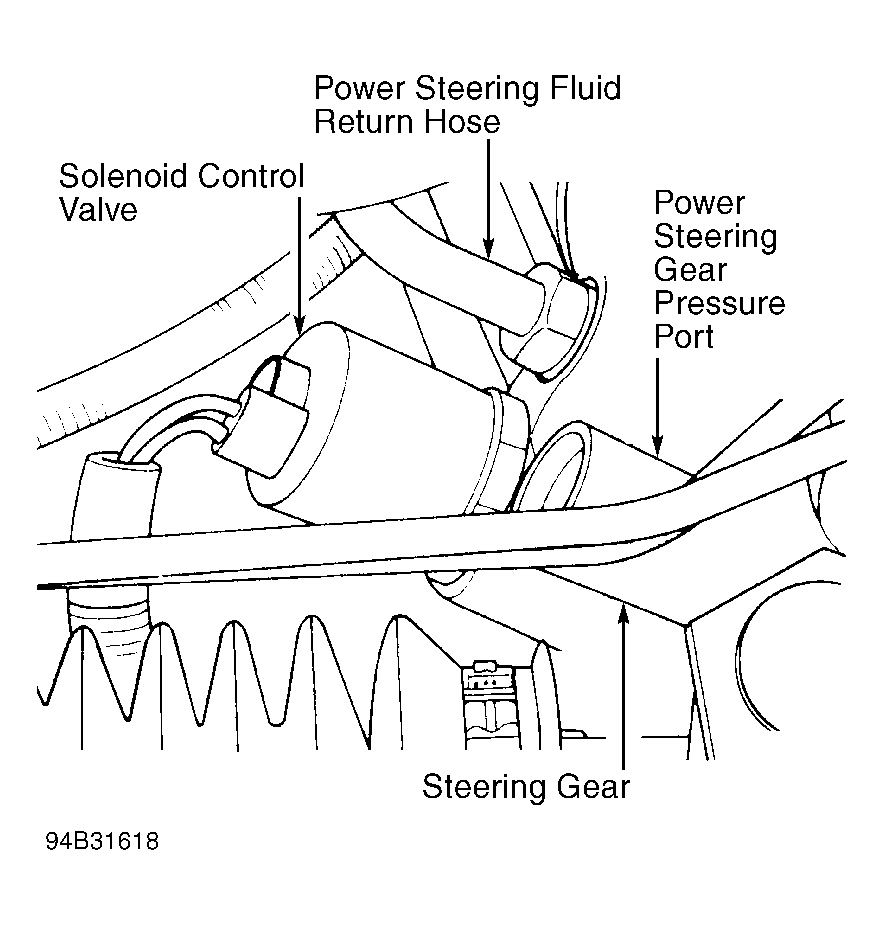

Fig 3: Removing P/S Return Hose
G94B31618Courtesy of CHRYSLER CORP.

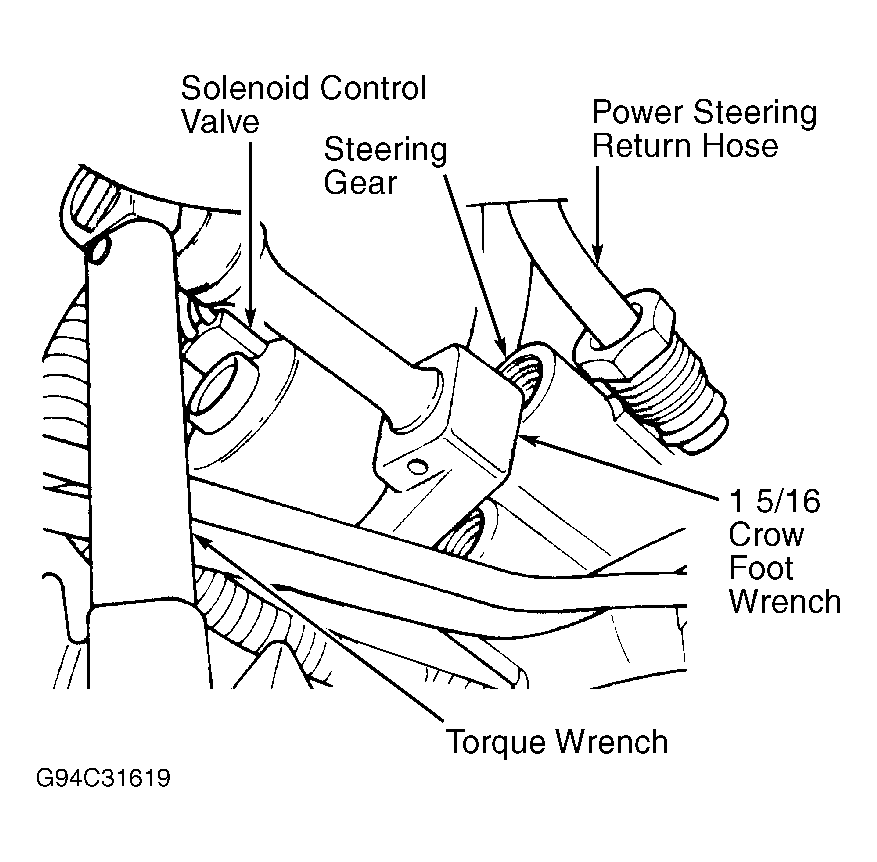

Fig 4: Removing Solenoid Control Valve
G94C31619Courtesy of CHRYSLER CORP.
