Fuse Block

Dedicated Fuses (Relay Box In Engine Compartment):



Dedicated Fuses (Relay Box In Engine Compartment):

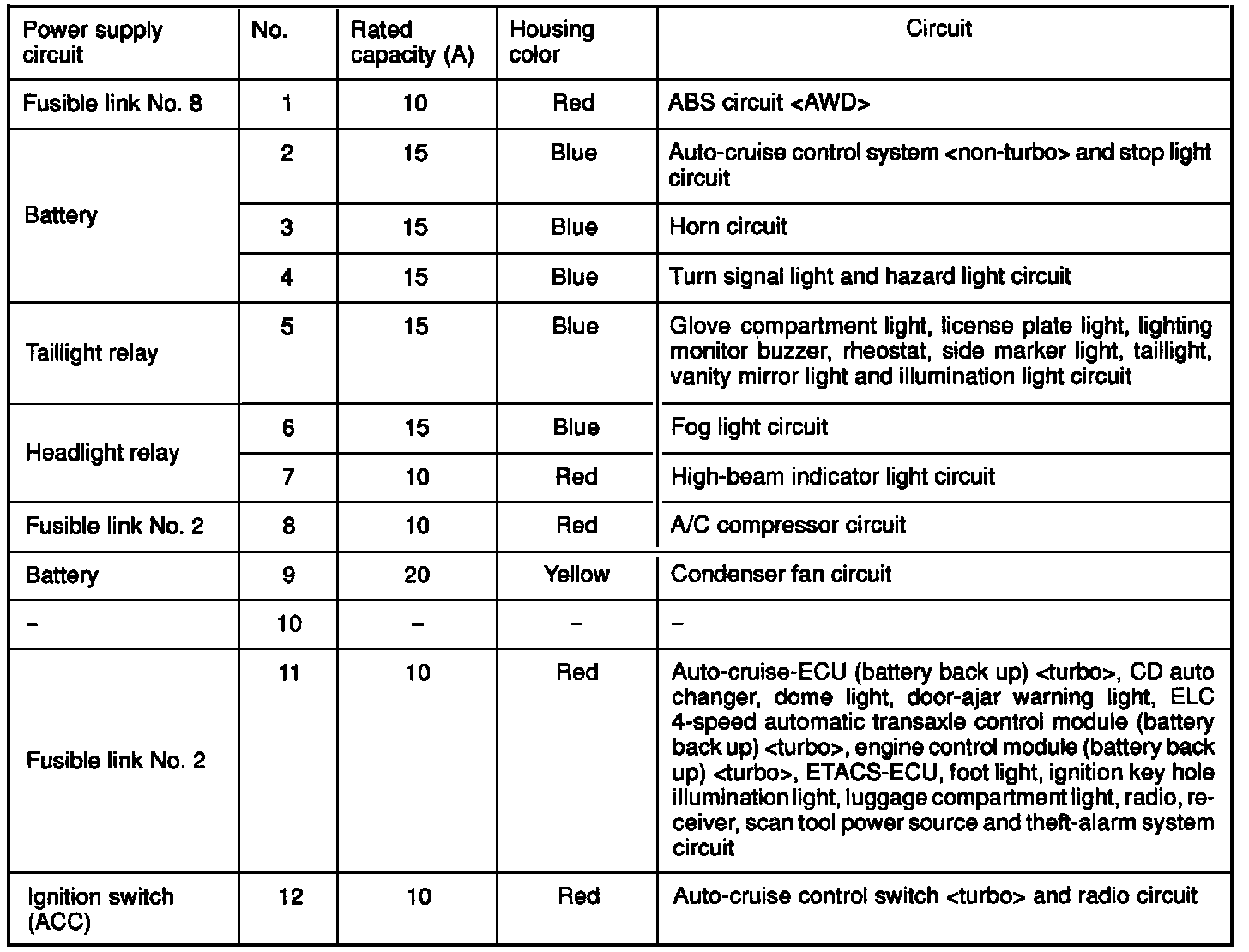

Dedicated Fuses (Interior Relay Box):

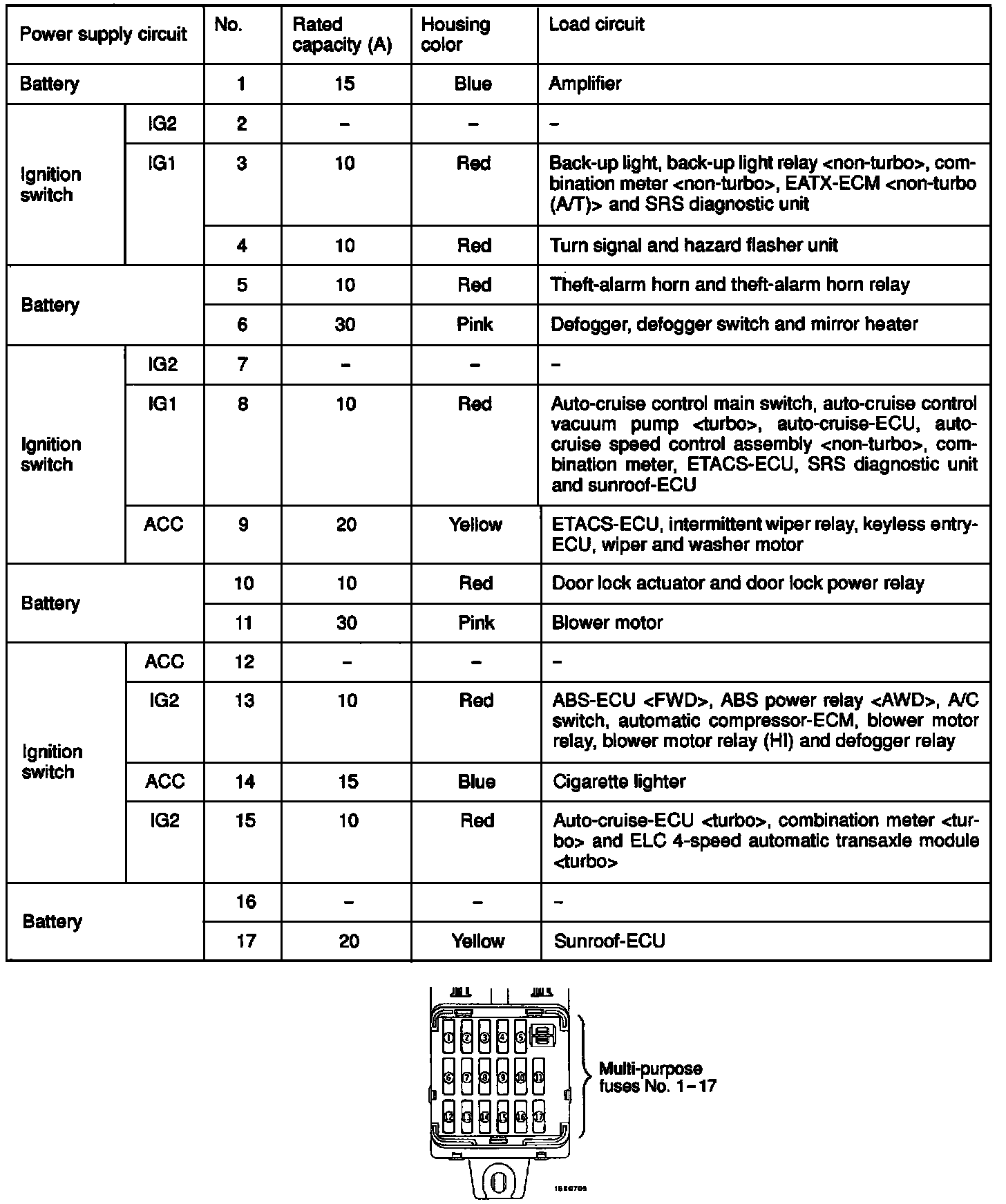

Multi Purpose Fuse (In Junction Block):
