Relay Box In Engine Compartment

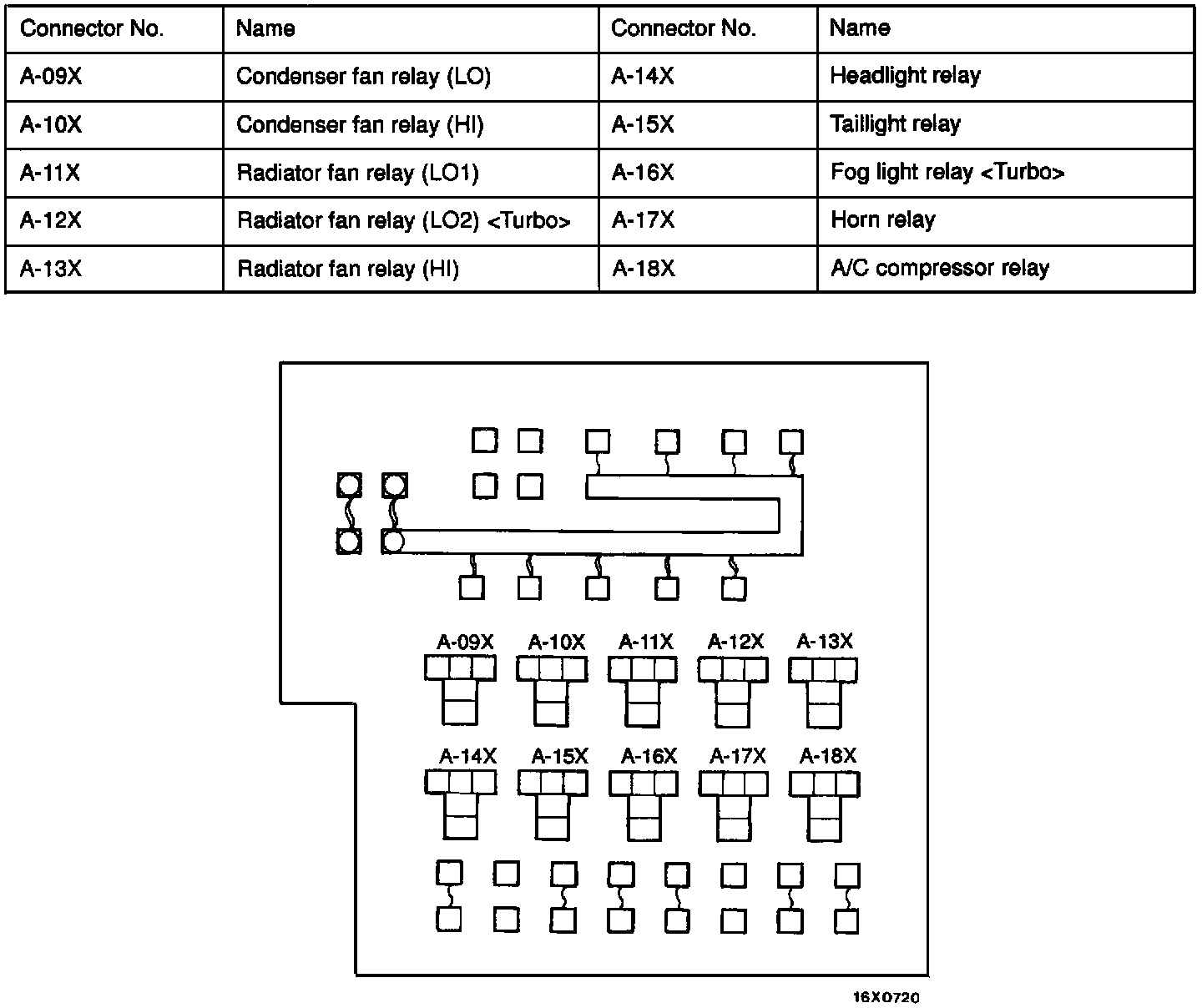

Centralized Relay (Relay In Engine Compartment):



Centralized Relay (Relay In Engine Compartment):
