Talon AWD L4-1997cc 2.0L DOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Ignition System
>>
Testing and Inspection
>>
Oscilloscope Patterns and Waveforms
>>
Waveform Observation Points
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

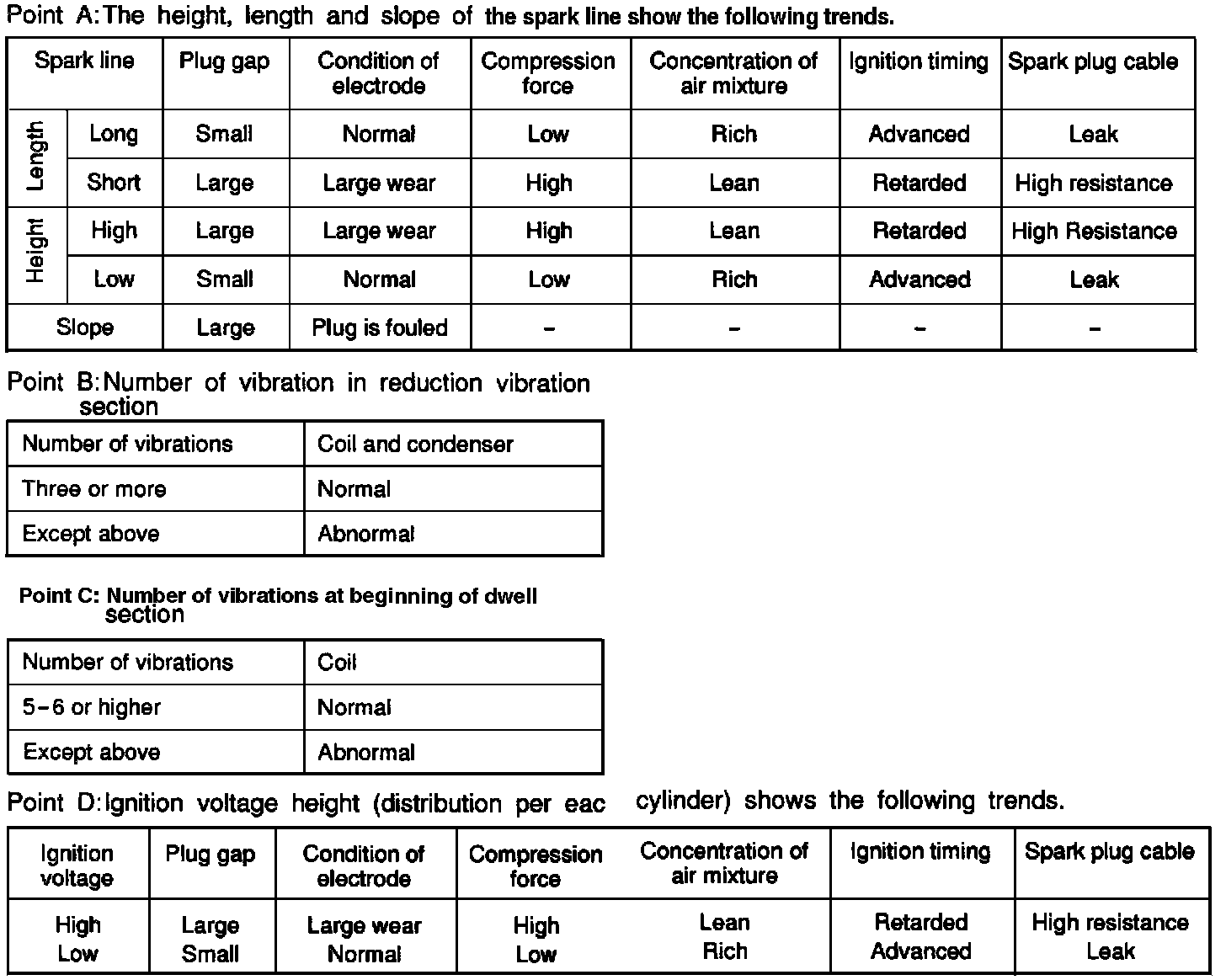

Waveform Observation Points
Waveform Observation Points:
