Rear Window Defogger

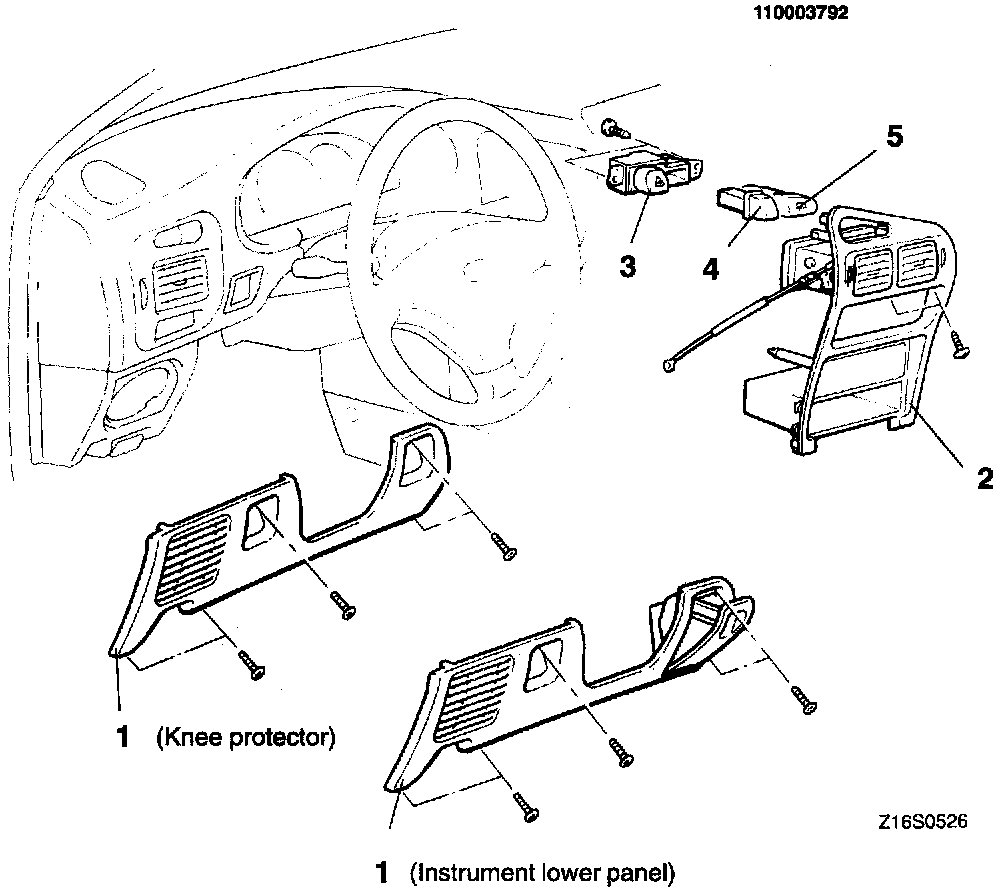

Rear Window Defogger - Removal And Installation:

REMOVE
1. Knee protector or instrument lower panel
2. Air outlet center panel assembly Service and Repair
3. Switch holder
4. Switch plug
5. Defogger switch

INSTALL
1. Defogger switch
2. Switch plug
3. Switch holder
4. Air outlet center panel assembly Service and Repair
5. Knee protector or instrument lower panel
