Does Not Move Backwards

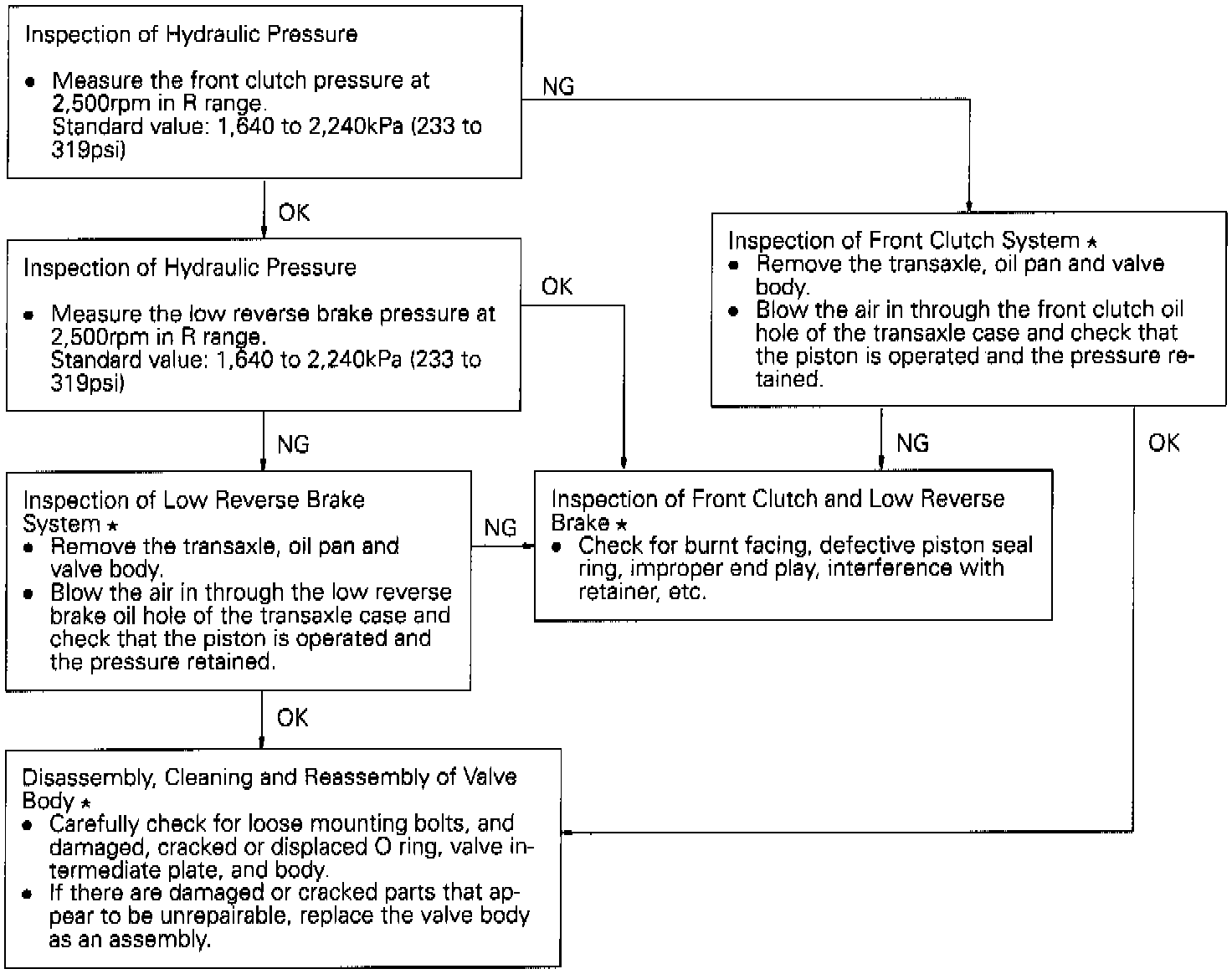

Inspection Step 4

Description


With the engine at idle, you cannot make the vehicle move backward by changing the selector lever position from N to P. In this case, an abnormal low reverse brake or front clutch pressure, or a defective low reverse brake or front clutch is suspected


Probable Cause of Trouble

- Abnormal low reverse brake pressure
- Abnormal front clutch pressure
- Defective front clutch
- Defective low reverse brake
- Defective valve body
