Connector Views
Bone Color Connector Pinout:
Grey Color Connector Pinout:
Black Color Connector Pinout:

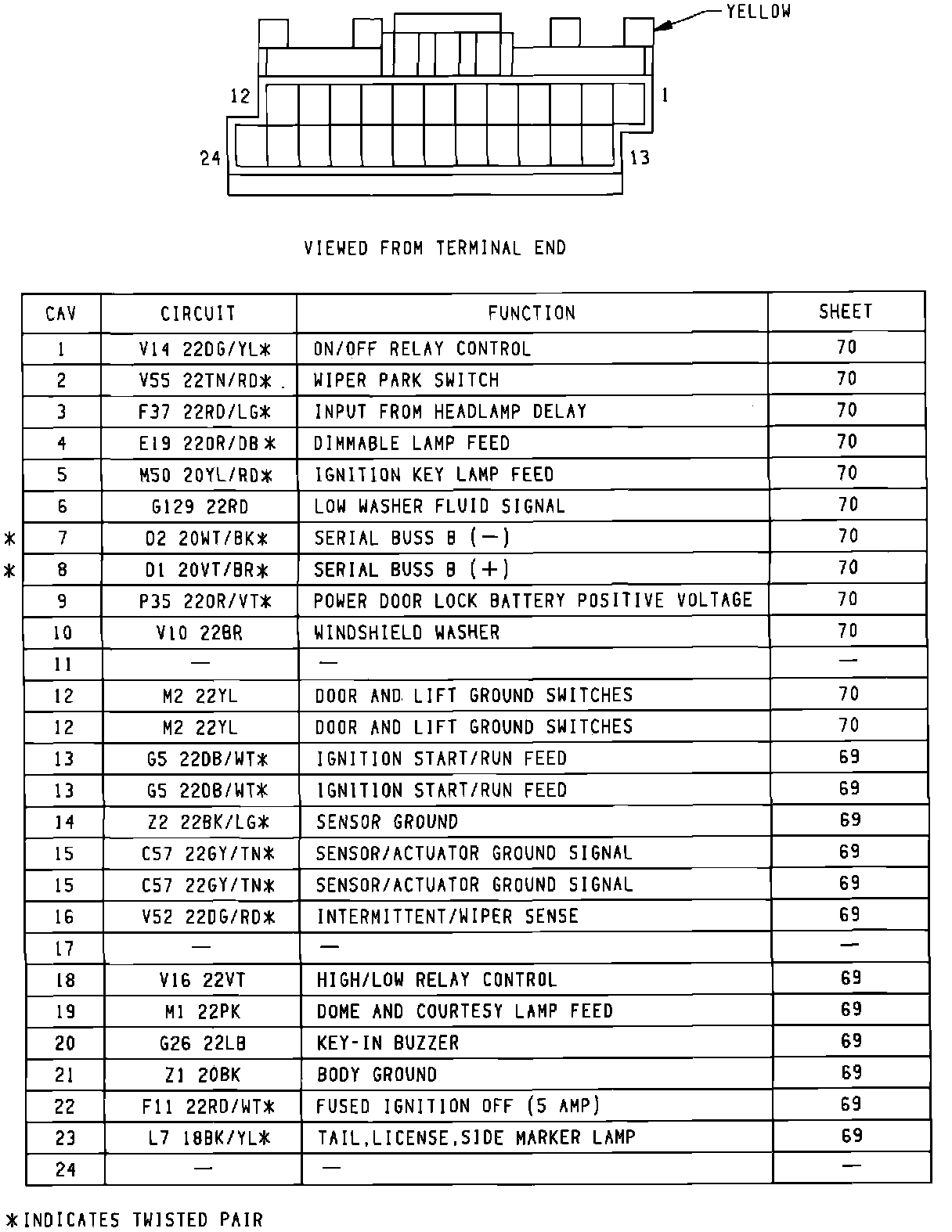

Yellow Color Connector With Circuit ID:

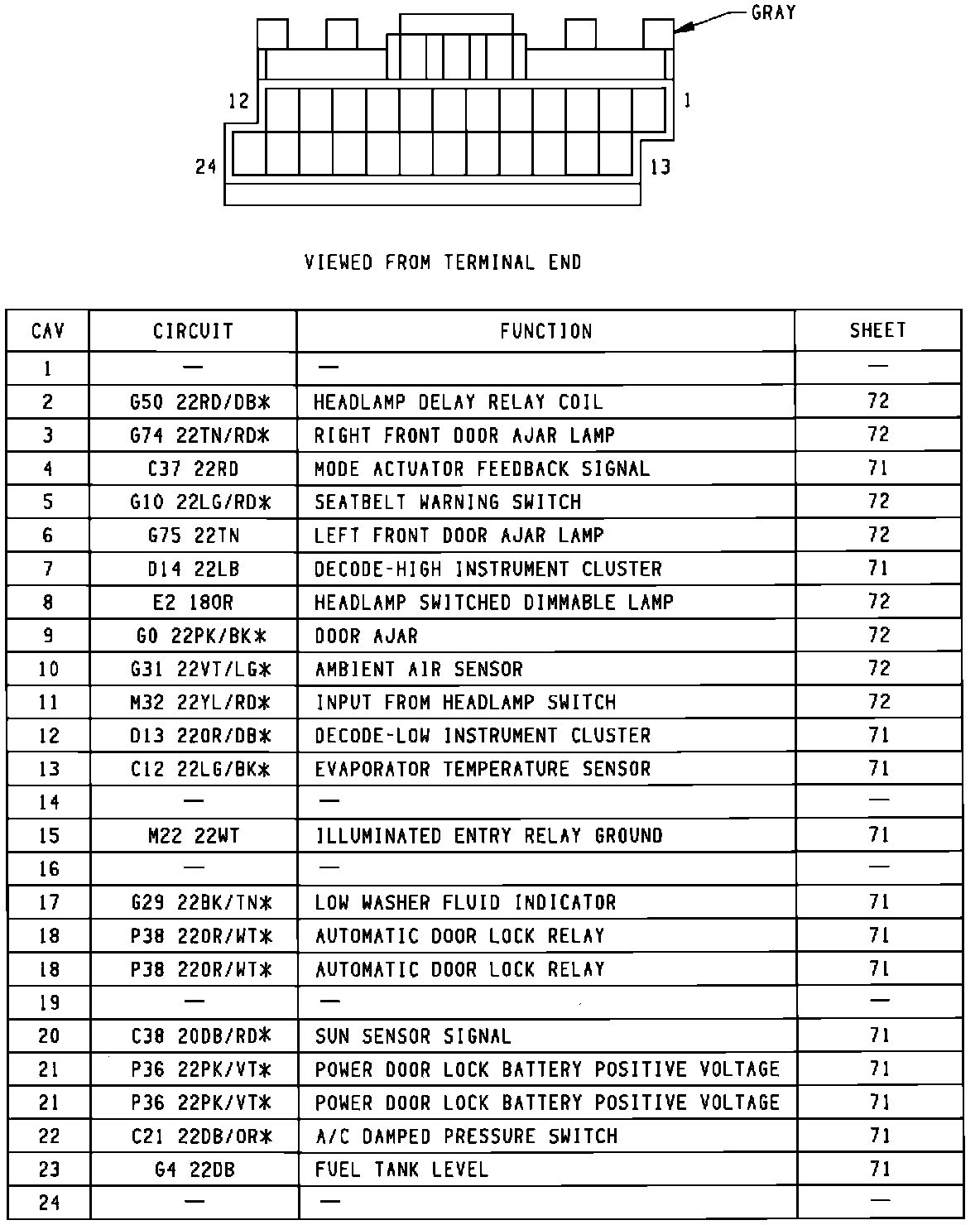

Grey Color Connector With Circuit ID:

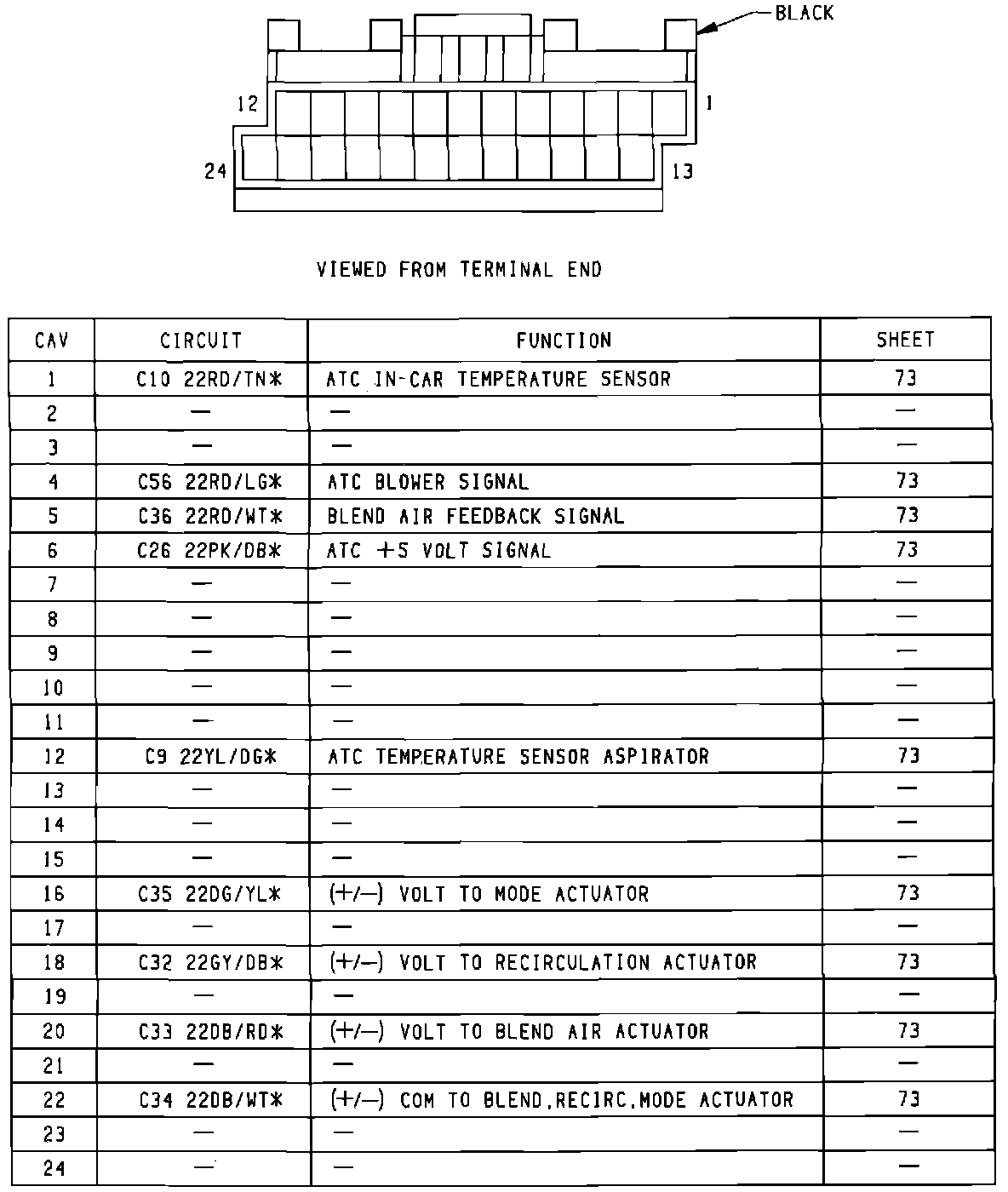

Black Color Connector With Circuit ID:
