Misc. Engine Components

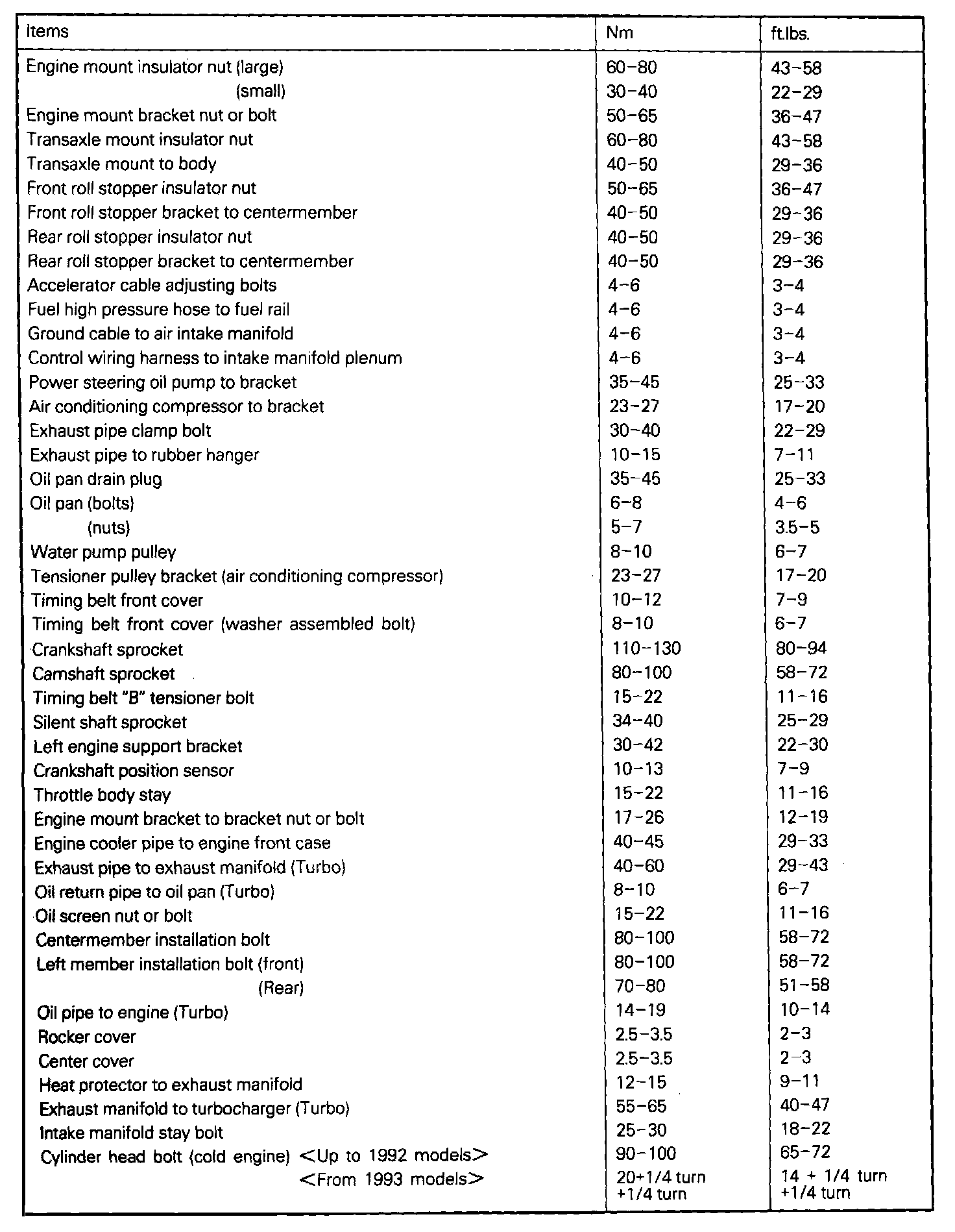

TORQUE SPECIFICATIONS

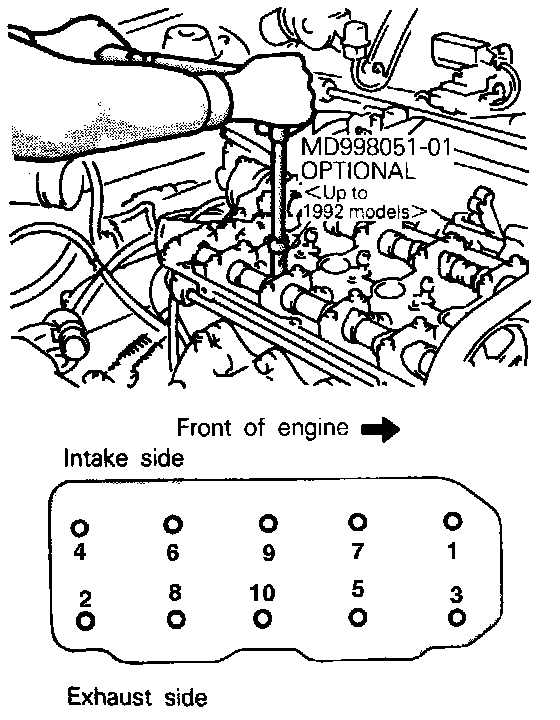

REMOVAL OF CYLINDER HEAD BOLT





INSTALLATION OF CYLINDER HEAD BOLT
