Wiring Diagrams

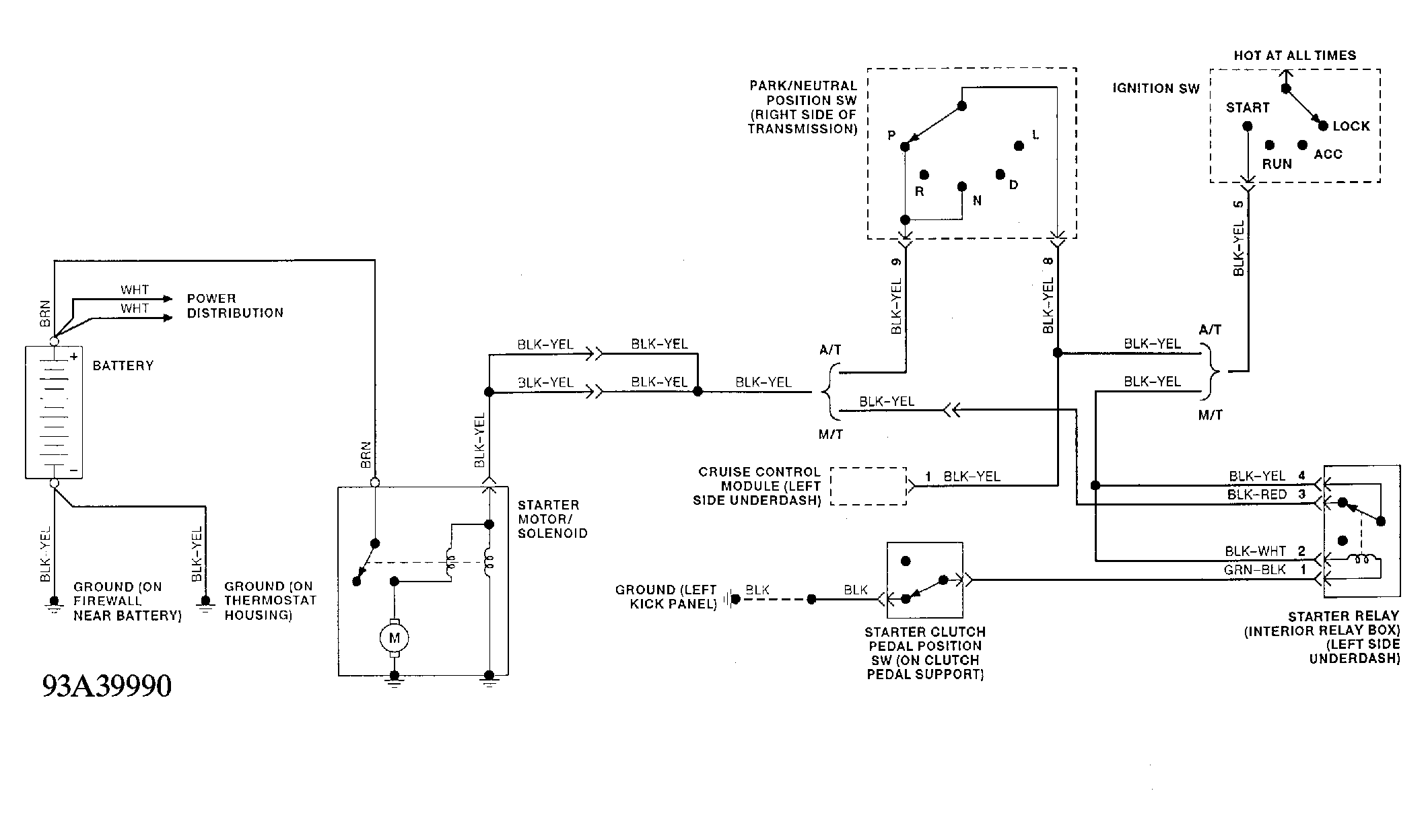

Fig 1: Starter System Wiring Diagram (Laser & Talon)
G93A39990

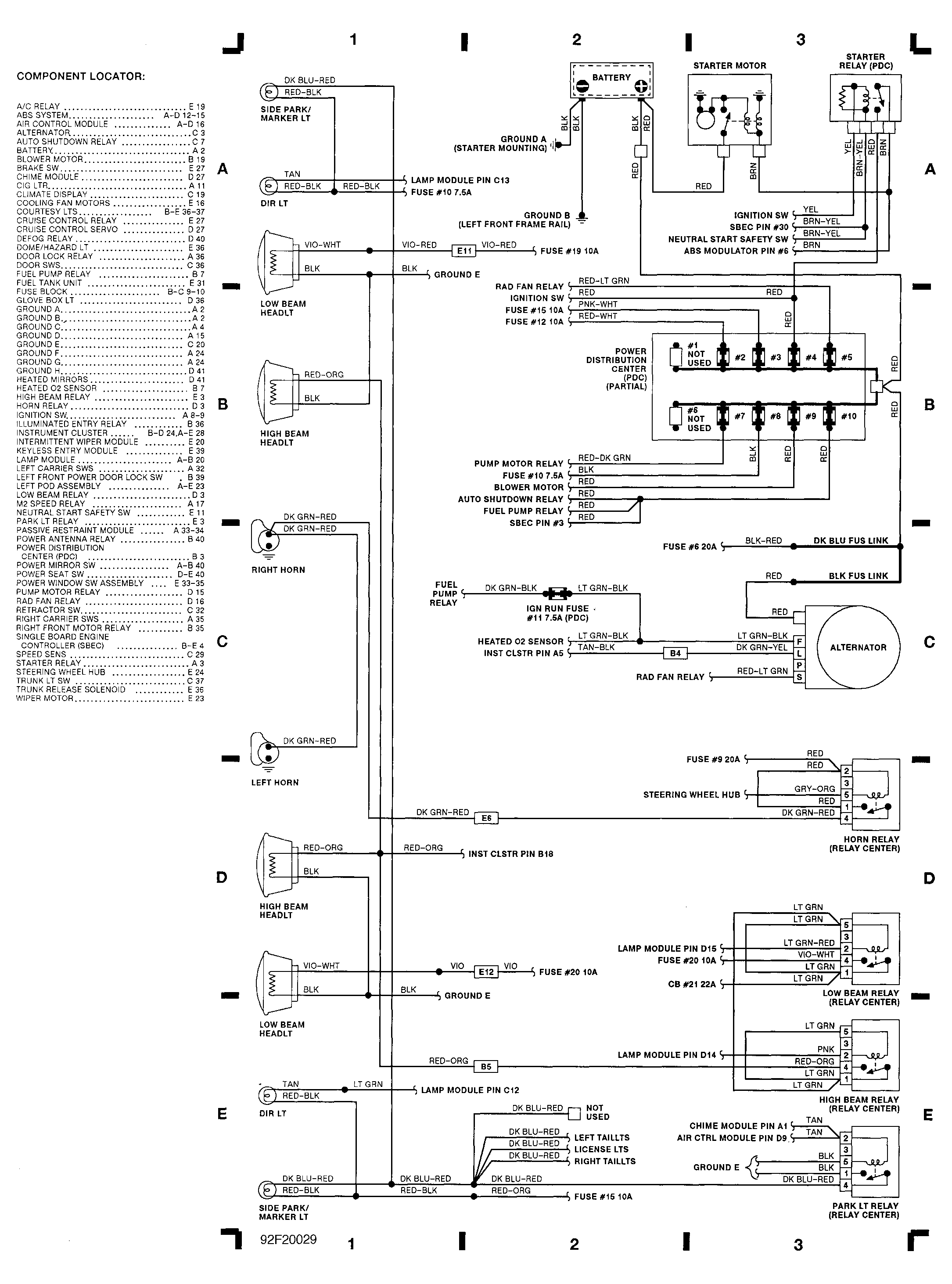

Fig 2: Engine Compartment Wiring Diagram (Monaco & Premier)
G92F20029
