Throttle Position Sensor: Locations

Throttle Position Sensor:

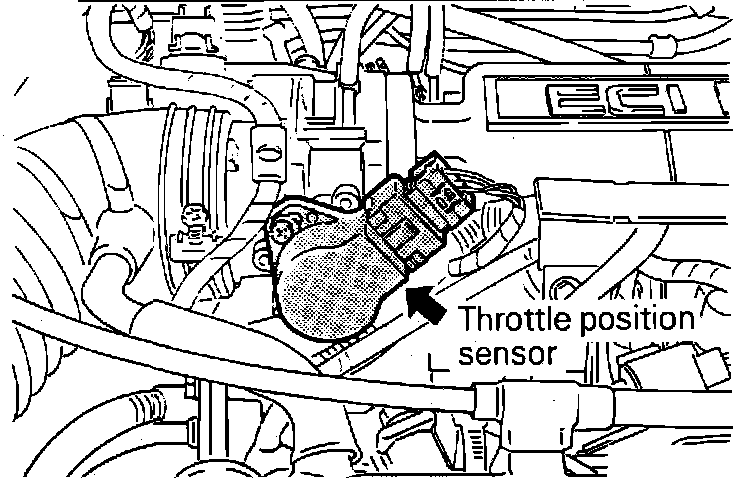

The throttle position sensor is mounted on the throttle body.
