Test 21E: Hydraulic Pump/Motor Circuit Test

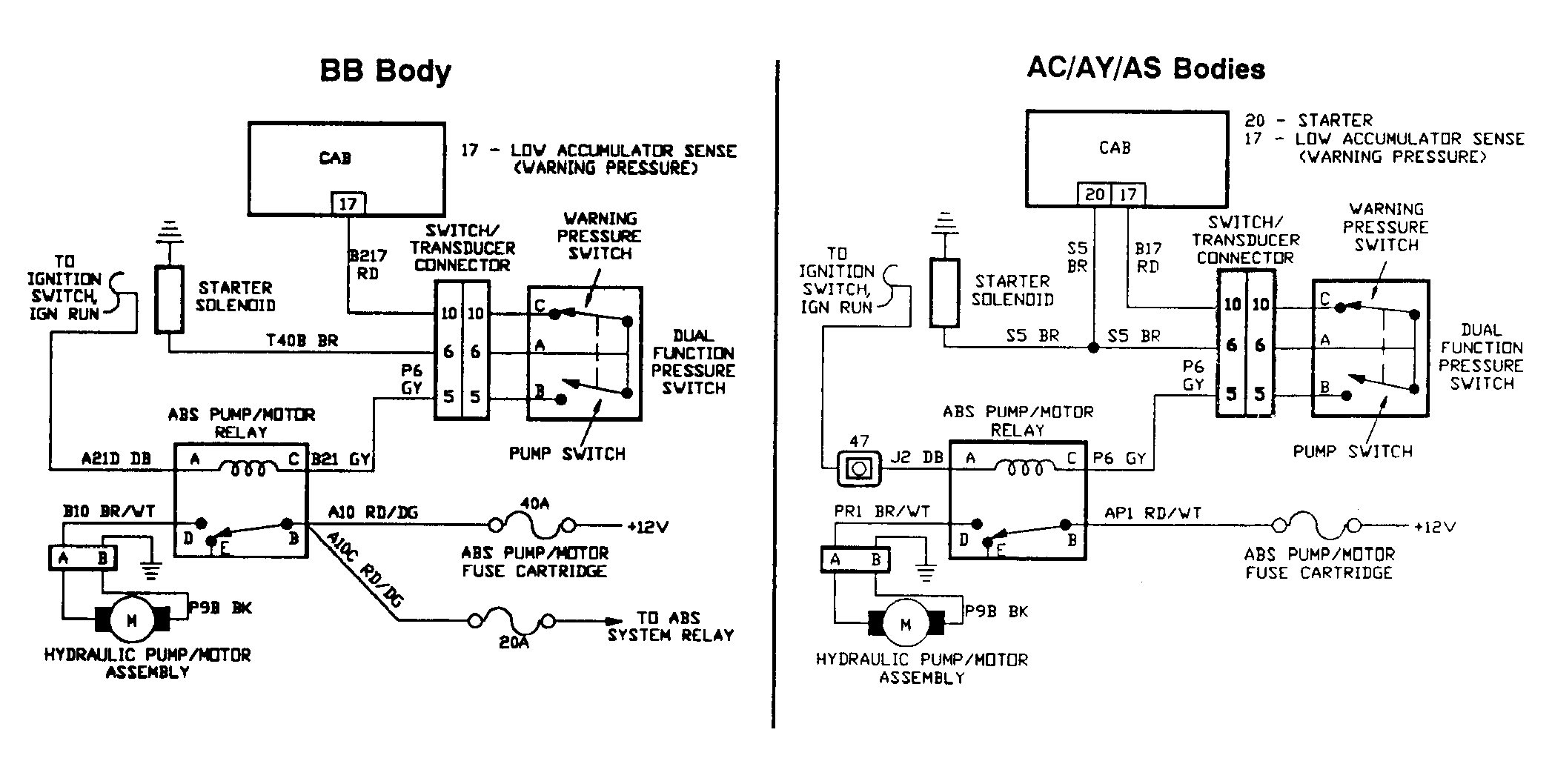

Fig 1: Test 21E - Hydraulic Pump/Motor Circuit Test, Schematic
G91B10869
Fig 2: Test 21E - Hydraulic Pump/Motor Circuit Test, Flow Chart
G91C11512
