Checking Fluid Levels: Differentials

With vehicle on level surface, fluid level should be at the bottom of fill plug hole. See Fig 1.

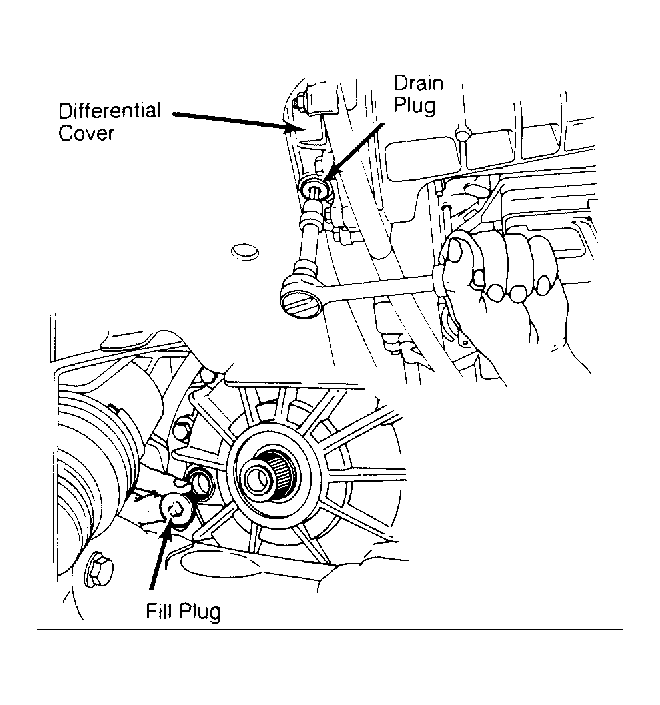

Fig 1: Identifying Differential Drain & Refill Plugs (ZF 4HP-18)

Courtesy of CHRYSLER MOTORS.
