Dr-12A: Testing Fuel Pump Sense

Fig 1: Driveability Test DR-12A: Circuit Diagram
G91G10773

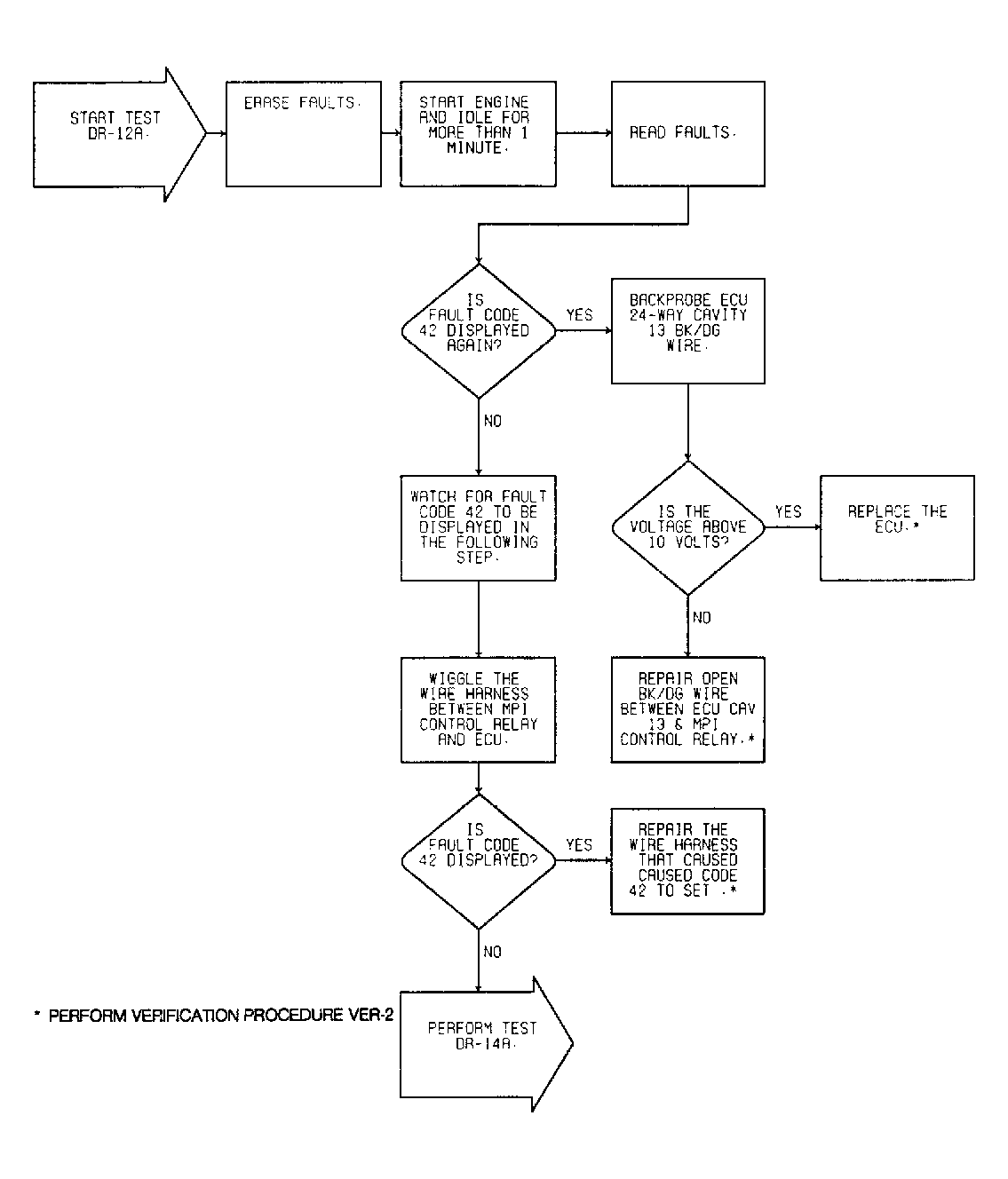

Fig 2: Driveability Test DR-12A: Diagnostic Flow Chart
G91F11127
Fig 3: Test DR-12A
GB0044654
