Power Window Relay: Locations

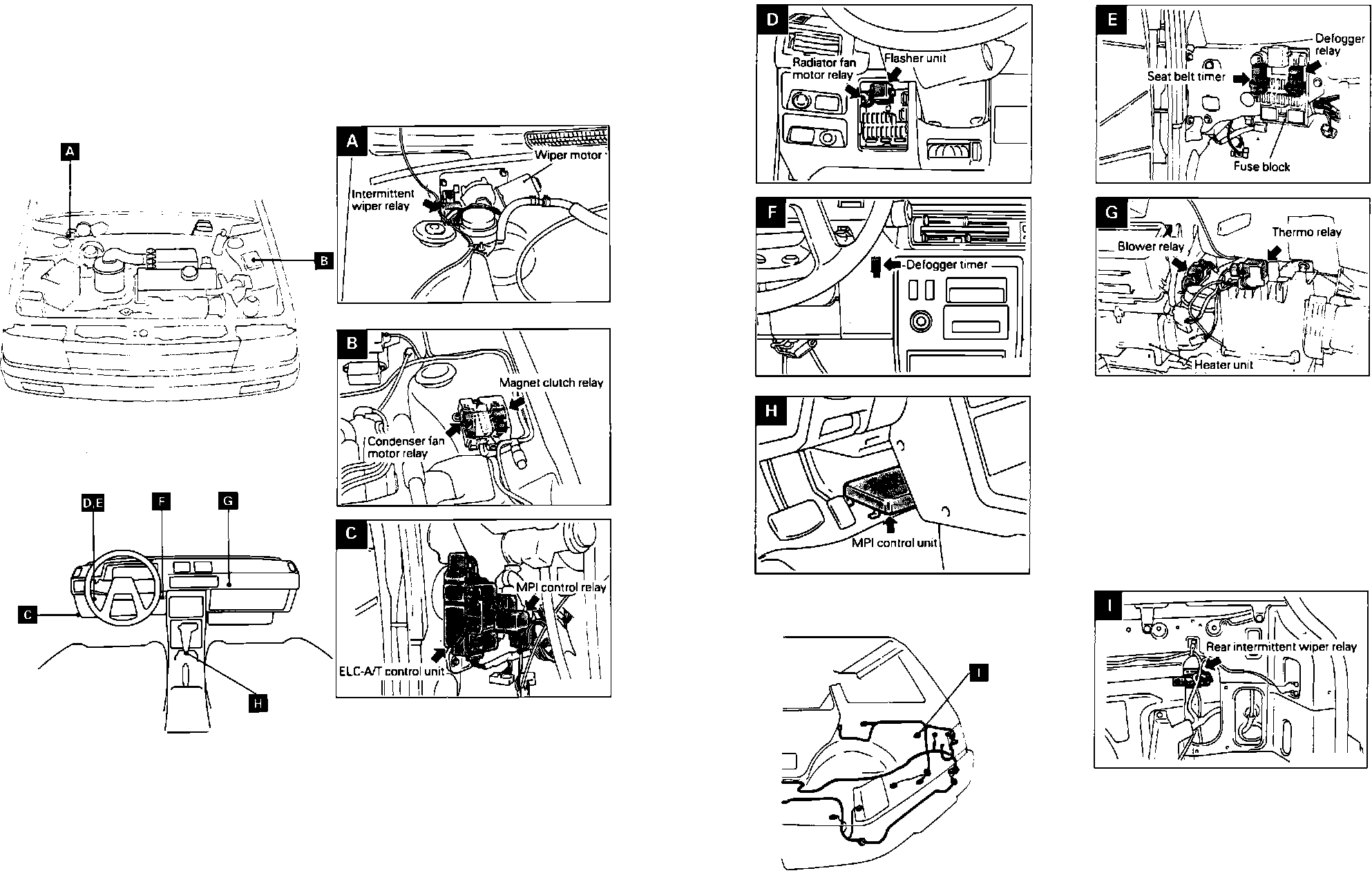

Relay Locations.:




RH Side Of Engine Compartment

Applicable to: Colt & Summit

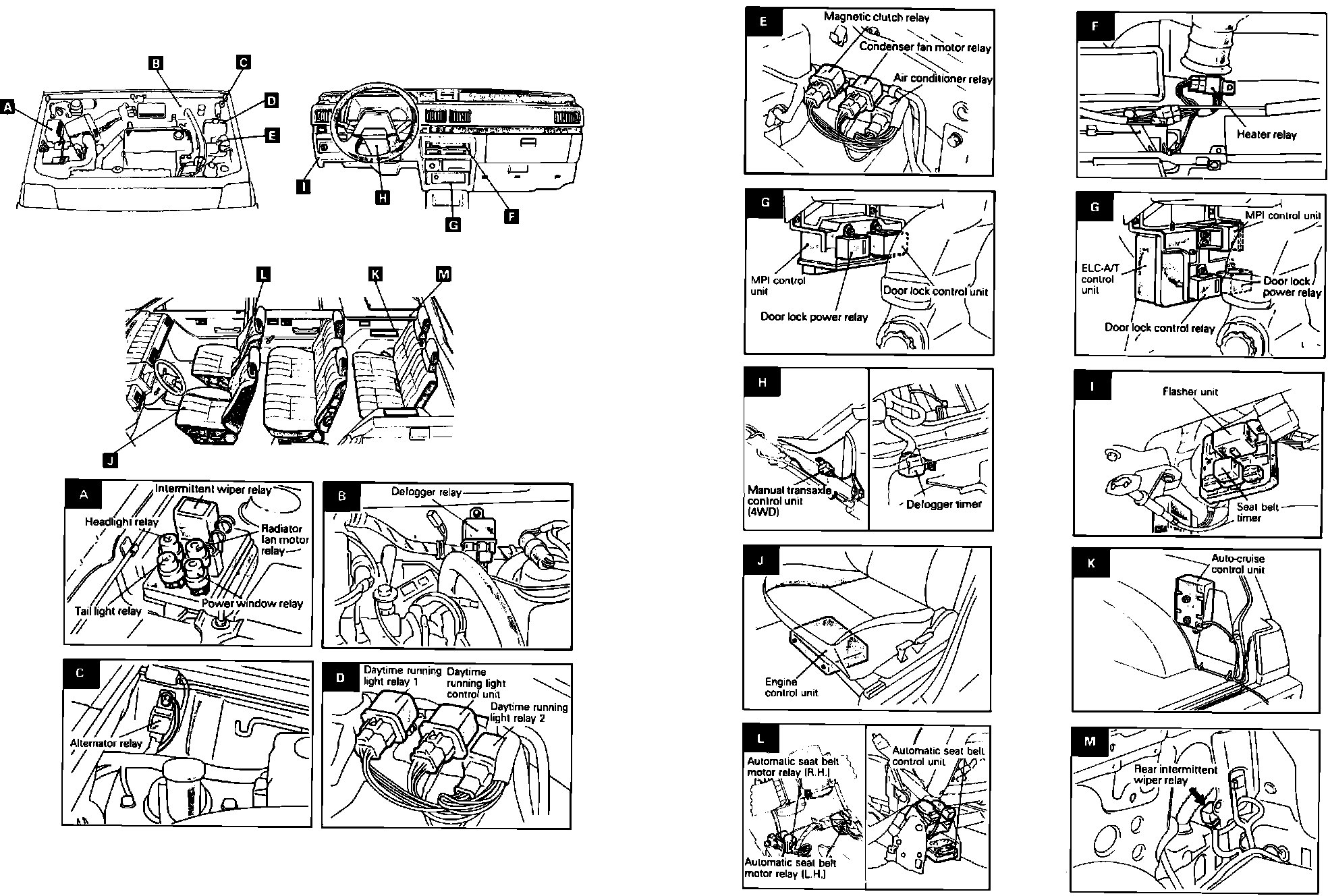

Control Unit & Relay Locations.:




In Fuse Block, Behind LH Side Of I/P

Applicable to: Colt Wagon

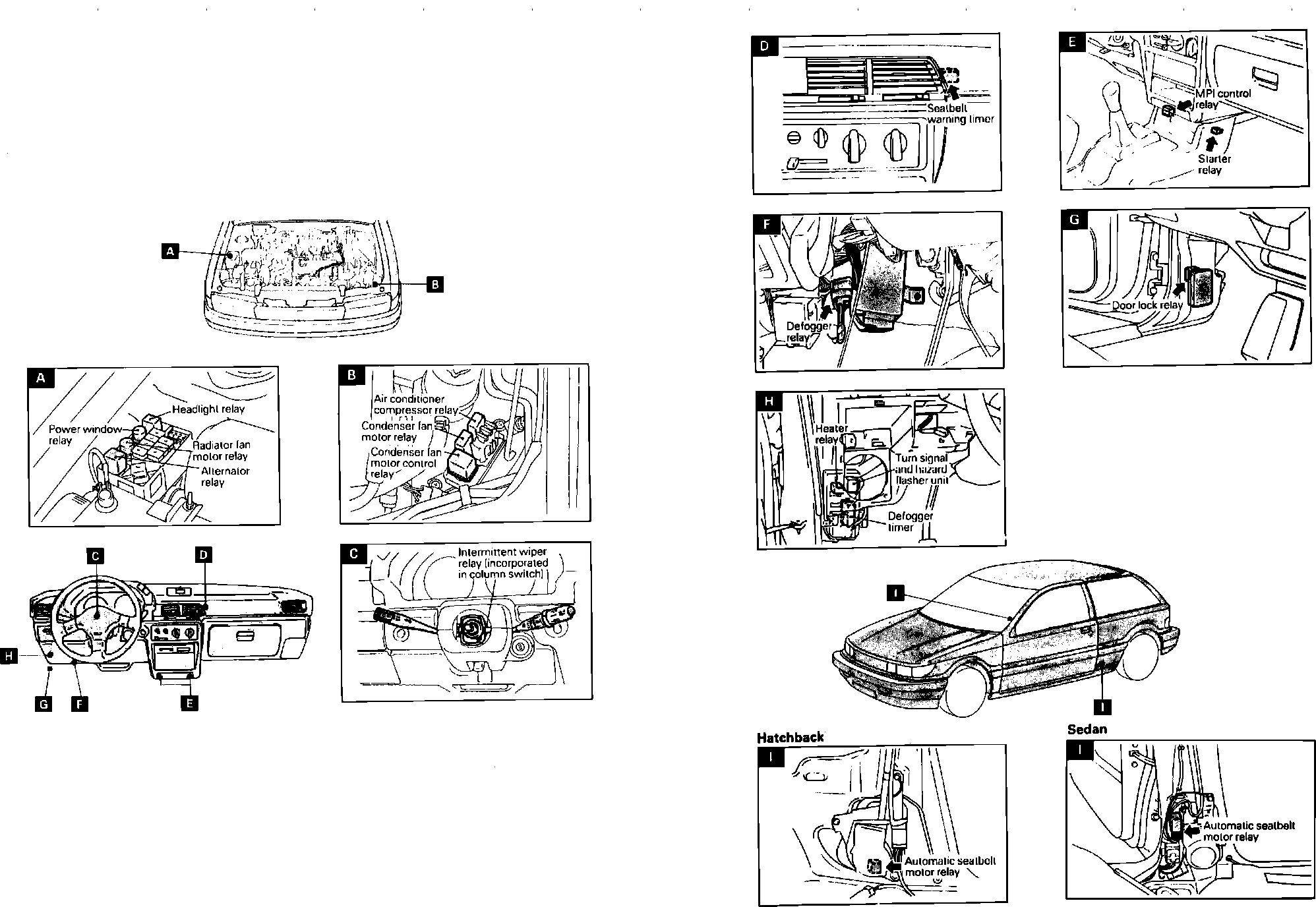

Control Unit & Relay Locations.:




RH Side Of Engine Compartment

Applicable to: Colt Vista
