Removal & Installation

  1. Remove the steering wheel and the horn pad. Refer to STEERING WHEEL & HORN PAD  under REMOVAL & INSTALLATION. Remove lower instrument panel cover (if equipped). Remove steering column covers.
  2. On all models, disconnect combination switch electrical connectors. Remove retaining screws and combination switch(s). See Fig 1. To install, reverse removal procedure.

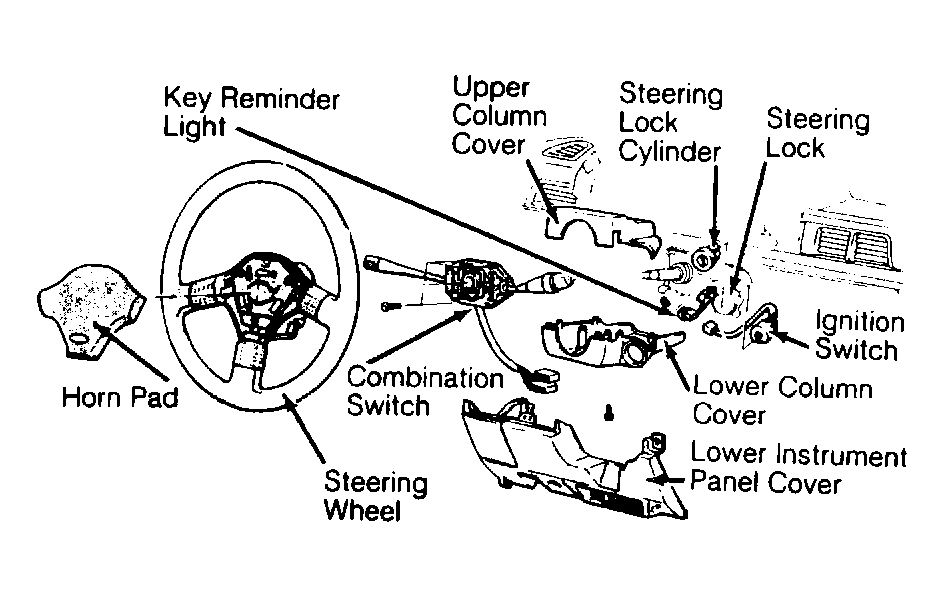

Fig 1: Exploded View of Steering Column Switches (Typical)
G90J02466Courtesy of CHRYSLER MOTORS.
