Dr-8: Checking Coolant Temperature Sensor (Cts)

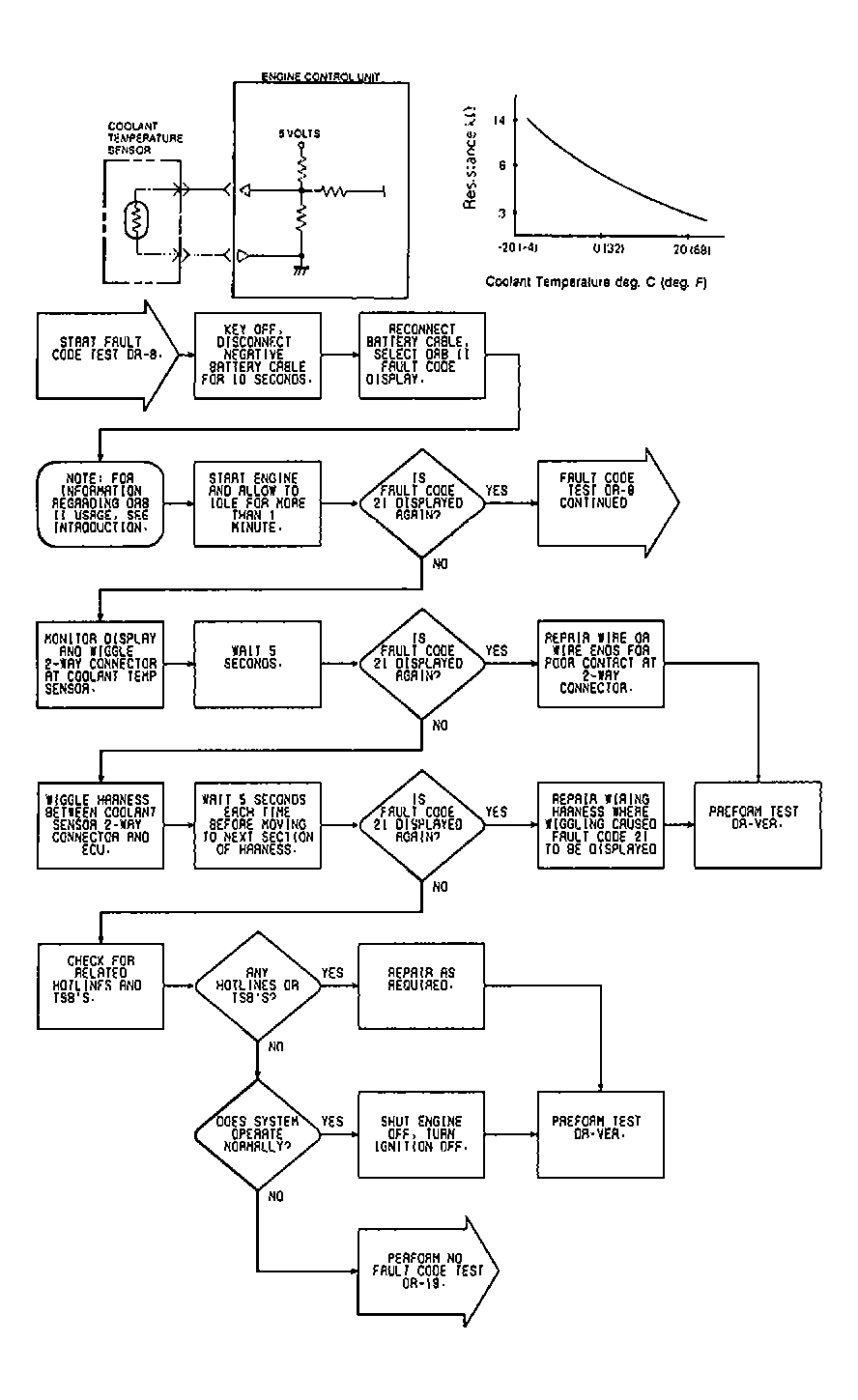

Fig 1: DR-8 Flow Chart & Circuit Diagram (2.0L) (1 of 2)

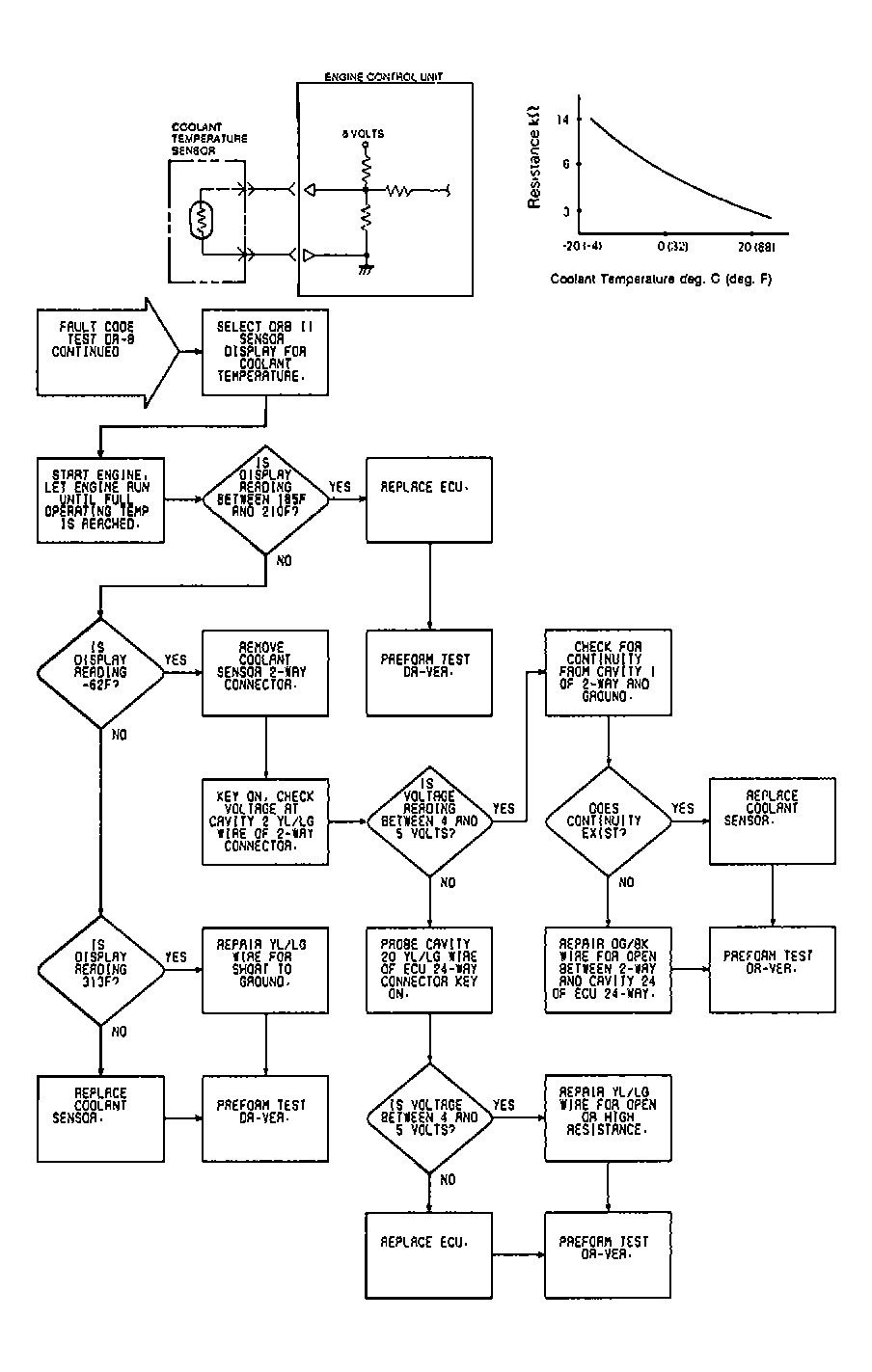

Fig 2: DR-8 Flow Chart & Circuit Diagram (2.0L) (2 of 2)
