Dr-19: No Fault Code EGR System Test - 1.6L
Fig 1: Circuit Diagram DR-19 (1.6L)

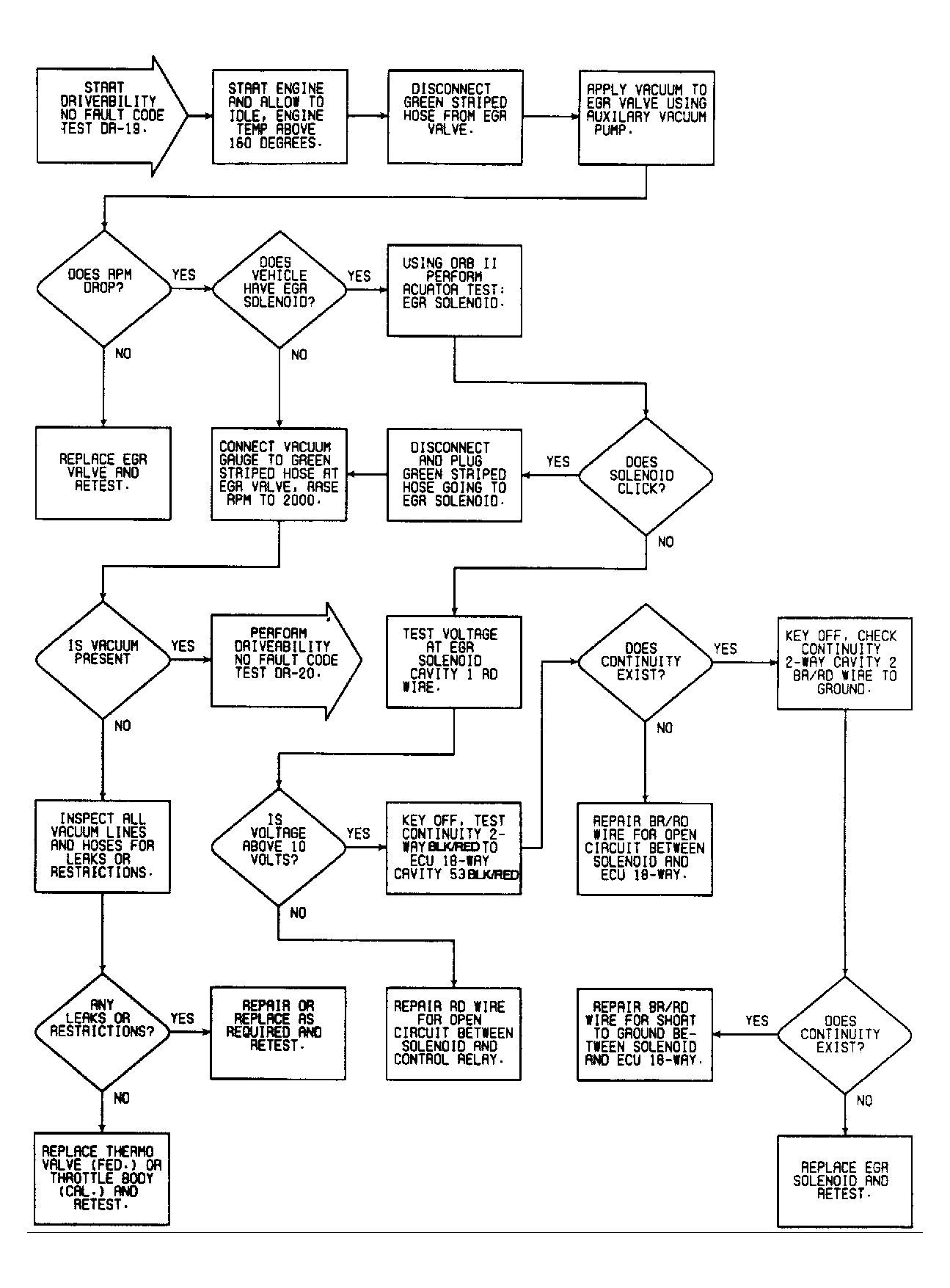

Fig 2: Flow Chart DR-19 (1.6L)
