Circuits Related To The Accelerator Switch Off Function (A/T)

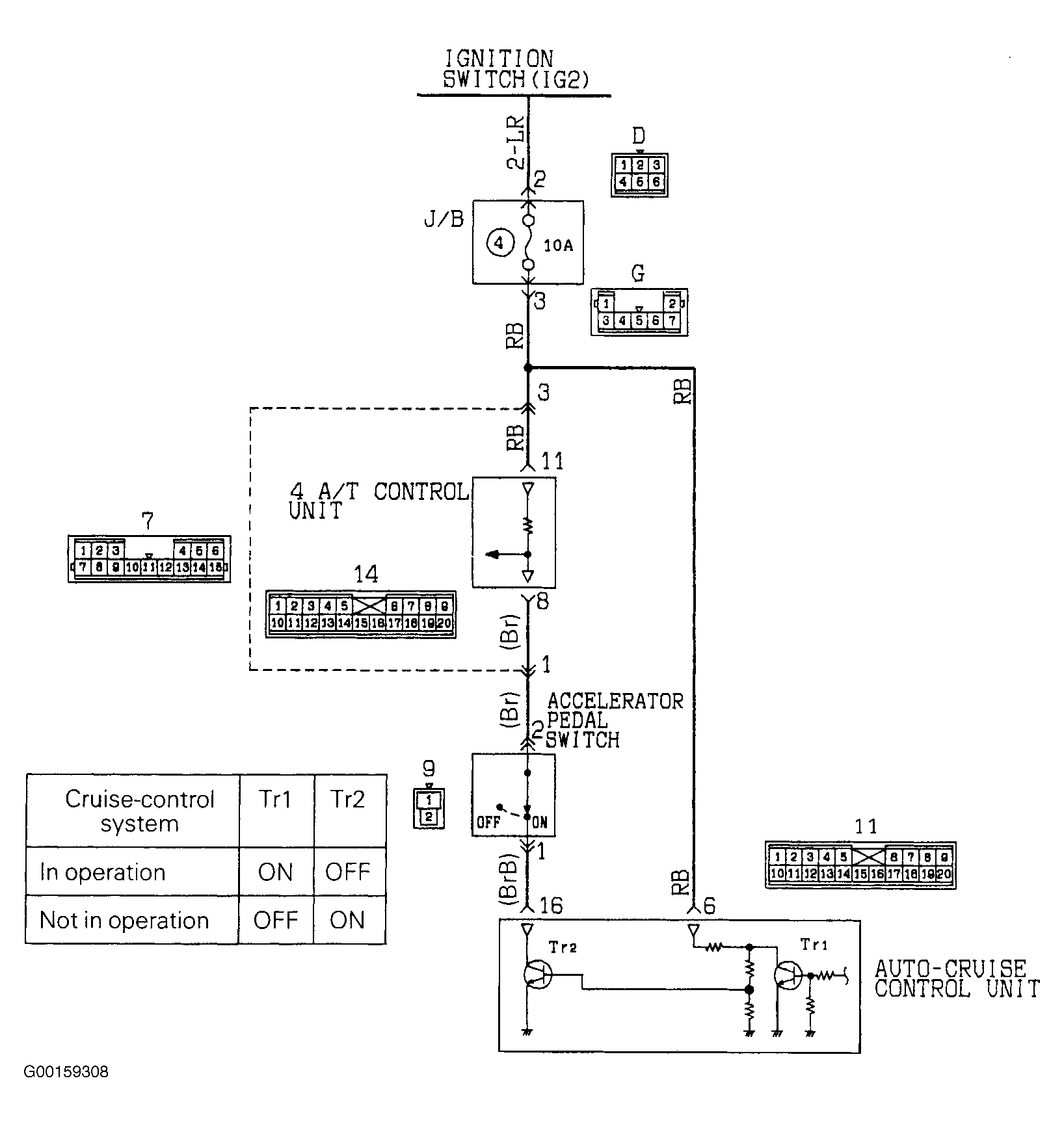

The accelerator switch is a switch that detects the operational status of the accelerator pedal; it is one of the sensors of the automatic transaxle. Because the status of the accelerator pedal during constant speed driving is non-operational, ground circuit (transistor Tr2) of the accelerator switch is switched off only during constant speed driving in order not to interfere with function of the automatic transaxle. See Fig 1 .
