Component Locations

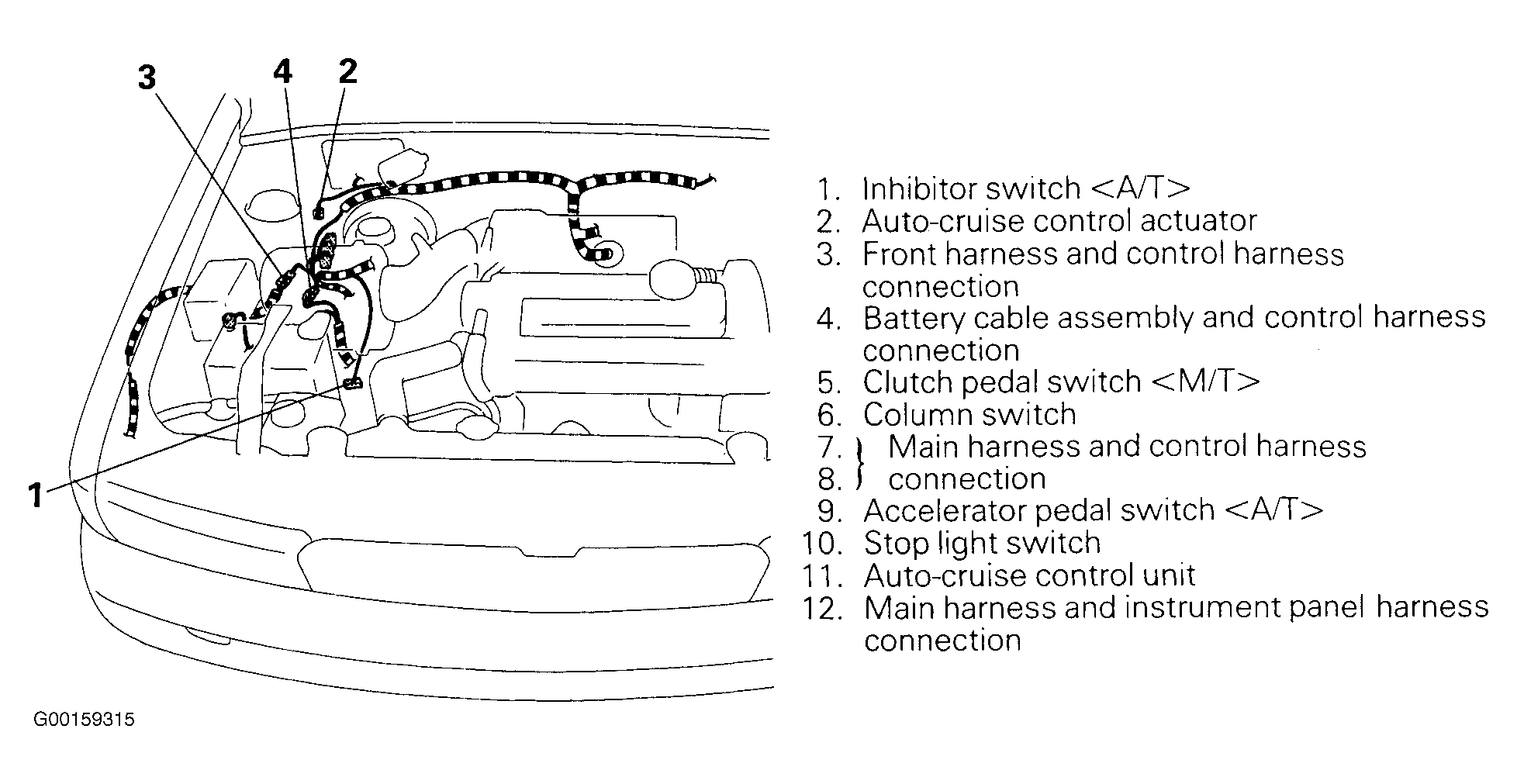

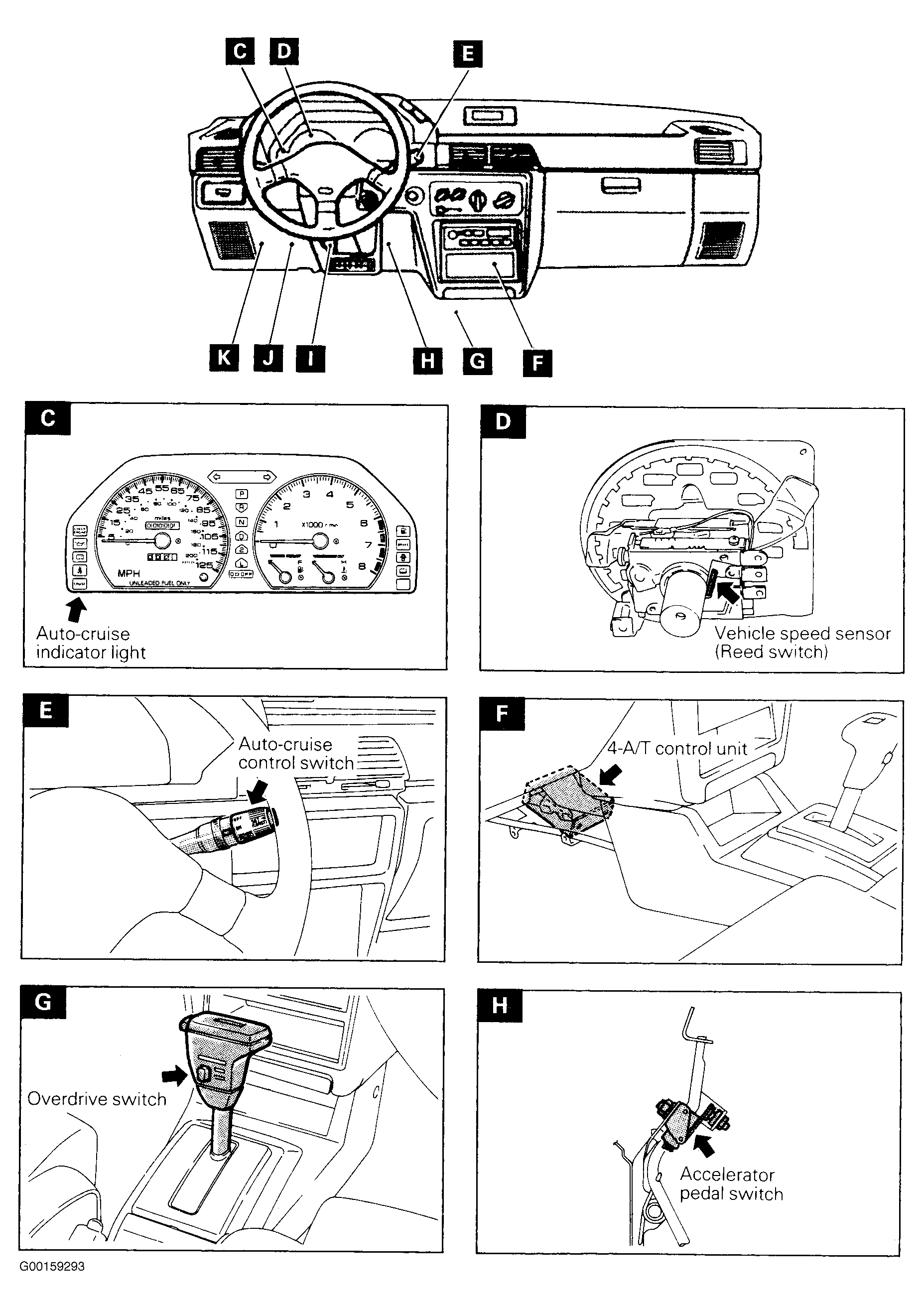

For additional component location information, see Fig 1 -Fig 6 .
COMPONENT LOCATIONS
| Name | Location | ||
|---|---|---|---|
| Accelerator Pedal Switch (A/T) | At Base Of Accelerator Lever. See Fig 2 . | ||

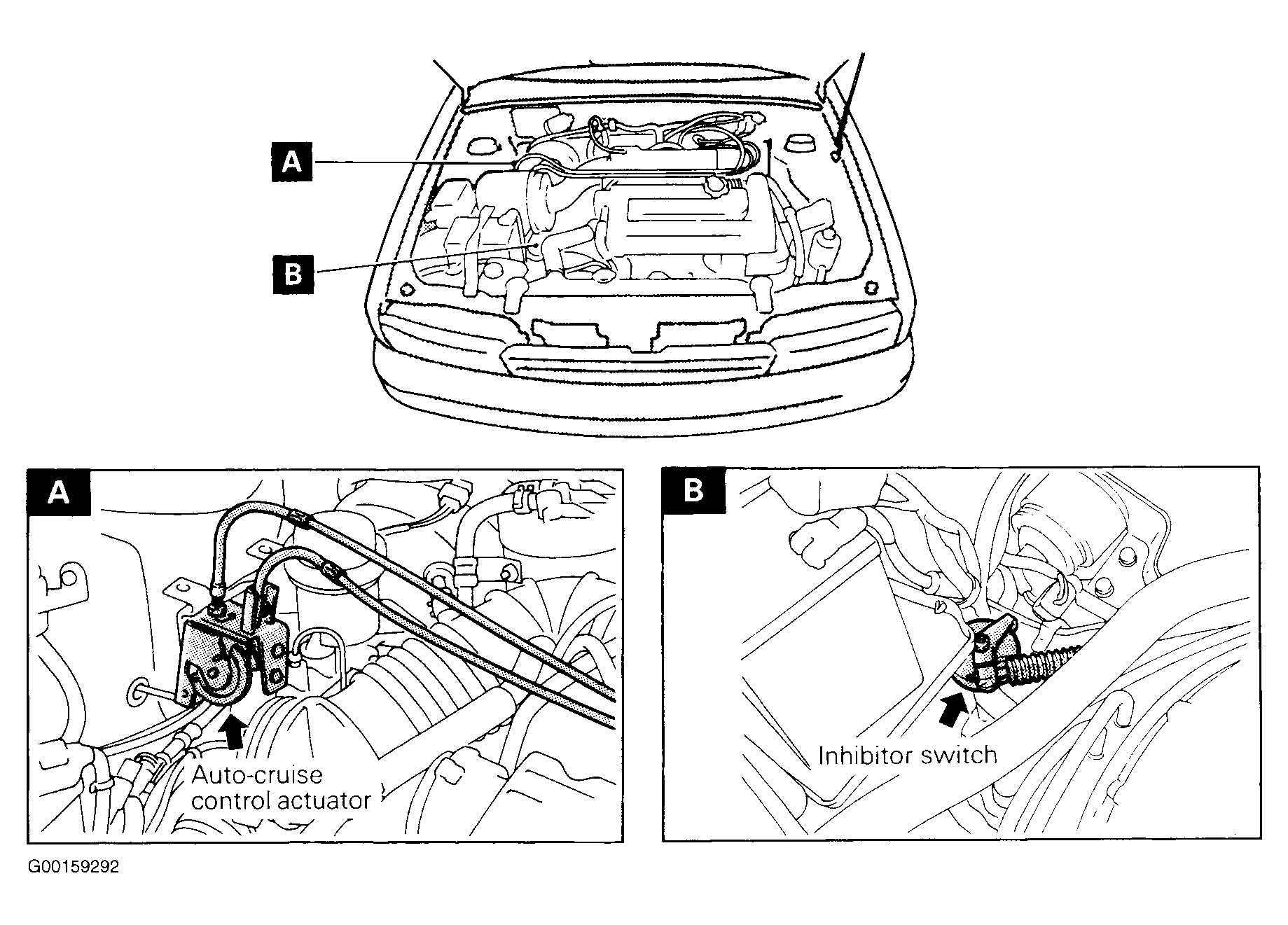

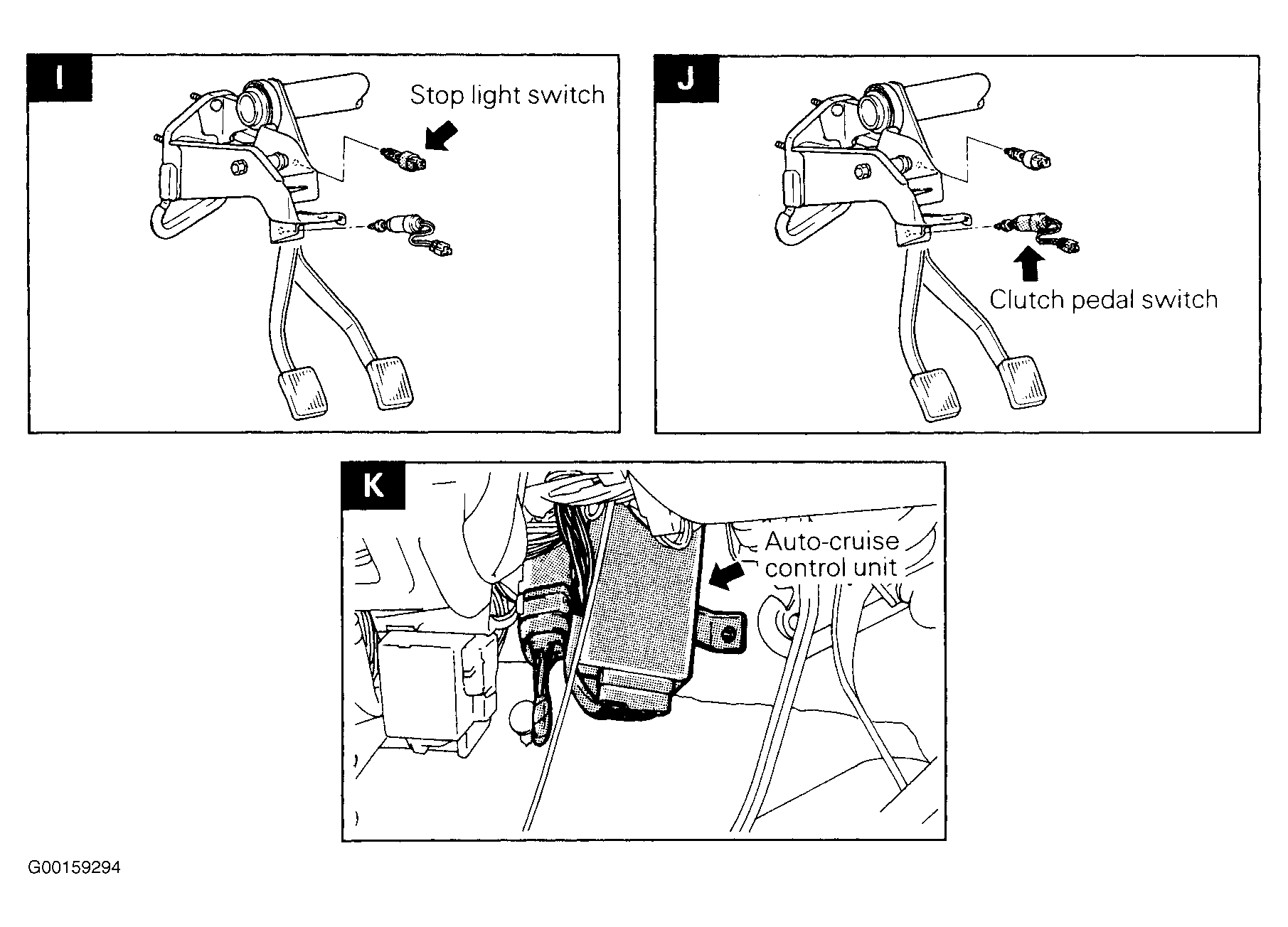

| Auto-Cruise Control Actuator | Left Side Of Engine Compartment On Firewall. See Fig 1 . | ||
| Auto-Cruise Control Switch | On Steering Column Multi Switch | ||
| Auto-Cruise Control Unit | Under Left Side Of Dash, Next To Fuse Block. See Fig 3 . | ||
| Auto-Cruise Indicator Light | Lower Left Corner Of Instrument Panel | ||
| Body Ground No. 6 (1) | Behind Instrument Cluster, On Dash Support Bar. | ||
| Body Ground No. 8 (1) | Behind Center Console, Right Side. | ||
| Clutch Pedal Switch (M/T) | At Base Of Clutch Pedal. See Fig 3 . | ||
| Inhibitor Switch (A/T) | Right Front Of Transaxle, Below Battery. See Fig 1 | ||

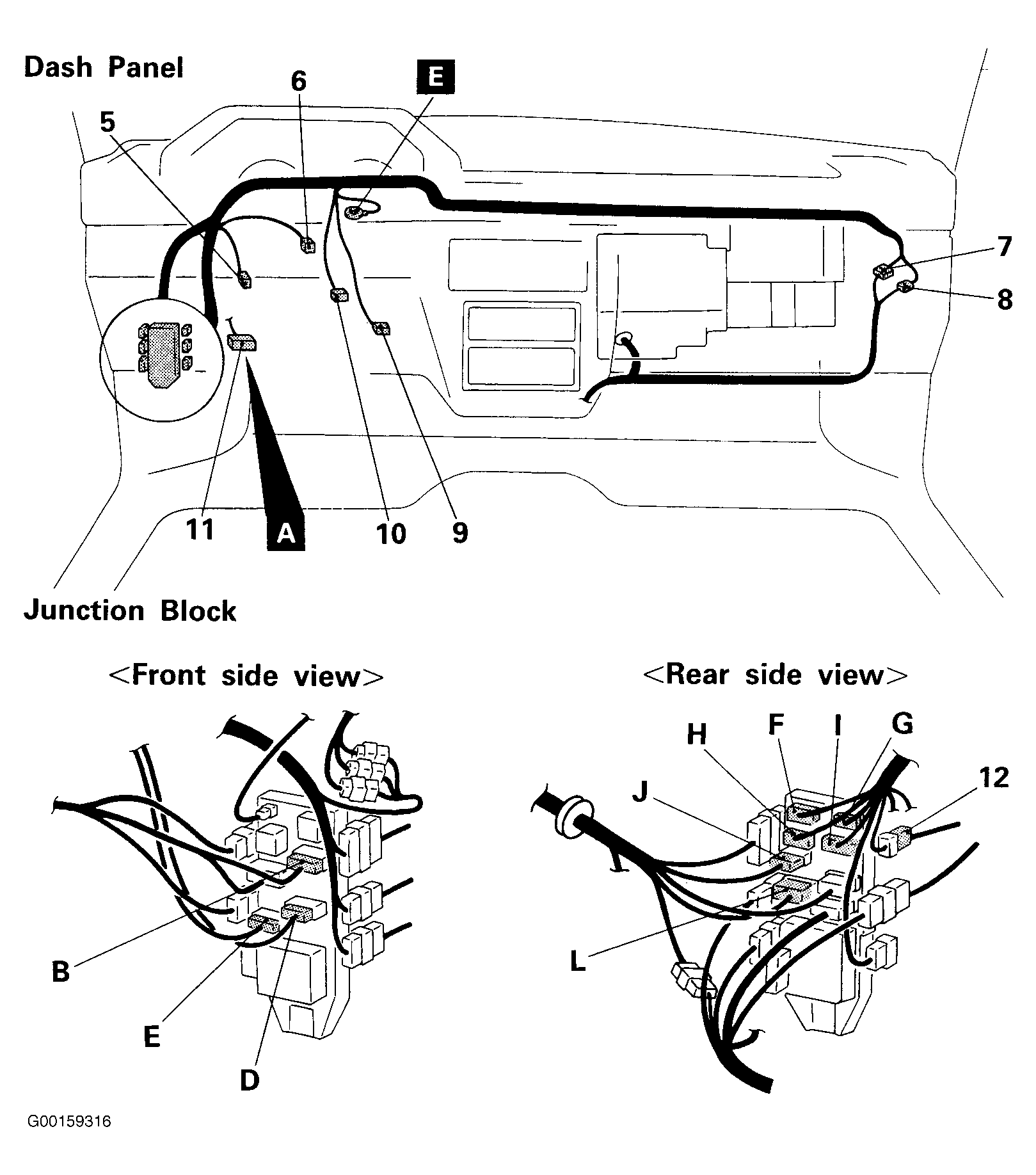

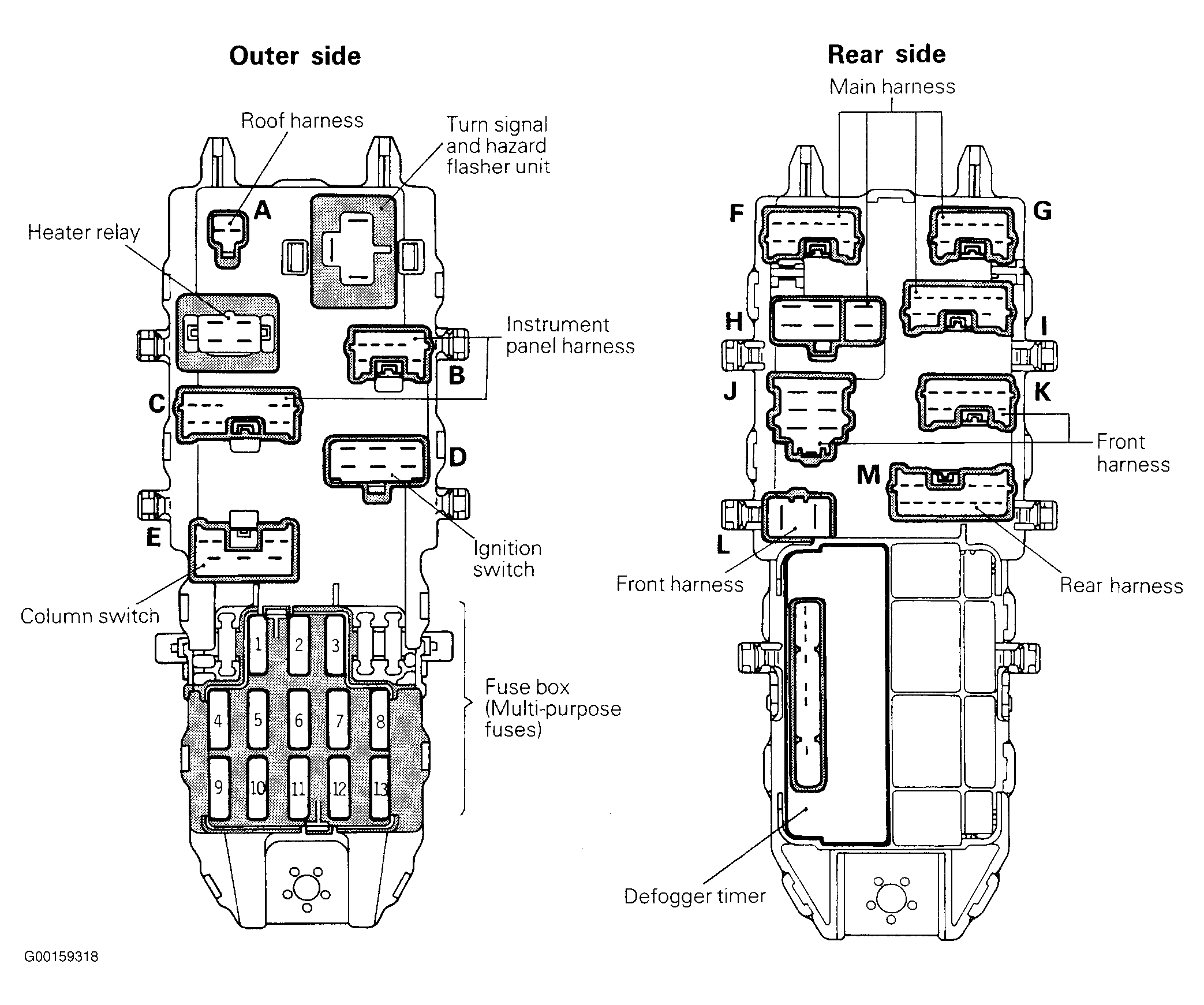

| Junction Block | Under Driver's Side Of Instrument Panel. See Fig 7 . | ||
| Overdrive Switch (A/T) | On Back Side Of Shift Lever. See Fig 2 . | ||

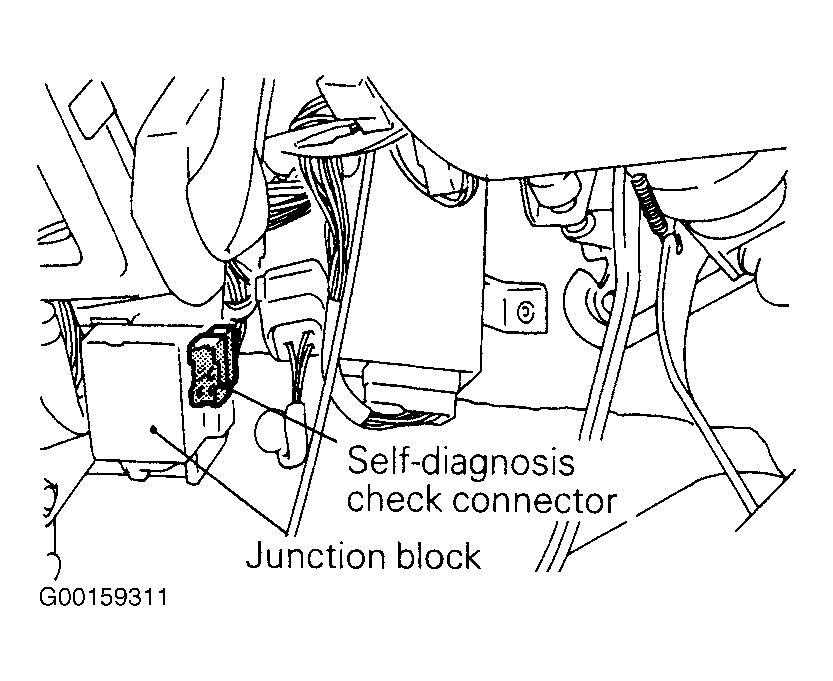

| Self-Diagnosis Check Connector | Under Driver's Side Of Instrument Panel. See Figure . | ||
| Stop Light Switch (A/T) | At Base Of Parking Brake Lever. See Fig 3 . | ||
| Vehicle Speed Sensor (Reed Switch) | On Rear Of Speedometer Assembly. See Fig 2 . | ||

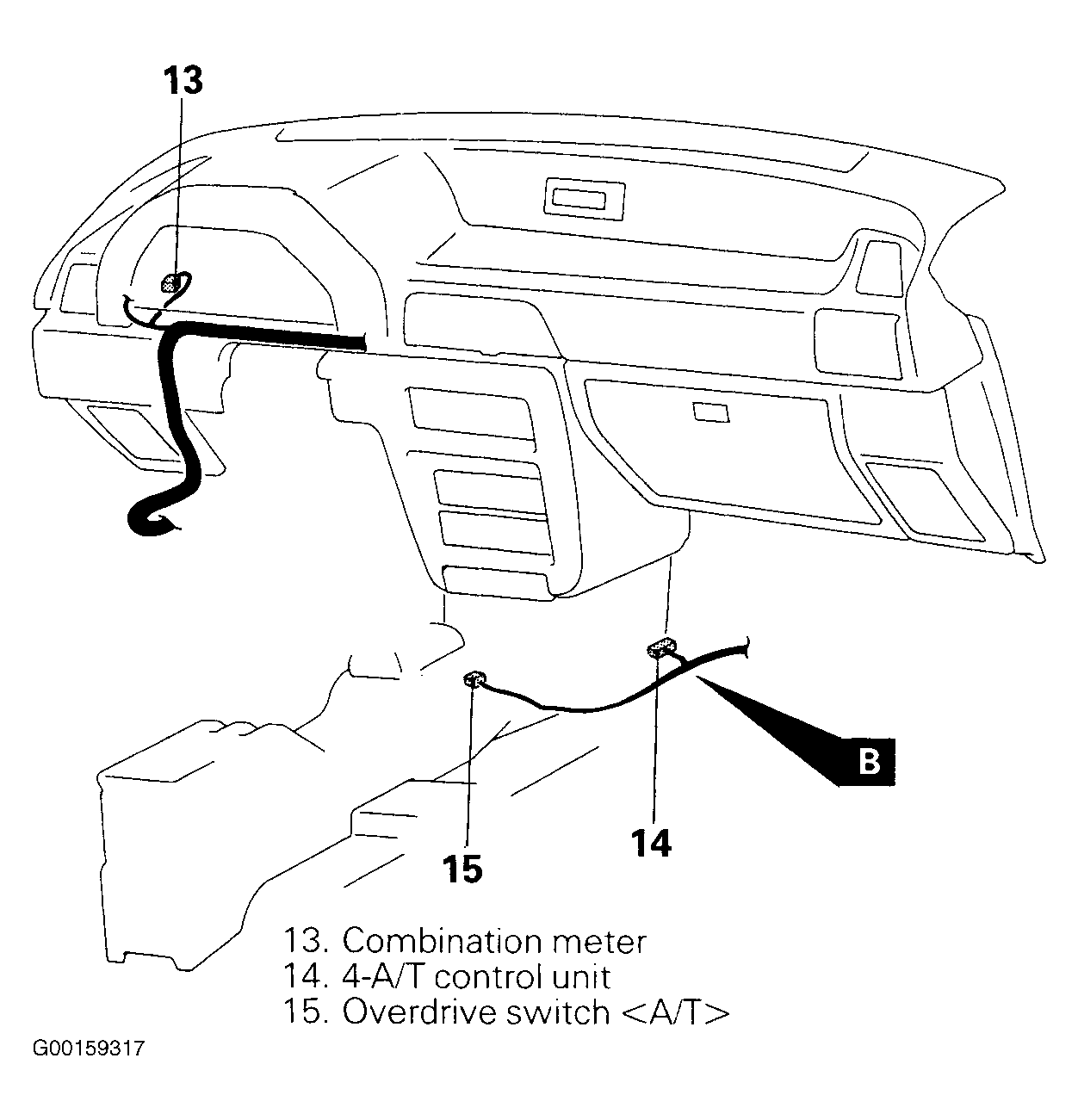

| 4-A/T Control Unit | Behind Center Console Panel. See Fig 2 . | ||
|
|||
