Fault 1209 - All Injectors Open

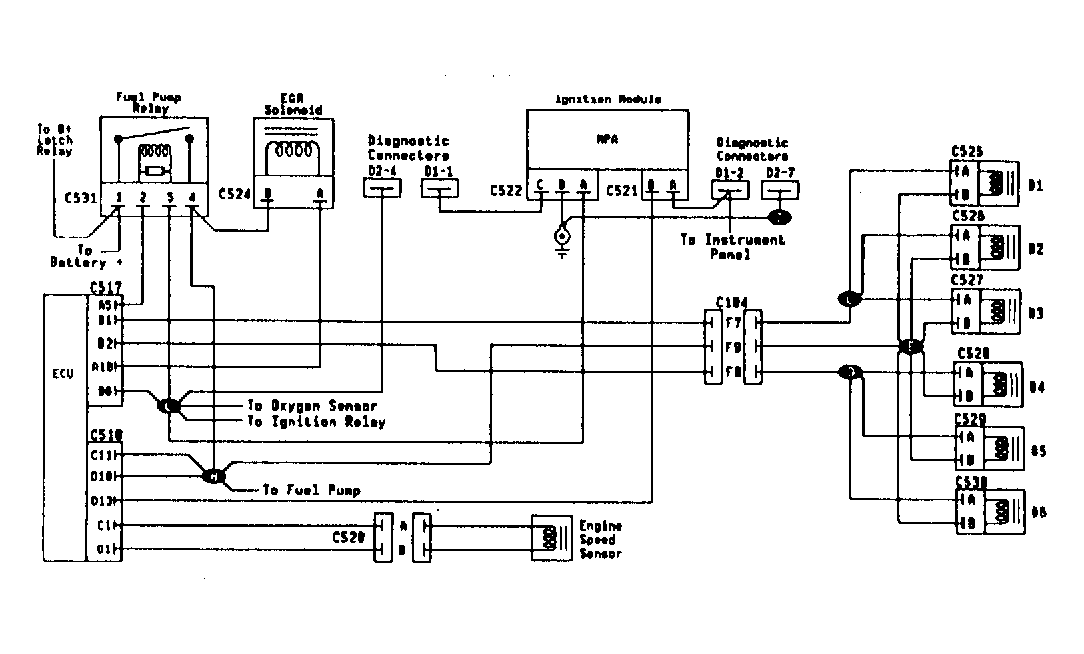

Fig 1: Fault 1209 - All Injectors Open Schematic

Courtesy of CHRYSLER MOTORS

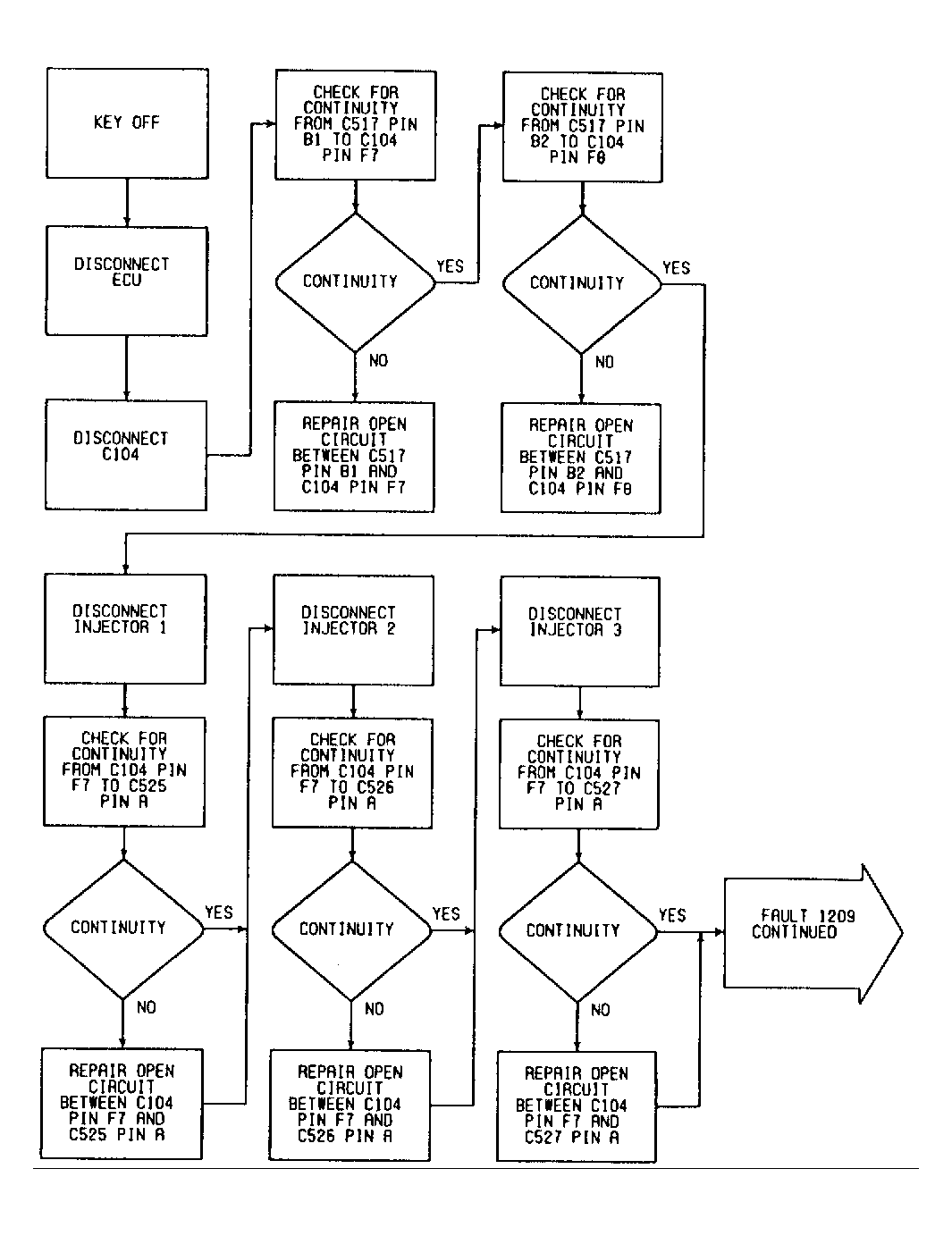

Fig 2: Fault 1209 (1 of 2) - Flow Chart

Courtesy of CHRYSLER MOTORS

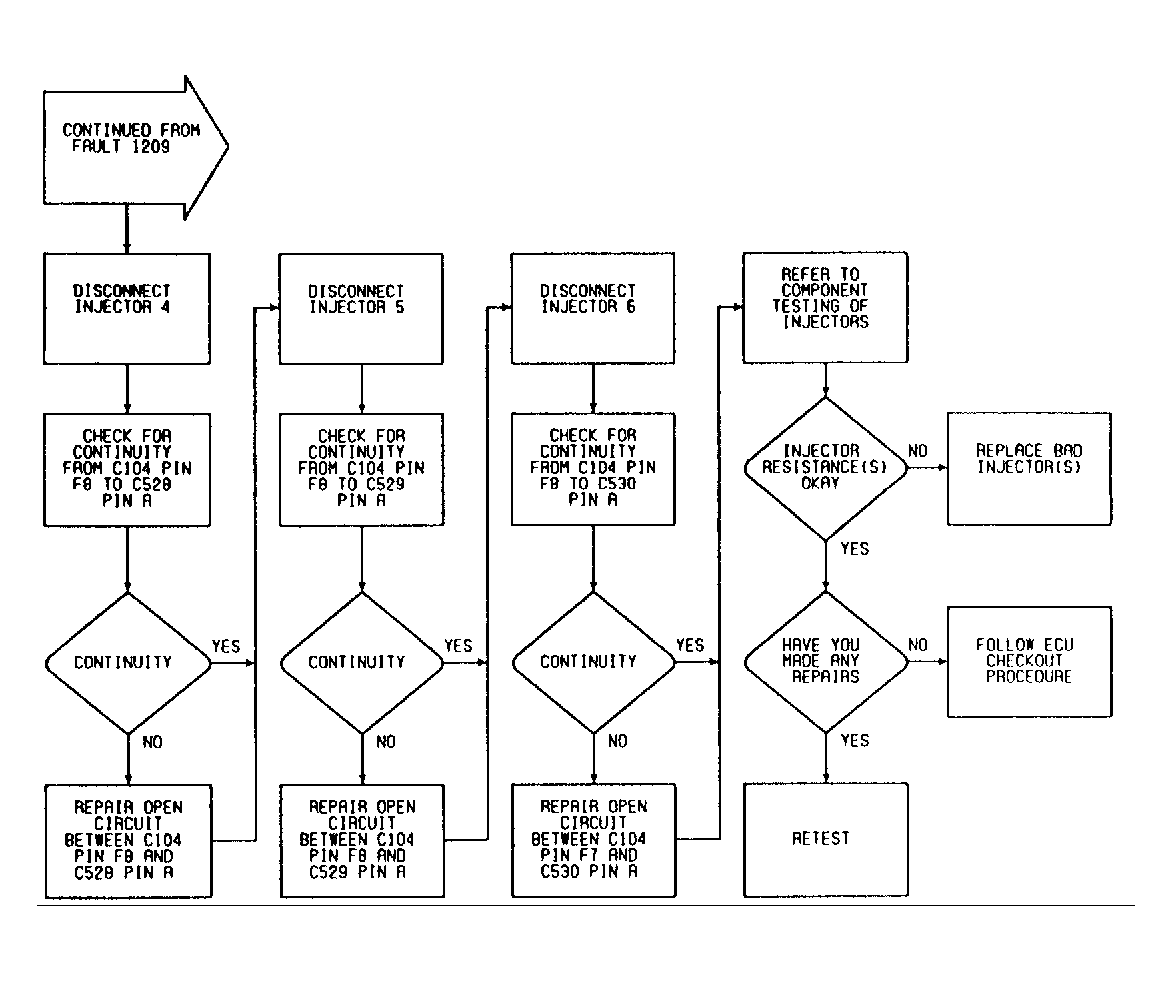

Fig 3: Fault 1209 (2 of 2) - Flow Chart

Courtesy of CHRYSLER MOTORS
