How to Use Complete Body and Chassis Diagrams

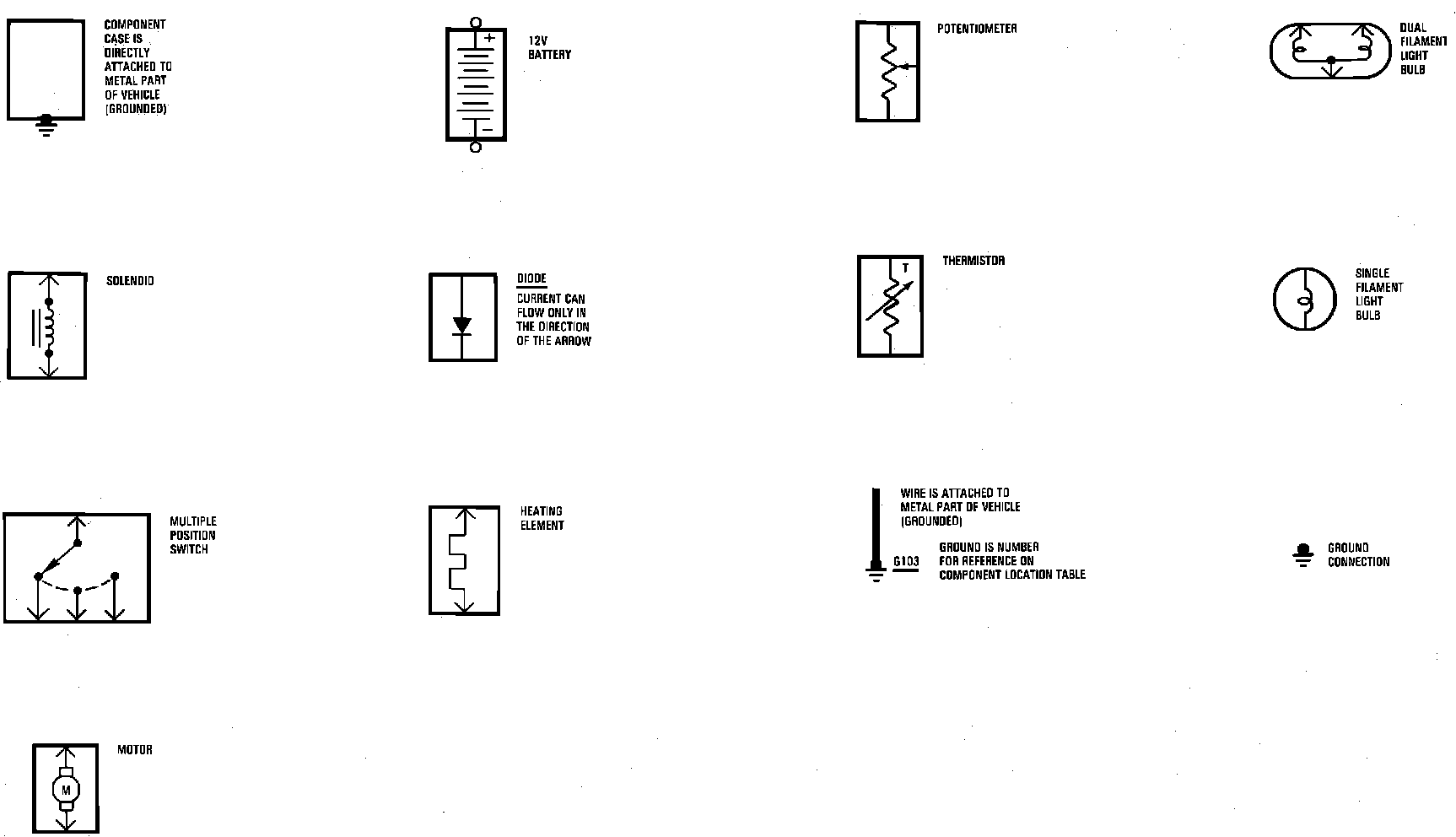

Symbol Identification:

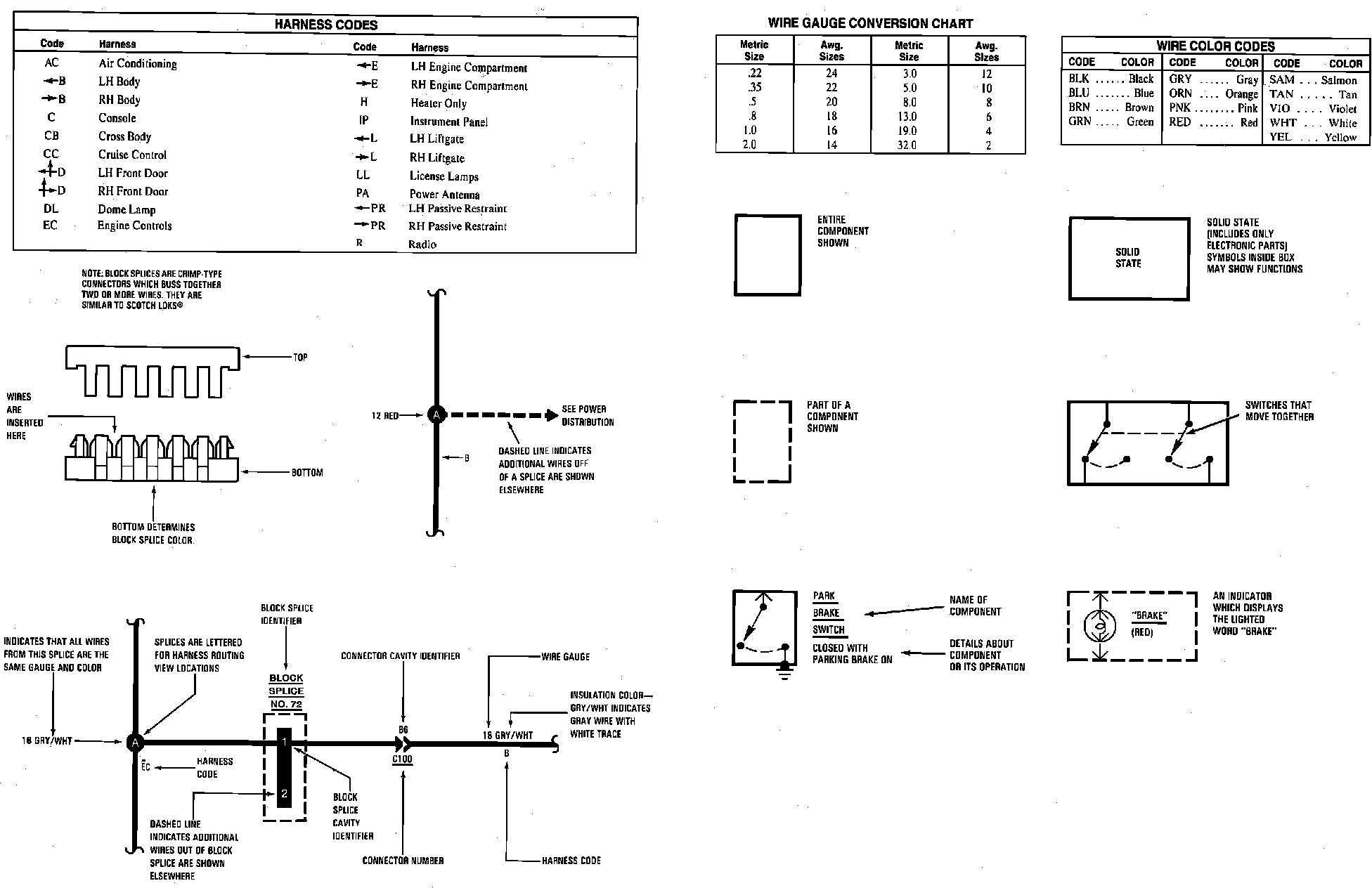

Symbol Identification:

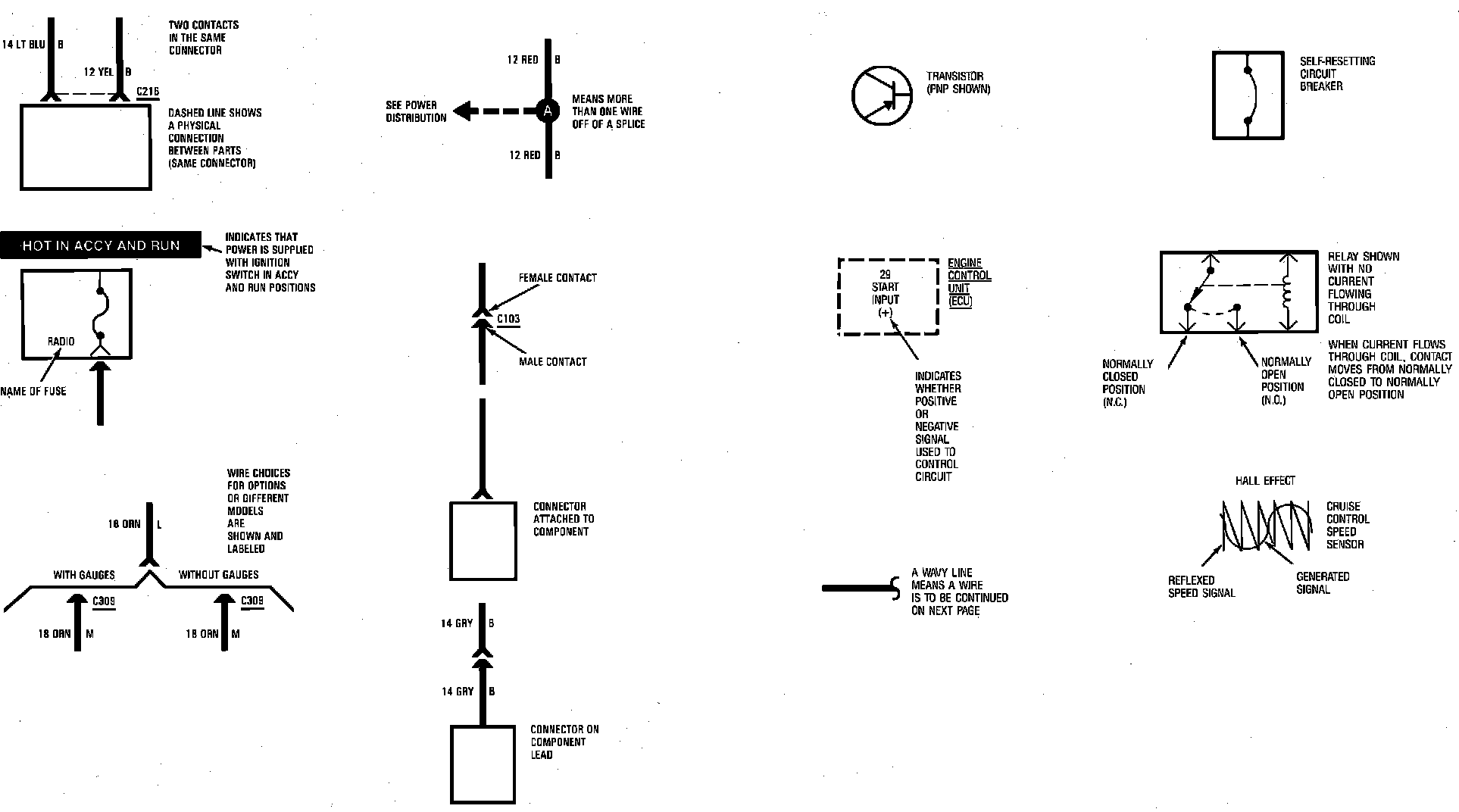

Symbol Identification:



Symbol Identification:
