Removal And Installation: Installation

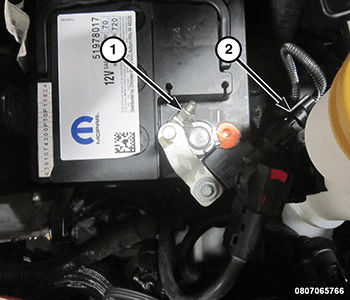

GC0171257Courtesy of CHRYSLER GROUP, LLC
  1. Connect the battery negative cable to the Intelligent Battery Sensor (IBS).
  2. Install the IBS on the negative battery post.
  3. Tighten the captive nut (1).
  4. Connect the IBS electrical harness (2) to the IBS.
