Description And Operation

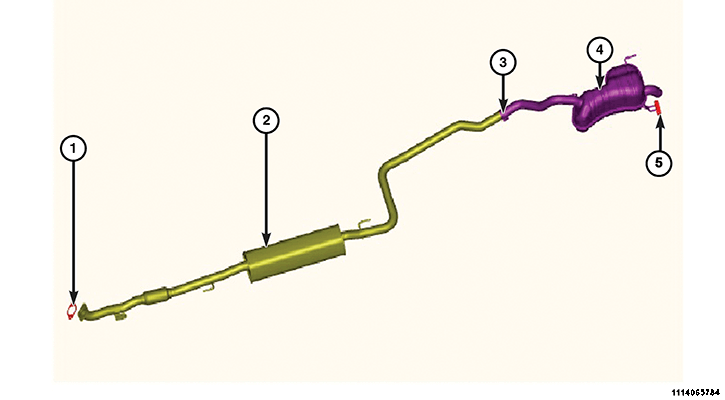

- The exhaust system on the 2.4L engine models consists of an exhaust manifold/catalytic converter assembly, exhaust pipe (2), band clamp (3), resonator/muffler assembly (4), and exhaust isolators (5). The system is separated into two service informations for service, the exhaust pipe and the resonator/muffler assembly. The upstream and downstream oxygen sensors are located in the exhaust manifold/catalytic converter assembly.
