Module, Tire Pressure Monitoring (TPM): Installation

  1. Connect the Tire Pressure Monitor (TPM) module electrical connector.

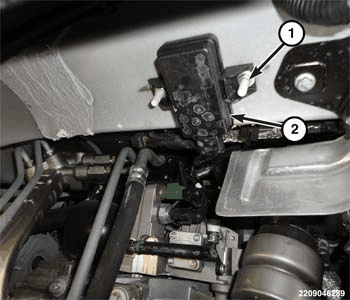

    GC0161895Courtesy of CHRYSLER GROUP, LLC
  2. Position the TPM module on the vehicle (2) and install the TPM module nuts (1).
  3. Lower the vehicle.
