Switch-Driver Door

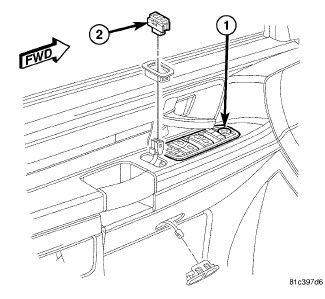

GC0124816Courtesy of CHRYSLER GROUP, LLC
  1. Connect the electrical connectors.
  2. Firmly snap the switch assembly into the door trim panel.
  3. Connect the battery negative cable.
