Sensor, Mass Airflow (MAF): Installation

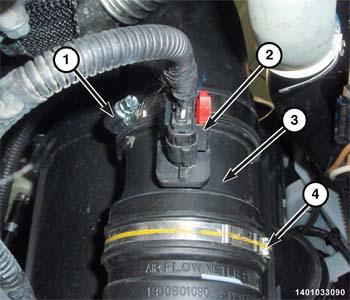

GC0162024Courtesy of CHRYSLER GROUP, LLC
  1. Install the MAF sensor (3) and securely tighten clamp (1).
  2. Connect the lower tube and install a new band clamp (4).
  3. Connect the MAF sensor wire harness connector (2).
  4. Remove support and lower the vehicle.
  5. Connect the negative battery cable.
